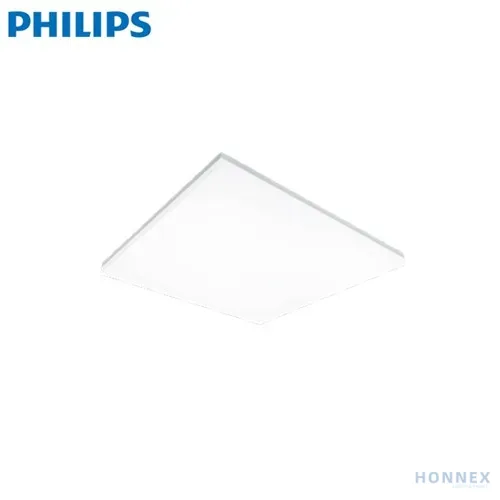

PHILIPS Frameless LED Panel Series RC468V
PHILIPS 599 × 599 mm 17 / 28 / 35 W 2,100–4,300 lm CRI 90 UGR 19–24 IP54 front 50,000 h
A 599 × 599 mm frameless panel that emits from the face and the edge, so a run of modules reads as one continuous plane of light instead of a grid of separate luminaires. 17–35 W, up to 4,300 lm at 120 lm/W, CRI 90, UGR 19–24, IP54 sealed luminous surface, in PSU, PSD (DALI) and tunable white versions. Part of the PHILIPS LED panel range for office, retail and public interiors.
Why the RC468V Reads as Architecture, Not as Fixtures
270° Side Emission
Light leaves the panel from the face and from the edge. Butt two modules together and the joint disappears — there is no dark frame to break the ceiling into squares.
120 lm/W, Above Grade 1
4,300 lm from 35 W puts the series above China’s Grade 1 efficacy threshold. On a ceiling that runs 12 hours a day, that is where the saving lands.
Glare That Scales With Output
UGR <19 at 17 W, <22 at 28 W, <24 at 35 W. Pick the lowest output that meets the illuminance target rather than defaulting to the top of the range — the 35 W module is aimed at high ceilings where the viewing angle to the panel is steep.
IP54 Sealed Light Chamber
The luminous face is sealed to IP54 — dust and splash cannot enter the chamber. IK03 impact rating and Class II construction, no earth required.
PSU, PSD or Tunable White — Choose the Control Layer
The housing, optics and dimensions are identical across all three. The difference is the driver and what the building can do with the light afterwards.
| Version | Driver & control | CCT set | Typical specification |
|---|---|---|---|
| PSU | Fixed output, switched on/off | 4000K / 5000K / 6500K | Cost-driven fit-out, corridors, back-of-house, storage |
| PSD | DALI dimmable, down to 1% | 4000K / 5000K / 6500K | Meeting rooms and open office with daylight or occupancy dimming |
| Tunable White | CCT tuning across 3000–5000K | 3000–5000K continuously | Circadian and wellness-led interiors, premium client-facing floors |
Tunable white is stocked on the 28 W module (12NC 911401904088). Interact Office Flex is available as a project driver option on selected outputs and is quoted per project rather than held as a catalogue line. Dimming performance depends on the DALI controller; for DALI-2 certification of the system, refer to the Digital Illumination Interface Alliance.
Where a Continuous Ceiling Pays Off
Premium Office
- Boardrooms and client floors where the ceiling is part of the design
- Open-plan floors with daylight dimming (PSD) or circadian control (tunable white)
- Reception areas needing an even, shadow-free wash
Specifying a full office scheme? Pair the ceiling plane with SP130S suspended linear luminaires or the SP135P / SP136P classroom solution for task-level light.

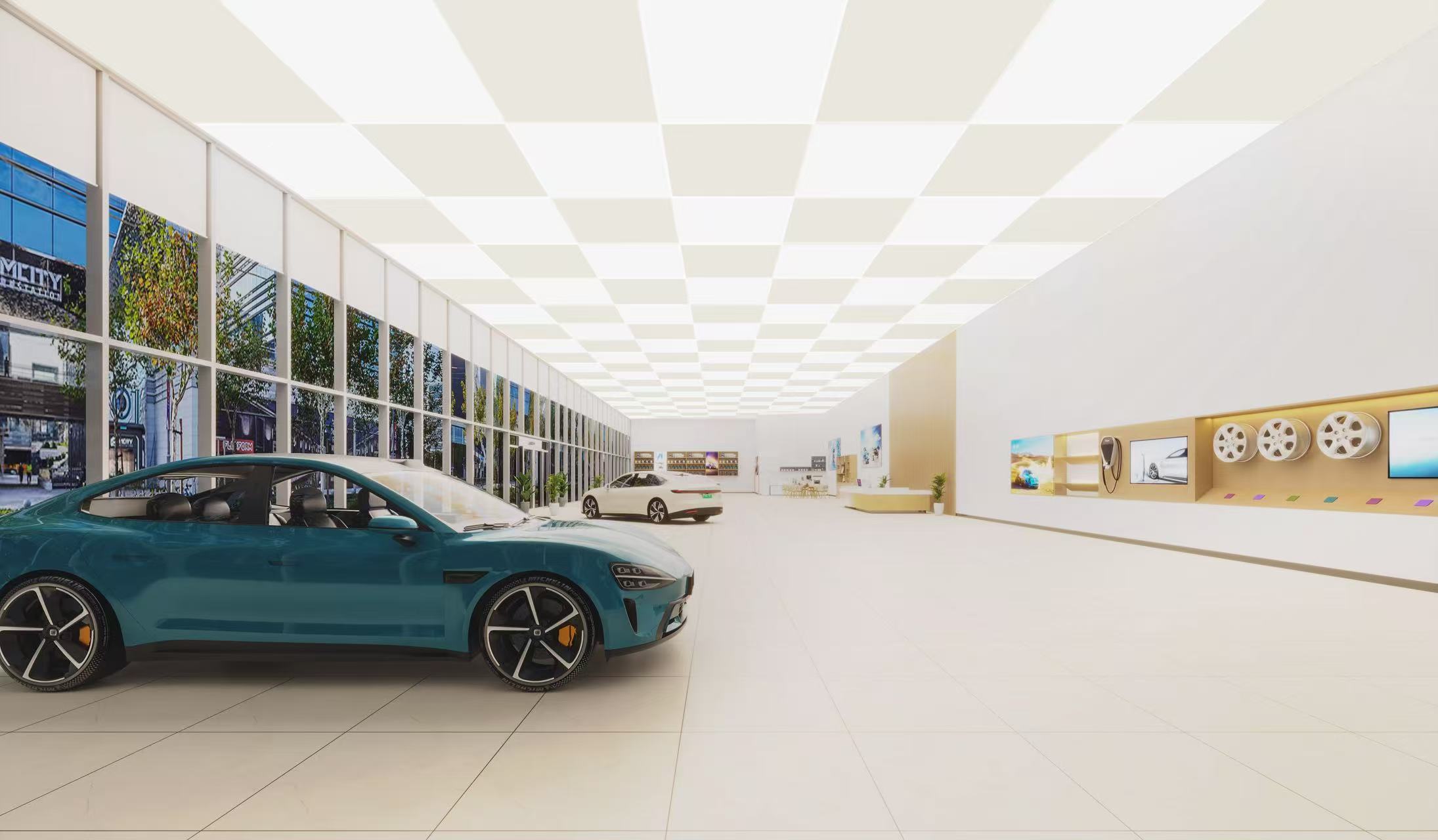

Retail & Showroom
- Continuous light planes above merchandise walls
- Linear runs along circulation routes and cash wraps
- Square compositions over display islands
Add accent layer with the RS039B slim anti-glare spotlights or the deeper RS216 recessed spotlight series.
Public & Institutional
- Halls, libraries and waiting areas
- Transport and civic interiors needing a closed, clean ceiling
- Spaces where maintenance access must stay simple
For general downlighting alongside the panel plane, see the DN350 deep recessed downlight series. For humidity or washdown zones, step up to the WT198C G3 waterproof range.
Four Ways to Mount the Same Module
The modular backplate carries all four mounting interfaces. You do not need a different luminaire for a different ceiling — you need a different accessory kit.
01
Integrated Ceiling Grid
Drops straight into a standard 600 × 600 T-bar grid. Sits flush in the tile position with no additional frame.
02
Recessed in Plasterboard
Cut a 599 × 599 mm opening. The frameless front sits level with the board, giving a true flush ceiling with no visible trim.
03
Suspended
Use the Suspension Clip kit with drop rods for exposed soffits, double-height atria and industrial ceilings.
04
Spliced & Modular
Profile Clip 4040 and CPC Strip kits lock modules edge to edge into linear runs or square compositions. This is where the 270° emission pays off.
| 12NC | Accessory kit | Contents | Used for |
|---|---|---|---|
| 911401904090 | RC468Z CPC Strip AC Kit | 8 pcs | Continuous-plane splicing with a T-bar grid |
| 911401904091 | RC468Z Profile Clip 4040 AC Kit | 16 pcs | Edge-to-edge alignment of 40 × 40 profile |
| 911401904092 | RC468Z Suspension Clip AC Kit | 16 pcs | Suspended installation on drop rods |
Electrical & installation notes
- Class II luminaire — double insulated, earth connection not required.
- Surge protection L-N 1 kV. In buildings with known switching transients, add external surge protection at the distribution board.
- Driver is external to the panel. Panel depth is 58 mm; total depth including driver stays below 70 mm, so the assembly clears shallow plenum voids.
- Ambient operating range −20 °C to +45 °C. L70B50 at 50,000 hours is rated at Ta = 25 °C — derate expected life if the plenum runs hotter.
- Body is IP20; the luminous face is IP54. Indoor dry locations only. For wet, washdown or high-humidity areas use a purpose-built IP65/IP66 luminaire instead.
Technical Specifications by Output
All three outputs share the same 599 × 599 mm housing. Values that do not change across the range are merged across the columns.
| Parameter | 17 W | 28 W | 35 W |
|---|---|---|---|
| Optical | |||
| System output | 2,100 lm | 3,500 lm | 4,300 lm |
| System efficacy | >120 lm/W | ||
| Colour rendering | CRI 90, R9 >50 | ||
| Colour consistency | SDCM <3 | ||
| CCT options | 4000K / 5000K | 4000K / 5000K / 6500K, tunable white 3000–5000K | 4000K / 5000K |
| Glare rating (UGR) | <19 | <22 | <24 |
| Blue light hazard | RG0 (exempt group) | ||
| Flicker | PstLM <0.5, SVM <0.4, MD <3.2% | ||
| Electrical | |||
| Rated power | 17 W | 28 W | 35 W |
| Input voltage | 220–240 V ~ 50/60 Hz | ||
| Power factor | >0.9 | ||
| Surge protection | L-N: 1 kV | ||
| Safety class | Class II | ||
| Mechanical & environmental | |||
| Dimensions (L × W) | 599 × 599 mm (W60L60) | ||
| Height | 58 mm panel only, <70 mm including driver | ||
| Ingress protection | IP20 body, IP54 luminous surface, IK03 | ||
| Mounting | Integrated ceiling grid, recessed, suspended, spliced | ||
| Operating temperature | −20 °C to +45 °C | ||
| Lifetime | 50,000 h L70B50 @ Ta = 25 °C | ||
| Certification | CCC | ||
Ingress protection ratings follow IEC 60529 (see the IEC 60529 standard). Glare and colour-consistency values are stated per the CIE system; for the underlying methodology see CIE. Where an external constant-voltage driver is used instead of the integrated one, see the CertaDrive SPS 24 VDC driver series.
Complete Product Lineup — 8 Ordering Codes
Five luminaires and three accessory kits. Quotations and orders are placed by 12NC — the description column is the factory description, and the suffix tells you the driver and the CCT. Each luminaire description links to its own page with the full specification for that output; the accessory kits are quoted with the luminaires and do not carry separate pages.
Luminaires 5 codes
| 12NC | Description | Driver / version | Power | Output |
|---|---|---|---|---|
| 911401904073 | RC468V LED20/950 W60L60 PSU GC | PSU | 17 W | 2,100 lm |
| 911401904070 | RC468V LED34/950 W60L60 PSU GC | PSU | 28 W | 3,500 lm |

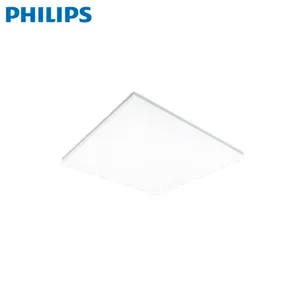

| 911401904080 | RC468V LED34/950 W60L60 PSD GC | PSD (DALI) | 28 W | 3,500 lm |
| 911401904088 | RC468V LED34/9TWH W60L60 GC | Tunable White | 28 W | 3,500 lm |
| 911401904574 | RC468X LED42/950 W60L60 FL GC | FL | 35 W | 4,300 lm |
Accessories — splicing & suspension 3 codes
| 12NC | Description | Pack | Type | Use |
|---|---|---|---|---|
| 911401904090 | RC468Z CPC Strip AC Kit (8 PCS) | 8 pcs | Splicing | Grid runs |
| 911401904091 | RC468Z Profile Clip 4040 AC Kit (16 PCS) | 16 pcs | Splicing | Edge alignment |
| 911401904092 | RC468Z Suspension Clip AC Kit (16 PCS) | 16 pcs | Suspension | Drop rods |
The 35 W column and the RC468X code describe the FL version, which is offered in 4000K and 5000K only — no 6500K, no tunable white. The three accessory kits (CPC strip, Profile Clip 4040, suspension clip) are pack-level items: they have no individual page, and are quoted against your module count rather than sold on their own.
Product Images & Photometrics
Spliced into a suspended arrayFour modules on drop rods read as a single luminous plane — the joints register as light, not as framing.
Dimensional drawing (mm)L 599 × W 599 × H 58 mm panel; under 70 mm once the external driver is mounted.
Polar intensity distribution
L.O.R. 1.00 — the polar curve is normalised to the full luminaire output, so the lobe reaches full scale at nadir.
Symmetrical distribution: the 0–180° and 90–270° planes fall on the same curve, which is what lets a run of modules read as one even plane.
Measured IES, LDT and ULD files for DIALux evo and Relux are issued with the quotation.
Symmetrical distribution: the 0–180° and 90–270° planes fall on the same curve, which is what lets a run of modules read as one even plane.
Measured IES, LDT and ULD files for DIALux evo and Relux are issued with the quotation.
The plot above shows the shape of the distribution, not measured values. We do not publish a traced picture of the curve — the photometric file carries the numbers.
Photometric dataIndicative lobe for orientation; the measured curve and the numeric file ship with the quotation.
Also from the PHILIPS Lighting Range
Frequently Asked Questions
What is the difference between RC468V PSU, PSD and tunable white?
The luminaire is physically identical. PSU is a fixed-output driver switched on and off at the wall. PSD is a DALI-dimmable driver that accepts a digital dimming signal from a lighting control system, typically for daylight linking and occupancy-based dimming. Tunable white adds a second colour channel so the CCT can be shifted continuously between 3000K and 5000K, which is what circadian or wellness-led schemes need. Tunable white is stocked on the 17 W and 28 W modules only.
What ceiling opening and depth does the RC468V need?
The module is 599 × 599 mm, which is the standard 600 × 600 ceiling module, so it drops into a T-bar grid without modification. For plasterboard, cut a 599 × 599 mm opening. Panel depth is 58 mm and total depth with the external driver stays below 70 mm, so a plenum void of roughly 90 mm is comfortable. Because the driver is external rather than integrated, the panel itself remains thin enough for shallow ceiling construction.
Which accessories do I need to splice modules into a continuous run?
Two kits cover splicing. The RC468Z CPC Strip AC Kit (12NC 911401904090, 8 pcs) is for continuous-plane splicing where the modules sit in a T-bar grid. The RC468Z Profile Clip 4040 AC Kit (12NC 911401904091, 16 pcs) aligns modules edge to edge on a 40 × 40 profile. For a suspended installation, the RC468Z Suspension Clip AC Kit (12NC 911401904092, 16 pcs) takes the drop rods. Plan the kit quantity against the number of joints, not the number of panels.
Is the glare rating low enough for office and classroom work?
It depends on the output you choose. The 17 W module is UGR <19, which sits within common office comfort limits and is fine for screen-based work at normal mounting heights. The 28 W module is UGR <22 and the 35 W FL is UGR <24; both are intended for higher ceilings where the viewing angle to the panel is steep. Specify the lowest output that meets your illuminance target rather than defaulting to the top of the range. For linear alternatives in low-glare office schemes, the MASTER LEDtube UltraEfficient T5 is the counterpart product.
How does RC468X FL differ from RC468V?
RC468X FL uses the same 599 × 599 mm platform, the same four output classes and the same housing depth, but it is listed under the RC468X model prefix with an FL configuration code and is offered in 4000K and 5000K only — no 6500K, no tunable white. It is a separate ordering family, so it should be quoted against its own 12NC list rather than mixed into an RC468V schedule. Contact us with the project specification and we will confirm the FL configuration detail against the current factory datasheet.
