Description
PHILIPS 55W ~ 75W 3800K ~ 4900K DALI 2 5-Year Warranty
PHILIPS NatureConnect Skylight LP913P with Scene Set Control
Your instant upgrade for a more pleasant place. The LP913P NatureConnect skylight is indistinguishable from a real window — it provides a daylight effect and a view to the sky, increasing the feeling of spaciousness while delivering functional lighting. Pair it with the LP912P NatureConnect Scene Set (12NC 910505103996) to unlock automatic day-rhythm scenes, relax and energy scenes, and occupancy-based energy savings.
Feature Highlights
Simulate Real Daylight
LED modules for sky, sun and daylight with tunable white 3800K-4900K, creating a daylight effect and a view to the sky that increases the feeling of spaciousness.
Human-centric Lighting
High melanopic levels with MDER up to 0.90 elevate performance and well-being. Light recipes follow the rhythm of the sun to energise or relax occupants.
Premium Color Quality
CRI >93, R9 >50, SDCM 3 for accurate colour rendering. The opal optical cover ensures uniform distribution across a wide 100° beam angle.
Smart Day-Rhythm Control
Add the LP912P Scene Set for automatic Day Rhythm plus Relax and Energy scenes, occupancy sensing and battery-free wireless scene selection.
Easy Lay-in Installation
Designed for recessed VPC lay-in into standard 600x600mm suspended ceiling grids. Ceiling cut-out 480x480mm, installation depth 170-320mm.
Built to Last
50,000 hours B50L90 lifetime (100,000h B50L80) with a 5-year warranty. IP44 bottom / IP40 top, aluminium housing in white RAL9003.
Product Gallery

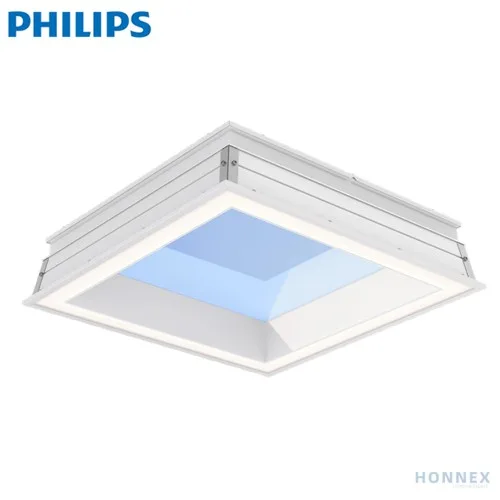

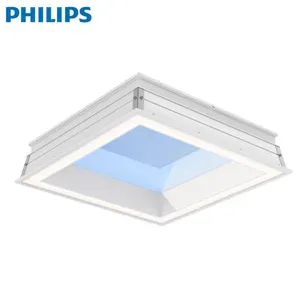

NatureConnect Skylight LP913P
Blue sky simulation panel with tunable white LED modules

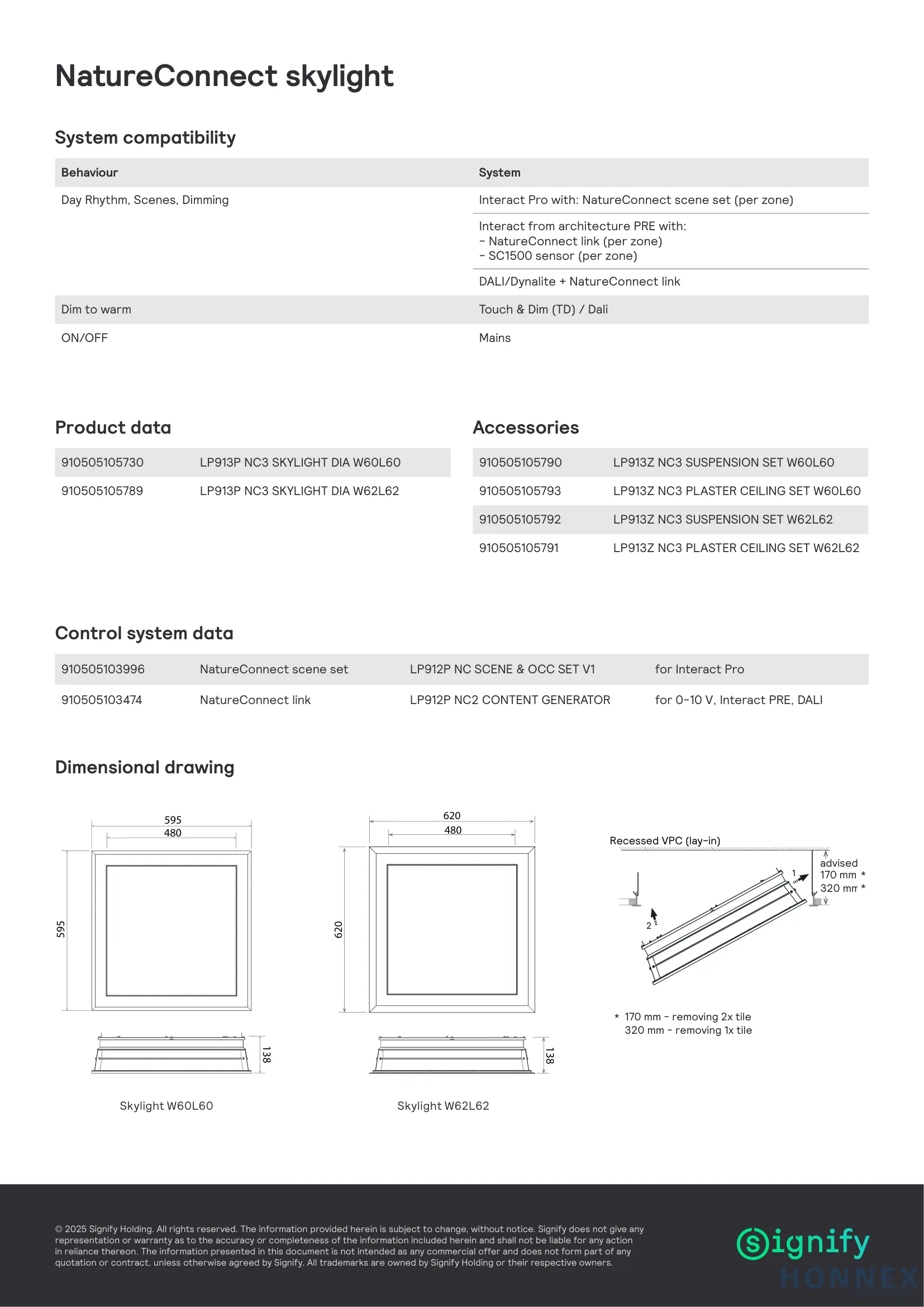

Dimensional Drawing W60L60
595x595x138mm body, 480x480mm cut-out, 170-320mm recessed depth

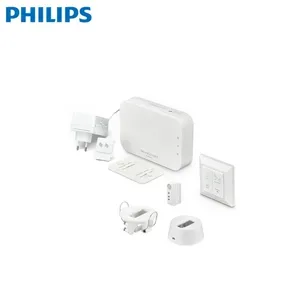

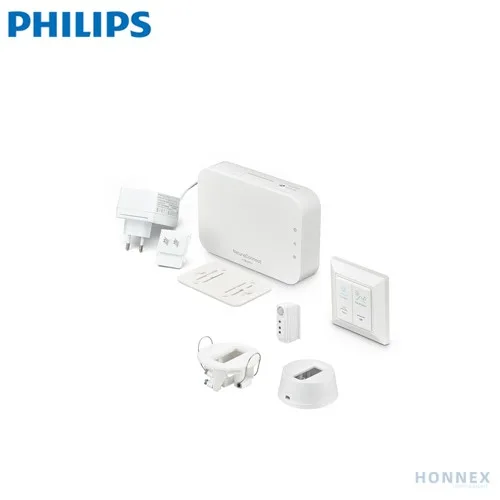

NatureConnect Scene Set LP912P
Control kit for day-rhythm lighting scenes and occupancy sensing
Application Scenarios
Office & Focus Rooms
Boost productivity and alertness with daylight-mimicking recipes. Occupancy sensing from the Scene Set dims or switches off luminaires when nobody is present.
Healthcare & Examination
CRI >93 and R9 >50 support accurate visual assessment, while natural light rhythms contribute to patient comfort and recovery.
Hospitality & Reception
Create an open, airy atmosphere that makes interiors feel larger and more welcoming in hotel lobbies and reception areas.
Meeting & Waiting Areas
The Scene Set switch lets occupants pick automatic Day Rhythm or a specific Relax / Energy scene to suit the activity at hand.
NatureConnect Scene Set LP912P — Day Rhythm Control Kit
Scene set is a kit that enables the day-rhythm lighting scene as well as the relax and energy scene in combination with NatureConnect luminaires. It gives inputs to luminaires, allows selection of the scenes and dimming light levels, plus occupancy sensing. The included NatureConnect link also lets additional DALI DT8 luminaires be synchronised with the NatureConnect lighting scenes.
Automatic Day Rhythm
Day rhythm runs automatically to ensure the right light at the right time of day, unless one of the other Light Scenes is selected by the user.
Occupancy-Based Savings
Sensors support energy savings by dimming down or turning off luminaires when no presence is detected.
Battery-Free Wireless Switch
The switch is battery free and wireless. It allows the user to choose between automatic Day Rhythm or one of the two specific natural Light Scenes.
Energise or Relax
Energize and Relax scenes tailor the environment to the user's specific activities and needs — get instant Relax or a clear energy boost for the mind.
Kit Contents (12NC 910505103996)
| Component 12NC | Description | Qty |
|---|---|---|
| 910505103474 | NatureConnect link LP912P NC2 CONTENT GENERATOR | 1 pc |
| 910505103545 | NatureConnect switch LP912P NC2 IA UID8480 Office-EU A | 1 pc |
| 913701069403 | Sensor SC200B/02 SR Sensor WH | 1 pc |
| 913713620603 | Recessed holder SA0500/05 Ind. Rec SC1xxx/SC2xxx Mnt | 1 pc |
| 913713620803 | Surface mounted holder SA0600/05 Ind. Surf Mnt SCxxxx/SNSxxx | 1 pc |
Installation & Mounting Guide
Recessed VPC (Lay-in)
The LP913P W60L60 drops into standard 600x600mm suspended ceiling grids. Remove 2 tiles for a 170mm installation depth, or 1 tile for a 320mm depth. Requires a 480x480mm ceiling cut-out.
Sensor Mounting
The Scene Set ships with both a recessed holder (SA0500/05) and a surface-mounted holder (SA0600/05), so the SC200B/02 presence sensor suits either ceiling type.
System Behaviour & Compatibility
| Behaviour | Supported System |
|---|---|
| Day Rhythm, Scenes, Dimming | Interact Pro with NatureConnect Scene Set (per zone) |
| Day Rhythm, Scenes, Dimming | Interact PRE architecture with NatureConnect link (per zone) and SC1500 sensor (per zone) |
| Dim to warm | Touch & Dim (TD) / DALI; DALI / Dynalite with NatureConnect link |
| ON/OFF | Mains |
Safety Notice: Installation must be performed by a qualified electrician. Each luminaire ships with one safety cable (1m length) which must be secured to the ceiling structure. Keep within the ambient temperature range of +10 to +35 °C and maintain adequate clearance for heat dissipation.
Technical Specifications
| Parameter | LP913P NC3 SKYLIGHT DIA W60L60 |
|---|---|
| Optical | |
| Light Source | LED modules for sky, sun and daylight |
| Light Source Colour | Tunable white for daylight and sun; blue for sky |
| CCT | 3800 K to 4900 K |
| CRI | > 93 |
| R9 | > 50 |
| Colour Point SDCM | 3 |
| Luminaire Beam Angle | 100° |
| UGR (power-on default) | 19 |
| MDER | up to 0.90 |
| Luminous Flux (default / max) | 5100 lm / 6600 lm |
| Efficacy (power on default) | 93 lm/W |
| Electrical | |
| Power (default / max) | 55 W / 75 W |
| Input Voltage | 220-240 V |
| Input Frequency | 50 to 60 Hz |
| Input Current | 0.33 A |
| Inrush Current | 24.0 A |
| Inrush Time | 220 us |
| Power Factor (min) | 0.9 |
| Surge Protection | 1 kV DM and 2 kV CM |
| Driver | Included, power supply unit with DALI 2 interface |
| Control Interface | DALI 2 compliant (DT6), Touch & Dim (TD) |
| Connector | Wieland GST18i5 male + female |
| Products per MCB (type B 16A) | ≤ 20 |
| Mechanical | |
| Housing Material | Aluminium |
| Housing Color | White RAL9003 |
| Optical Cover / Lens | Polystyrene and Polycarbonate, Opal |
| Dimensions (L × W × H) | 595 × 595 × 138 mm |
| Recessed Cut-out | 480 × 480 mm |
| Recessed Depth | 170 - 320 mm |
| Net Weight | 7.0 kg |
| Safety Cable | 1 pc (cable length 1 m) |
| Ingress Protection | IP44 (bottom), IP40 (top) |
| Mech. Impact Protection | IK02 |
| Ambient Temperature | +10 to +35 °C |
| Storage Temperature | -40 to +60 °C |
| Glow-wire Test | 650 °C |
| Lifetime & Certification | |
| Lifetime | 50 khrs B50L90 / 100 khrs B50L80 |
| Warranty | 5 years |
| CE / ENEC Mark | Yes / Yes |
| Awards | iF DESIGN AWARD 2025, reddot winner 2025, CIBSE, SPARK |
| Scene Set LP912P (12NC 910505103996) | |
| Sets per Lighting Zone | 1x set per zone |
| Max Luminaires per Set | 64x NatureConnect skylight / 10x mini island / 3x large island / 4x small island (max 64 DALI addresses) |
| Power Supply Input Voltage | 100 - 240 V AC |
| Supported Behaviour | Day Rhythm, Scenes, Dimming, Dim to warm, ON/OFF |
Complete Product Lineup
NatureConnect Skylight
| 12NC | Description | Power | L × W × H | Output |
|---|---|---|---|---|
| 910505105730 | LP913P NC3 SKYLIGHT DIA W60L60 | 55W / 75W | 595×595×138mm | 5100lm / 6600lm |
Scene Set & Occupancy Control
| 12NC | Description | Input Voltage | Max Load per Set | Application |
|---|---|---|---|---|
| 910505103996 | LP912P NC SCENE & OCC SET V1 | 100-240V AC | 64x skylight (max 64 DALI) | Day Rhythm / Scenes / Dimming |
Also from PHILIPS Lighting Range
Frequently Asked Questions
What is NatureConnect skylight and how does it simulate daylight?
The LP913P uses LED modules for sky, sun and daylight with tunable white technology (3800K-4900K) to create a daylight effect and a view to the sky. The blue sky mimics daylight by using light recipes with high melanopic levels (MDER up to 0.90), improving well-being and performance while still delivering functional lighting.
What is the NatureConnect Scene Set and do I need it?
The Scene Set (LP912P, 12NC 910505103996) is a control kit that enables day-rhythm lighting scenes, the relax scene and the energy scene, plus occupancy sensing. One set covers one lighting zone with up to 64 NatureConnect skylights (max 64 DALI addresses). You need it for automatic day rhythm and scene selection, the luminaire also works standalone with basic DALI 2 and Touch & Dim control.
What control systems are compatible with LP913P?
LP913P is DALI 2 compliant (DT6) and supports Touch & Dim (TD) plus ON/OFF via mains. For advanced day-rhythm scene control, pair it with the Scene Set LP912P on Interact Pro. Interact PRE architecture is supported using the NatureConnect link (910505103474) with an SC1500 sensor per zone.
What mounting options are available for the skylight?
The W60L60 is designed for recessed VPC lay-in into standard 600x600mm suspended ceiling grids. The ceiling cut-out is 480x480mm and the installation depth is 170mm to 320mm depending on the ceiling construction. Each luminaire ships with one safety cable (1m length).
What is the warranty and lifetime of LP913P?
LP913P carries a 5-year warranty. The rated lifetime is 50,000 hours (B50L90) or 100,000 hours (B50L80), backed by CE and ENEC certifications. The luminaire has received the iF DESIGN AWARD 2025, reddot winner 2025, CIBSE and SPARK awards.
