Description
PHILIPS 12NC 910505105730 55W ~ 75W 3800K ~ 4900K 600 x 600 mm DALI 2
PHILIPS NatureConnect Skylight LP913P NC3 SKYLIGHT DIA W60L60
The 600x600mm NatureConnect skylight that is indistinguishable from a real window, bringing a daylight effect and a view to the sky into a standard suspended ceiling grid. 55 W default / 75 W maximum, 5100 lm to 6600 lm, tunable white 3800K-4900K. Part of the NatureConnect Skylight Series LP913P.
Product Details
- 12NC
- 910505105730
- Description
- LP913P NC3 SKYLIGHT DIA W60L60
- Rated Power
- 55 W default / 75 W max
- Luminous Flux
- 5100 lm / 6600 lm
- CCT
- 3800 K - 4900 K tunable white
- CRI / R9
- >93 / >50
- Beam Angle
- 100°
- Dimensions
- 595 × 595 × 138 mm
- Recessed Cut-out
- 480 × 480 mm
- Recessed Depth
- 170 - 320 mm
- Net Weight
- 7.0 kg
- Ingress Protection
- IP44 bottom / IP40 top
- Control Interface
- DALI 2 (DT6) / Touch & Dim
- Warranty
- 5 years
Installation & Wiring
600 x 600 Lay-in
Replaces one 600x600mm ceiling tile in a standard suspended grid (recessed VPC). Cut-out 480x480mm, body 595x595x138mm, net weight 7.0 kg.
One or Two Tile Depth
Remove two tiles to work in the 170mm installation depth, or one tile where a 320mm depth is available. Check the plenum before ordering.
Safety Cable
Each luminaire ships with one 1m safety cable. It must be anchored to the ceiling structure independently of the grid before the luminaire is released.
Wiring Configurations
| Configuration | Requirement |
|---|---|
| ON / OFF | Mains 220-240 V ~ 50/60 Hz, 0.33 A input current. Wieland GST18i5 male + female connector supplied for through-wiring. |
| Touch & Dim (TD) | Dim-to-warm via mains-borne touch dim signal. No extra control cabling needed beyond the supply. |
| DALI 2 dimming | DALI 2 compliant (DT6) driver included. Max 20 luminaires per MCB type B 16A; observe 24.0 A inrush for 220 us when sizing breakers. |
| Day rhythm / scenes | Add the NatureConnect Scene Set LP912P (12NC 910505103996), one set per lighting zone, up to 64 skylights per set. |
Safety Notice: Installation must be carried out by a qualified electrician. Surge protection is 1 kV differential mode and 2 kV common mode, so a building-level SPD is still recommended on exposed sites. Keep ambient temperature within +10 to +35 °C and leave clearance for heat dissipation.
Technical Specifications
| Parameter | LP913P NC3 SKYLIGHT DIA W60L60 |
|---|---|
| Optical | |
| Light Source | LED modules for sky, sun and daylight |
| Light Source Colour | Tunable white for daylight and sun; blue for sky |
| CCT | 3800 K to 4900 K |
| CRI | > 93 |
| R9 | > 50 |
| Colour Point SDCM | 3 |
| Luminaire Beam Angle | 100° |
| UGR (power-on default) | 19 |
| MDER | up to 0.90 |
| Luminous Flux (default / max) | 5100 lm / 6600 lm |
| Efficacy (power on default) | 93 lm/W |
| Electrical | |
| Power (default / max) | 55 W / 75 W |
| Input Voltage | 220-240 V |
| Input Frequency | 50 to 60 Hz |
| Input Current | 0.33 A |
| Inrush Current / Time | 24.0 A / 220 us |
| Power Factor (min) | 0.9 |
| Surge Protection | 1 kV DM and 2 kV CM |
| Driver | Included, power supply unit with DALI 2 interface |
| Control Interface | DALI 2 compliant (DT6), Touch & Dim (TD) |
| Connector | Wieland GST18i5 male + female |
| Products per MCB (type B 16A) | ≤ 20 |
| Mechanical | |
| Housing Material | Aluminium |
| Housing Color | White RAL9003 |
| Optical Cover / Lens | Polystyrene and Polycarbonate, Opal |
| Dimensions (L × W × H) | 595 × 595 × 138 mm |
| Recessed Cut-out | 480 × 480 mm |
| Recessed Depth | 170 - 320 mm |
| Net Weight | 7.0 kg |
| Safety Cable | 1 pc (cable length 1 m) |
| Ingress Protection | IP44 (bottom), IP40 (top) |
| Mech. Impact Protection | IK02 |
| Ambient Temperature | +10 to +35 °C |
| Storage Temperature | -40 to +60 °C |
| Glow-wire Test | 650 °C |
| Lifetime & Certification | |
| Lifetime | 50 khrs B50L90 / 100 khrs B50L80 |
| Warranty | 5 years |
| CE / ENEC Mark | Yes / Yes |
| Awards | iF DESIGN AWARD 2025, reddot winner 2025, CIBSE, SPARK |
Product Gallery

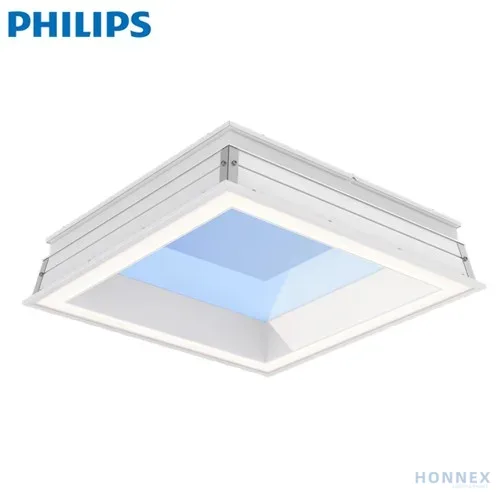

NatureConnect Skylight LP913P
Blue sky simulation panel with tunable white LED modules
Dimensional Drawing W60L60
595x595x138mm body, 480x480mm cut-out, 170-320mm recessed depth
Optional Scene Set LP912P
Control kit for day-rhythm lighting scenes and occupancy sensing
Complete Product Lineup
NatureConnect Skylight
| 12NC | Description | Power | L × W × H | Output |
|---|---|---|---|---|
| 910505105730 | LP913P NC3 SKYLIGHT DIA W60L60 (this item) | 55W / 75W | 595×595×138mm | 5100lm / 6600lm |
View the full range on the NatureConnect Skylight Series LP913P overview.
Scene Set & Occupancy Control
| 12NC | Description | Input Voltage | Max Load per Set | Application |
|---|---|---|---|---|
| 910505103996 | LP912P NC SCENE & OCC SET V1 | 100-240V AC | 64x skylight (max 64 DALI) | Day Rhythm / Scenes / Dimming |
Also from PHILIPS Lighting Range
Frequently Asked Questions
What ceiling grid does the LP913P W60L60 fit into?
The W60L60 is a 595x595mm module for recessed VPC lay-in into a standard 600x600mm suspended ceiling grid, so it replaces one ceiling tile. The ceiling cut-out is 480x480mm, the recessed depth is 170mm with two tiles removed or 320mm with one tile removed, and the body height is 138mm.
Why does the same luminaire list both 55 W and 75 W?
There is only one SKU. The 55 W figure is the power-on default light recipe that produces 5100 lm at 93 lm/W. The 75 W figure is the maximum the LED modules draw in the brighter daylight scenes, producing up to 6600 lm. Output is set by the light recipe or the DALI / Touch & Dim level, not by a different product code.
How many LP913P luminaires fit on one circuit or one Scene Set?
A maximum of 20 luminaires may be connected per MCB (type B 16A) at 0.33 A input current each. For coordinated scene control, one NatureConnect Scene Set LP912P (12NC 910505103996) covers one lighting zone with up to 64 skylights, limited by 64 DALI addresses per set.
