Description
Why Choose BY518P SE
150lm/W Efficacy
25% improvement over BY288 (120lm/W). Significant energy cost savings.
IP65 / IK06 Rated
Full dust & water-jet protection, far superior to BY288's IP20 rating.
90° Wide Beam
Broader coverage than BY288's 50°, fewer fixtures needed per area.
50,000hrs Lifetime
L70B50 at 35°C — over a decade of reliable industrial operation.
BY518P SE vs BY288P — The Upgrade
| Feature | BY288P | BY518P SE |
|---|---|---|
| System Power | 30W / 50W / 75W | 30.5W / 44W / 70W |
| Lumen Output | 3,600lm / 6,000lm / 9,000lm | 5,000lm / 7,000lm / 10,500lm |
| System Efficacy | 120 lm/W | 150 lm/W |
| Beam Angle (without reflector) | 50° | 90° WB (Wide Beam) |
| IP Rating | IP20 | IP65 |
| Housing Diameter | D150mm / D250mm | D273mm |
BY518P SE vs BY698P — Positioning
| Feature | BY518P SE | BY698P |
|---|---|---|
| System Efficacy | 150 lm/W | 170 lm/W |
| Lifetime | 50,000 hours | 75,000 hours |
| Warranty | 3 years | 5 years |
| Low-Bay Options | Yes (LED50/70/105) | No |
| Beam Options | Wide Beam | Wide / Narrow Beam |
| Reflector Compatible | Yes | No |
| Driver Housing | Round | Elongated |
| Housing Color | Light Grey RAL7035 | Dark Grey |

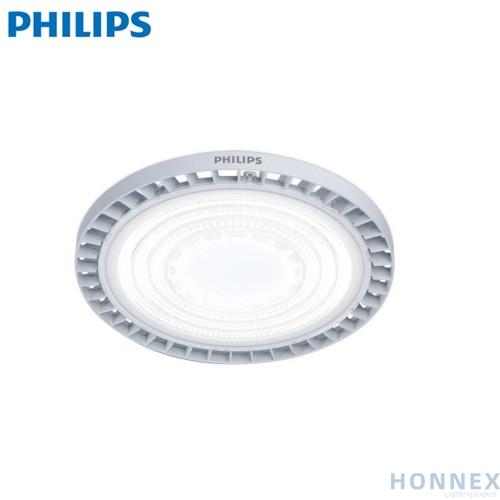

Product Images
Technical Specifications
| Parameter | LED50 | LED70 | LED105 | LED140 | LED200 | LED245 | LED290 |
|---|---|---|---|---|---|---|---|
| Optical | |||||||
| Lumen Output | 5,000 lm | 7,000 lm | 10,500 lm | 14,000 lm | 20,000 lm | 24,500 lm | 29,000 lm |
| System Power | 30.5W | 44W | 70W | 98W | 135W | 160W | 192W |
| System Efficacy | ~150 lm/W | ||||||
| CCT | NW 4000K / CW 6500K | ||||||
| CRI | > 80 | ||||||
| Color Consistency | 5 SDCM | ||||||
| Beam Angle | WB 90° ±5° | ||||||
| Flicker-Free | MD < 30%; Pst ≤ 0.5; SVM ≤ 1 | ||||||
| Lumen Tolerance | ±10% | ||||||
| Electrical | |||||||
| Input Voltage | 220–240V, 50/60 Hz | ||||||
| Power Factor | ≥ 0.95 | ||||||
| Surge Protection | 2KV / 4KV | ||||||
| THD | < 20% (≤140W) / < 15% (≥200W) | ||||||
| Classification | Class I | ||||||
| Dimming | No (Fixed Output) | ||||||
| Cable | 0.3m Flying Leads | ||||||
| Mechanical & Environmental | |||||||
| IP Rating | IP65 | ||||||
| IK Rating | IK06 | ||||||
| Lifetime | 50Khrs L70B50 @35°C | ||||||
| Operating Temp | -30°C to +45°C (Ta35°C) | ||||||
| Housing Color | RAL7035 Light Grey | ||||||
| Housing Material | Die-cast Aluminum | ||||||
| Salt Spray | 300 hours | ||||||
| Packaging | 2-in-1 Industrial Pack | ||||||
Physical Dimensions by Power Range
| Power Range | Diameter (Φ) | Height | Net Weight |
|---|---|---|---|
| LED50 / LED70 / LED105 / LED140 | Φ273 mm | 93 mm | 1.27 kg |
| LED200 | Φ319 mm | 93 mm | 1.89 kg |
| LED245 / LED290 | Φ355 mm | 93 mm | 2.58 kg |
Ordering Guide — 14 SKUs
All models: 2-in-1 industrial packaging. Hook is NOT included by default (order separately: 12NC 911401644207).
| 12NC | Description | Power | CCT | Lumens | Size | Qty/CTN |
|---|---|---|---|---|---|---|
| LED50 — 30.5W / 5,000lm / Φ273mm / 1.27kg (Low-Bay, replaces BY288 30W/3600lm) | ||||||
| 911401588745 | BY518P SE LED50/NW PSU WB | 30.5W | 4000K NW | 5,000 lm | Φ273mm | 2 |
| 911401588845 | BY518P SE LED50/CW PSU WB | 30.5W | 6500K CW | 5,000 lm | Φ273mm | 2 |
| LED70 — 44W / 7,000lm / Φ273mm / 1.27kg (Low-Bay, replaces BY288 50W/6000lm) | ||||||
| 911401588945 | BY518P SE LED70/NW PSU WB | 44W | 4000K NW | 7,000 lm | Φ273mm | 2 |
| 911401589045 | BY518P SE LED70/CW PSU WB | 44W | 6500K CW | 7,000 lm | Φ273mm | 2 |
| LED105 — 70W / 10,500lm / Φ273mm / 1.27kg (Low-Bay, replaces BY288 75W/9000lm) | ||||||
| 911401676808 | BY518P SE LED105/NW PSU WB GC | 70W | 4000K NW | 10,500 lm | Φ273mm | 2 |
| 911401676908 | BY518P SE LED105/CW PSU WB GC | 70W | 6500K CW | 10,500 lm | Φ273mm | 2 |
| LED140 — 98W / 14,000lm / Φ273mm / 1.27kg | ||||||
| 911401677008 | BY518P SE LED140/NW PSU WB GC | 98W | 4000K NW | 14,000 lm | Φ273mm | 2 |
| 911401677108 | BY518P SE LED140/CW PSU WB GC | 98W | 6500K CW | 14,000 lm | Φ273mm | 2 |
| LED200 — 135W / 20,000lm / Φ319mm / 1.89kg | ||||||
| 911401677208 | BY518P SE LED200/NW PSU WB GC | 135W | 4000K NW | 20,000 lm | Φ319mm | 2 |
| 911401677308 | BY518P SE LED200/CW PSU WB GC | 135W | 6500K CW | 20,000 lm | Φ319mm | 2 |
| LED245 — 160W / 24,500lm / Φ355mm / 2.58kg | ||||||
| 911401677408 | BY518P SE LED245/NW PSU WB GC | 160W | 4000K NW | 24,500 lm | Φ355mm | 2 |
| 911401677508 | BY518P SE LED245/CW PSU WB GC | 160W | 6500K CW | 24,500 lm | Φ355mm | 2 |
| LED290 — 192W / 29,000lm / Φ355mm / 2.58kg | ||||||
| 911401677608 | BY518P SE LED290/NW PSU WB GC | 192W | 4000K NW | 29,000 lm | Φ355mm | 2 |
| 911401677708 | BY518P SE LED290/CW PSU WB GC | 192W | 6500K CW | 29,000 lm | Φ355mm | 2 |
Optional Narrow-Beam Reflectors
Add PHILIPS original aluminum reflectors to control beam from 90° to ~80°, reduce UGR glare by ~7–8, and add the PHILIPS logo for a professional finish.
Beam Control
Narrows 90° to ~80° for precise distribution
Glare Reduction
UGR lowered by ~7–8 for improved comfort
High-Space Ready
Optimized for larger spaces with higher ceilings
PHILIPS Branding
Adds the PHILIPS logo for professional appearance
| 12NC | Description | Product Code | Compatible Models | Size (Φ × H) |
|---|---|---|---|---|
| 911401642507 | Small Reflector | BY238Z R-AL S-NB G2 | LED50 / LED70 / LED105 / LED140 | Φ474 × 141mm |
| 911401642607 | Medium Reflector | BY238Z R-AL M-NB G2 | LED200 | Φ543 × 153mm |
| 911401642707 | Large Reflector | BY238Z R-AL L-NB G2 | LED245 / LED290 | Φ633 × 179mm |
Mounting Accessories
BY518P SE does NOT include a hook by default. The following accessories must be ordered separately.
| 12NC | Accessory | Product Code | Notes |
|---|---|---|---|
| 911401644207 | Suspension Hook | BY238Z hook | Universal BY698P hook, G 1/2" thread |
| 911401683208 | Mounting Bracket | BY518Z SE Mounting Bracket | Surface/wall mounting, RAL7035 finish, fits all wattages |
Mounting Options
Pipe Mount
G 1/2" threaded hub for standard pipe installation. Hook sold separately.
Suspension Chain
Flexible chain suspension for adjustable height. User-supplied chain and fasteners.
Bracket Mount
Surface or wall bracket (12NC: 911401683208). Fits all wattages.
Safety String (Required)
Must always be installed. Ø5mm hole provided on housing. User-supplied.
Typical Applications
General Manufacturing
Consistent, glare-free illumination for production lines and assembly areas.
Warehouses & Logistics
High-bay lighting for rack storage, picking zones, and distribution hubs.
Large Spaces & Sports Venues
Uniform high-ceiling coverage. Add reflectors for optimized glare control.
Heavy Industry
IP65/IK06 rated for dusty, humid, and demanding industrial environments.
Also from PHILIPS Industrial Lighting Range
PHILIPS BVP150 G4 LED Floodlight
10W–200W outdoor LED floodlight, IP65/IK06. 4th-gen design with anti-condensation breather.
PHILIPS BVP171 LED Floodlight
30W compact LED floodlight, grey housing, WB optics. CQC certified.
PHILIPS WT068C LED Batten
56W LED linear batten, 1500mm, NW 4000K. Ideal for warehouses & parking.
PHILIPS BRP392 LED Street Light
90W LED street light, NW 4000K. DM MP1 optics for road lighting.
Frequently Asked Questions
How does BY518P SE compare to BY288P? Should I upgrade?
BY518P SE is the direct upgrade replacement for BY288P:
- 25% Higher Efficacy: 150lm/W vs 120lm/W
- Higher Output: 5000/7000/10500lm vs 3600/6000/9000lm
- IP65 vs IP20: Full dust & water-jet protection
- 90° vs 50° Beam: Wider coverage, fewer fixtures needed
Strongly recommended for both new projects and BY288 retrofits.
Does BY518P SE include a hook? What accessories are required?
No. Hook is NOT included. Order separately: 12NC 911401644207.
- Pipe Mount: Hook required (G 1/2" thread)
- Suspension Chain: User-supplied
- Bracket Mount: Bracket required (12NC: 911401683208)
Safety string must always be installed (user-supplied, Ø5mm hole provided).
What are the benefits of adding a reflector? How to choose?
- Beam Control: 90° → ~80° for precise distribution
- Glare Reduction: UGR lowered by 7–8
- Professional Finish: PHILIPS logo branding
Small (911401642507): LED50-140 / Medium (911401642607): LED200 / Large (911401642707): LED245-290.
Can BY518P SE be used outdoors?
No. Indoor use only. Not for outdoor flood/tunnel, cold storage <-20°C, or high-vibration/wind. See our PHILIPS LED Floodlight range for outdoor needs.
How do I select power level? What certifications and warranty?
Selection: LED50 (30.5W) low-bay/aisles · LED70-140 (44-98W) mid-height 4-8m · LED200-290 (135-192W) high-bay 8-15m+.
Certifications: CCC / CB / EMC / CE. Warranty: 3 years. Lifetime: 50,000hrs L70B50 @35°C. Contact sales@honnexlighting.com for Dialux simulations and quotations.
