Description
Product Details
- 12NC Order Code
- 911401677708
- Product Description

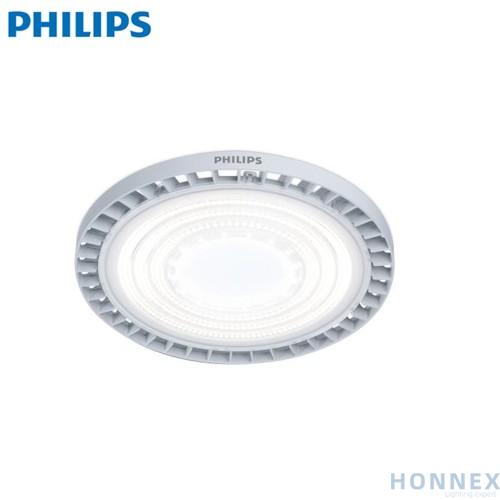

- BY518P SE LED290/CW PSU WB GC
- System Power
- 192W
- Lumen Output
- 29,000 lm
- Color Temperature
- 6500K CW
- Housing Size
- Φ355mm
- Net Weight
- 2.58 kg
- Qty / CTN
- 2
Product Images
Physical Dimensions
| Power Range | Diameter (Φ) | Height | Net Weight |
|---|---|---|---|
| LED50 / LED70 / LED105 / LED140 | Φ273 mm | 93 mm | 1.27 kg |
| LED200 | Φ319 mm | 93 mm | 1.89 kg |
| LED245 / LED290 | Φ355 mm | 93 mm | 2.58 kg |
Highlighted row = this SKU (BY518P SE LED290/CW PSU WB GC).
Technical Specifications
| Optical | |
| Lumen Output | 29,000 lm |
| System Efficacy | ~150 lm/W |
| CCT | 6500K CW |
| CRI | > 80 |
| Color Consistency | 5 SDCM |
| Beam Angle | WB 90° ±5° |
| Flicker-Free | MD < 30%; Pst ≤ 0.5; SVM ≤ 1 |
| Lumen Tolerance | ±10% |
| Electrical | |
| System Power | 192W |
| Input Voltage | 220–240V, 50/60 Hz |
| Power Factor | ≥ 0.95 |
| Surge Protection | 2KV / 4KV |
| THD | < 20% (≤140W) / < 15% (≥200W) |
| Classification | Class I |
| Dimming | No (Fixed Output) |
| Cable | 0.3m Flying Leads |
| Mechanical & Environmental | |
| Housing Size | Φ355mm |
| Net Weight | 2.58 kg |
| IP Rating | IP65 |
| IK Rating | IK06 |
| Lifetime | 50Khrs L70B50 @35°C |
| Operating Temp | -30°C to +45°C (Ta35°C) |
| Housing Color | RAL7035 Light Grey |
| Housing Material | Die-cast Aluminum |
| Salt Spray | 300 hours |
| Packaging | 2-in-1 Industrial Pack |
Complete Product Lineup — 14 SKUs
All models: 2-in-1 industrial packaging. Hook NOT included by default. ← Back to Series Overview
| 12NC | Description | Power | CCT | Lumens | Size | Qty/CTN |
|---|---|---|---|---|---|---|
| LED50 — 30.5W / 5,000lm / Φ273mm / 1.27kg (Low-Bay, replaces BY288 30W/3600lm) | ||||||
| 911401588745 | BY518P SE LED50/NW PSU WB | 30.5W | 4000K NW | 5,000 lm | Φ273mm | 2 |
| 911401588845 | BY518P SE LED50/CW PSU WB | 30.5W | 6500K CW | 5,000 lm | Φ273mm | 2 |
| LED70 — 44W / 7,000lm / Φ273mm / 1.27kg (Low-Bay, replaces BY288 50W/6000lm) | ||||||
| 911401588945 | BY518P SE LED70/NW PSU WB | 44W | 4000K NW | 7,000 lm | Φ273mm | 2 |
| 911401589045 | BY518P SE LED70/CW PSU WB | 44W | 6500K CW | 7,000 lm | Φ273mm | 2 |
| LED105 — 70W / 10,500lm / Φ273mm / 1.27kg (Low-Bay, replaces BY288 75W/9000lm) | ||||||
| 911401676808 | BY518P SE LED105/NW PSU WB GC | 70W | 4000K NW | 10,500 lm | Φ273mm | 2 |
| 911401676908 | BY518P SE LED105/CW PSU WB GC | 70W | 6500K CW | 10,500 lm | Φ273mm | 2 |
| LED140 — 98W / 14,000lm / Φ273mm / 1.27kg | ||||||
| 911401677008 | BY518P SE LED140/NW PSU WB GC | 98W | 4000K NW | 14,000 lm | Φ273mm | 2 |
| 911401677108 | BY518P SE LED140/CW PSU WB GC | 98W | 6500K CW | 14,000 lm | Φ273mm | 2 |
| LED200 — 135W / 20,000lm / Φ319mm / 1.89kg | ||||||
| 911401677208 | BY518P SE LED200/NW PSU WB GC | 135W | 4000K NW | 20,000 lm | Φ319mm | 2 |
| 911401677308 | BY518P SE LED200/CW PSU WB GC | 135W | 6500K CW | 20,000 lm | Φ319mm | 2 |
| LED245 — 160W / 24,500lm / Φ355mm / 2.58kg | ||||||
| 911401677408 | BY518P SE LED245/NW PSU WB GC | 160W | 4000K NW | 24,500 lm | Φ355mm | 2 |
| 911401677508 | BY518P SE LED245/CW PSU WB GC | 160W | 6500K CW | 24,500 lm | Φ355mm | 2 |
| LED290 — 192W / 29,000lm / Φ355mm / 2.58kg | ||||||
| 911401677608 | BY518P SE LED290/NW PSU WB GC | 192W | 4000K NW | 29,000 lm | Φ355mm | 2 |
| 911401677708 | BY518P SE LED290/CW PSU WB GC | 192W | 6500K CW | 29,000 lm | Φ355mm | 2 |
Mounting Accessories
BY518P SE does NOT include a hook by default. Accessories must be ordered separately.
| 12NC | Accessory | Product Code | Notes |
|---|---|---|---|
| 911401644207 | Suspension Hook | BY238Z hook | Universal BY698P hook, G 1/2" thread |
| 911401683208 | Mounting Bracket | BY518Z SE Mounting Bracket | Surface/wall mounting, RAL7035 finish |
Also from PHILIPS Industrial Lighting Range
PHILIPS BVP150 G4 LED Floodlight
10W–200W outdoor LED floodlight, IP65/IK06. 4th-gen design.
PHILIPS BVP171 LED Floodlight
30W compact LED floodlight, grey housing, WB optics.
PHILIPS WT068C LED Batten
56W LED linear batten, 1500mm, NW 4000K.
PHILIPS BRP392 LED Street Light
90W LED street light, NW 4000K. DM MP1 optics.
Frequently Asked Questions
What accessories do I need for this SKU?
The hook is NOT included. Order 12NC 911401644207 for pipe mounting, or 12NC 911401683208 for bracket mounting. A safety string (user-supplied) must always be installed.
How does this compare to other power levels?
This is the LED290 variant at 192W / 29,000 lm. For smaller spaces, choose LED50 (30.5W/5,000lm). For larger high-bay applications, consider LED200–LED290 (135–192W). See the series overview page for full comparison.
What certifications and warranty apply?
Certifications: CCC / CB / EMC / CE. Warranty: 3-year Signify manufacturer warranty. Lifetime: 50,000hrs L70B50 @35°C. Contact sales@honnexlighting.com for quotations.
