PHILIPS BVP150 G4 LED Floodlight Series

Rated Power & Voltage: 10W-200W / 220-240V ~ 50/60Hz

CCT & Colour Rendering: 3000-6500K / CRI>80 / SDCM<6

Beam & Ingress: SWB 110° / IP65 / IK06

Lifetime & Certification: 20,000h L70B50 / CQC, CE, CB

Description

PHILIPS BVP150 G4 LED Floodlight Series

PHILIPS 10W–200W 100 lm/W IP65 / IK06 3000K / 4000K / 6500K CQC · CE · CB 24 SKUs

Fourth-generation SmartBright LED floodlight with die-cast aluminium housing, DoB driver-on-board design and integrated breather valve. Eight power ratings from 10W to 200W, each available in warm, neutral and cool white.

Product Images

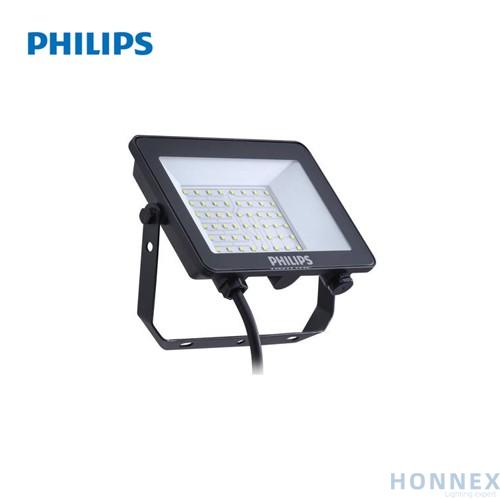

PHILIPS BVP150 G4 LED floodlight front view

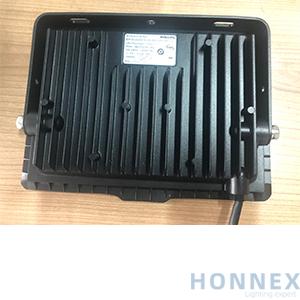

PHILIPS BVP150 G4 LED floodlight side view

PHILIPS BVP150 G4 LED floodlight mounting bracket

Why BVP150 G4

Fourth-generation mechanical design, identical photometric performance

100 lm/W Efficacy

Constant 100 lm/W across the full 10W–200W range, up to 20,000 lm output for large-area illumination.

IP65 / IK06 Rated

Dust-tight, jet-proof and 1J impact resistant. Operates from -40°C to +50°C in harsh outdoor environments.

Breather Valve

Integrated pressure-equalising valve drains moisture drawn in by siphoning and prevents internal condensation.

Compact Die-Cast Body

Up to 10% smaller than G3 with RAL9011 die-cast aluminium and tempered glass, plus printed internal branding.

Technical Specifications

Shared values apply to all power ratings; differing values listed per wattage

Parameter	10W	20W	30W	50W	70W	100W	150W	200W
Optical
Luminous Flux (4000/6500K)	1,000 lm	2,000 lm	3,000 lm	5,000 lm	7,000 lm	10,000 lm	15,000 lm	20,000 lm
Luminous Efficacy	100 lm/W
Colour Temperature	3000K (WW) / 4000K (NW) / 6500K (CW)
Colour Rendering Index	CRI ≥80
SDCM	≤6
Beam Angle	SWB 110° ±10°
Electrical
Input Voltage	220–240V ~ 50/60Hz
LED Driver	Driver on Board (DoB)
Power Factor	≥0.9
THD	<20%
Surge Protection	2 kV				4 kV
Insulation Class	Class I
Mechanical
Housing L1×W1×H	90×65×24	115×85×23	165×110×23	180×125×26	230×170×25.7	260×200×25.7	330×250×25.7	400×280×25.4
Overall L2×W2×H	104×99×24	129×121×23	182×143×23	196×166×26	249×216×25.7	281×254×28.7	357×312×30.7	429×338×30.4
Housing Material	Die-cast aluminium, RAL9011, tempered glass
IP / IK Rating	IP65 / IK06
Operating Temperature	-40°C to +50°C
Lifetime	20,000 h L70B50 @25°C
Qty per Carton	36	36	24	24	12	12	6	6

Complete Product Lineup (24 SKUs)

Click any description to open the SKU detail page

12NC	Description	Power	CCT	Qty/CTN
911401860388	BVP150 LED10/WW PSU 10W SWB G4 CN	10W	3000K (WW)	36
911401860488	BVP150 LED10/NW PSU 10W SWB G4 CN	10W	4000K (NW)	36
911401860588	BVP150 LED10/CW PSU 10W SWB G4 CN	10W	6500K (CW)	36
911401860688	BVP150 LED20/WW PSU 20W SWB G4 CN	20W	3000K (WW)	36
911401860788	BVP150 LED20/NW PSU 20W SWB G4 CN	20W	4000K (NW)	36
911401860888	BVP150 LED20/CW PSU 20W SWB G4 CN	20W	6500K (CW)	36
911401860988	BVP150 LED30/WW PSU 30W SWB G4 CN	30W	3000K (WW)	24
911401861088	BVP150 LED30/NW PSU 30W SWB G4 CN	30W	4000K (NW)	24
911401861188	BVP150 LED30/CW PSU 30W SWB G4 CN	30W	6500K (CW)	24
911401861288	BVP150 LED50/WW PSU 50W SWB G4 CN	50W	3000K (WW)	24
911401861388	BVP150 LED50/NW PSU 50W SWB G4 CN	50W	4000K (NW)	24
911401861488	BVP150 LED50/CW PSU 50W SWB G4 CN	50W	6500K (CW)	24
911401861588	BVP150 LED70/WW PSU 70W SWB G4 CN	70W	3000K (WW)	12
911401861688	BVP150 LED70/NW PSU 70W SWB G4 CN	70W	4000K (NW)	12
911401861788	BVP150 LED70/CW PSU 70W SWB G4 CN	70W	6500K (CW)	12
911401861888	BVP150 LED100/WW PSU 100W SWB G4 CN	100W	3000K (WW)	12
911401861988	BVP150 LED100/NW PSU 100W SWB G4 CN	100W	4000K (NW)	12
911401862088	BVP150 LED100/CW PSU 100W SWB G4 CN	100W	6500K (CW)	12
911401862188	BVP150 LED150/WW PSU 150W SWB G4 CN	150W	3000K (WW)	6
911401862288	BVP150 LED150/NW PSU 150W SWB G4 CN	150W	4000K (NW)	6
911401862388	BVP150 LED150/CW PSU 150W SWB G4 CN	150W	6500K (CW)	6
911401862488	BVP150 LED200/WW PSU 200W SWB G4 CN	200W	3000K (WW)	6
911401862588	BVP150 LED200/NW PSU 200W SWB G4 CN	200W	4000K (NW)	6
911401862688	BVP150 LED200/CW PSU 200W SWB G4 CN	200W	6500K (CW)	6

Colour Temperature: WW = 3000K Warm White | NW = 4000K Neutral White | CW = 6500K Cool White

BVP150 G4 vs G3 — What's Changed?

Performance remains identical; the differences are mechanical

Feature	BVP150 G3	BVP150 G4
Luminous Efficacy	100 lm/W	100 lm/W ✓
IP / IK Rating	IP65 / IK06	IP65 / IK06 ✓
Housing Dimensions (10W)	97×68×26 mm	90×65×24 mm ↓10%
Cable Gland	Standard	Redesigned IP seal ↑
Breather Valve	No	Yes — anti-condensation ✓
Internal Branding	No	PHILIPS logo printed ✓
Mounting Bracket	Standard	Standard hex wrench ✓
Cable Design	Standard	Reduced siphoning risk ✓

Note: BVP150 G4 and G3 share identical electrical and photometric performance. G4 improvements focus on mechanical design, compactness and anti-counterfeiting.

Also from PHILIPS Lighting Range

Explore other PHILIPS professional luminaires supplied by Honnex Lighting

Frequently Asked Questions

What is the difference between BVP150 G4 and G3?

BVP150 G4 and G3 share identical electrical and photometric performance. The G4 introduces a more compact housing (up to 10% smaller), a redesigned cable gland for better IP sealing, an integrated breather valve to stop condensation, printed internal PHILIPS branding against counterfeiting, and updated cable routing that reduces siphoning risk.

Which colour temperature should I choose?

3000K Warm White suits residential, hospitality and decorative facades. 4000K Neutral White is the general-purpose choice for commercial yards, car parks and retail exteriors. 6500K Cool White delivers maximum perceived brightness for industrial sites, security lighting and port or logistics areas.

Is BVP150 G4 suitable for outdoor use in extreme weather?

Yes. The luminaire is IP65 rated (dust-tight and jet-proof) with IK06 impact resistance and operates from -40°C to +50°C. The breather valve equalises internal pressure and expels moisture drawn in through siphoning, which prevents condensation and lens fogging over repeated thermal cycles.

How many SKUs are in the BVP150 G4 range?

Twenty-four. Eight power ratings (10W, 20W, 30W, 50W, 70W, 100W, 150W and 200W) are each offered in 3000K, 4000K and 6500K, giving 24 order codes. Every code shares the same 100 lm/W efficacy, SWB 110° beam and IP65/IK06 rating.

Can I replace an old BVP150 G3 with the G4 version?

BVP150 G4 is a direct performance replacement for G3, but housing dimensions and mounting bracket hole positions differ slightly. Review the dimension columns in the specification table above before reusing existing brackets, or drill to the G4 hole pattern listed in the installation guide.
