Description
PHILIPS Solar Product Management
PHILIPS BVC010 LED Solar Floodlight Series
An all-in-one solar-powered LED floodlight range from PHILIPS — 7 lumen packages (600 to 6000 lm), 3 CCTs, IP65 weatherproof housing, LiFePO4 battery, Monocrystalline solar panel and remote control. 100% off-grid, dusk-to-dawn automatic, no electrician required.
All-in-One Solar
7 Lumen Packages
3 CCTs · 6500K Std
IP65 · LiFePO4
CE · 1 Year Warranty
Feature Highlights
All-in-One Solar Design
Built-in high-efficiency Monocrystalline silicon solar panel with 5-meter pre-wired cable — no grid connection required.
7 Lumen Packages
From 600 lm up to 6000 lm, covering residential, security, signage and small commercial applications.
3 CCTs, 6500K Standard
3000K / 4000K / 6500K options with the 6500K version as standard stocked SKU; CRI ≥ 70.
IP65 Outdoor-Rated
Fully plastic, weather-resistant housing with IP65 ingress protection; IK-class for general outdoor use.
LiFePO4 Battery
Long-life Lithium Iron Phosphate battery from 3.2V 4AH to 3.2V 16AH depending on lumen package.
≥ 165 lm/W Efficiency
High luminous efficacy delivers bright light with low power draw; LED power scales from 3.6W to 36.3W.
Remote Control Modes
Included remote supports ON / OFF / AUTO / 3H / 5H / 8H / FULL / PARTIAL working modes.
Battery Status LED
Visual charging / discharging battery-level indicator on the fixture for at-a-glance status.
Product Gallery

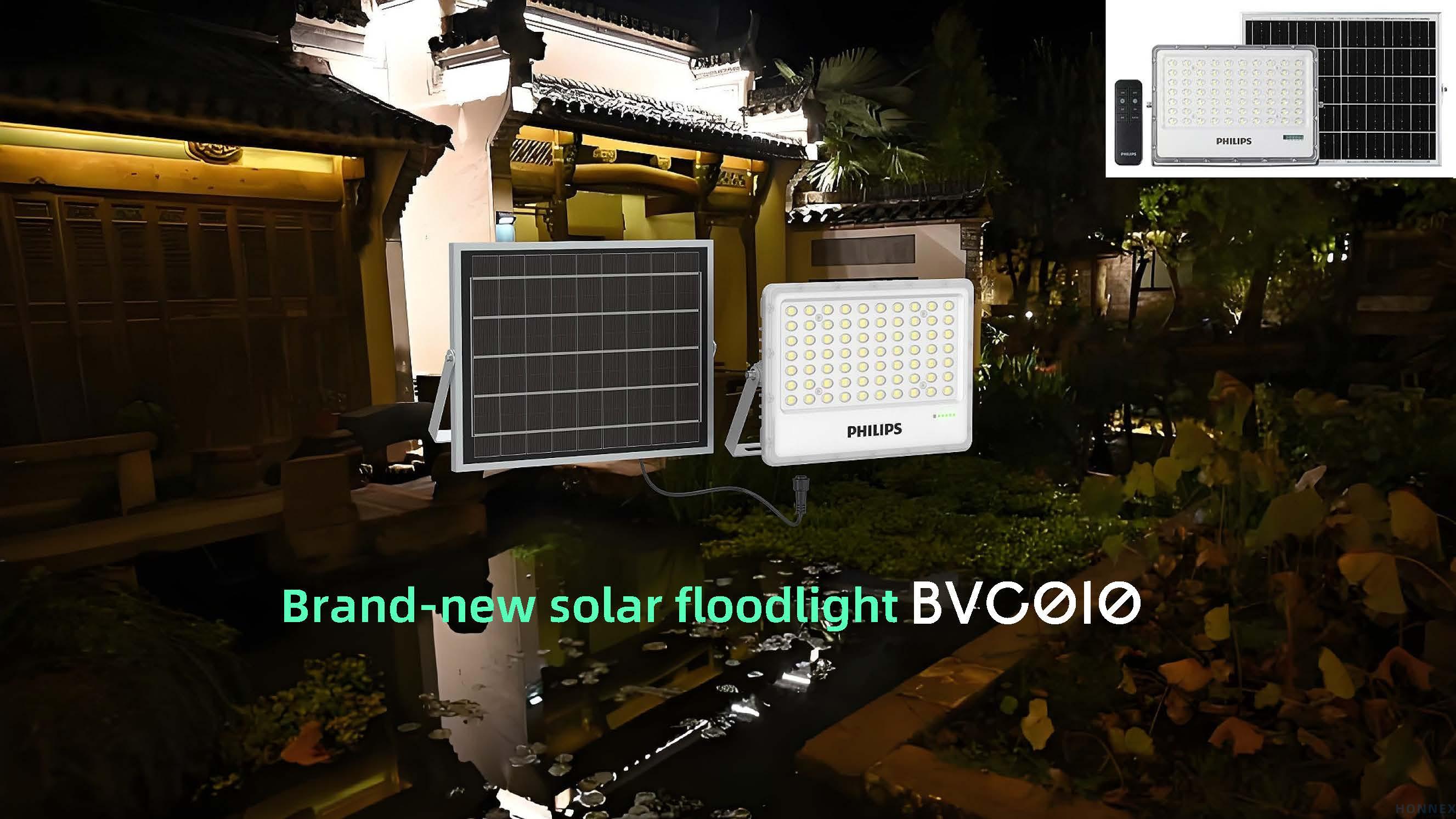

Night-Time Application — Solar Floodlight, Panel and Remote Controller
Hero shot of the BVC010 lighting up a traditional courtyard at night. The complete kit includes the LED floodlight, a Monocrystalline solar panel and an IR remote controller — all working together off-grid from dusk to dawn.

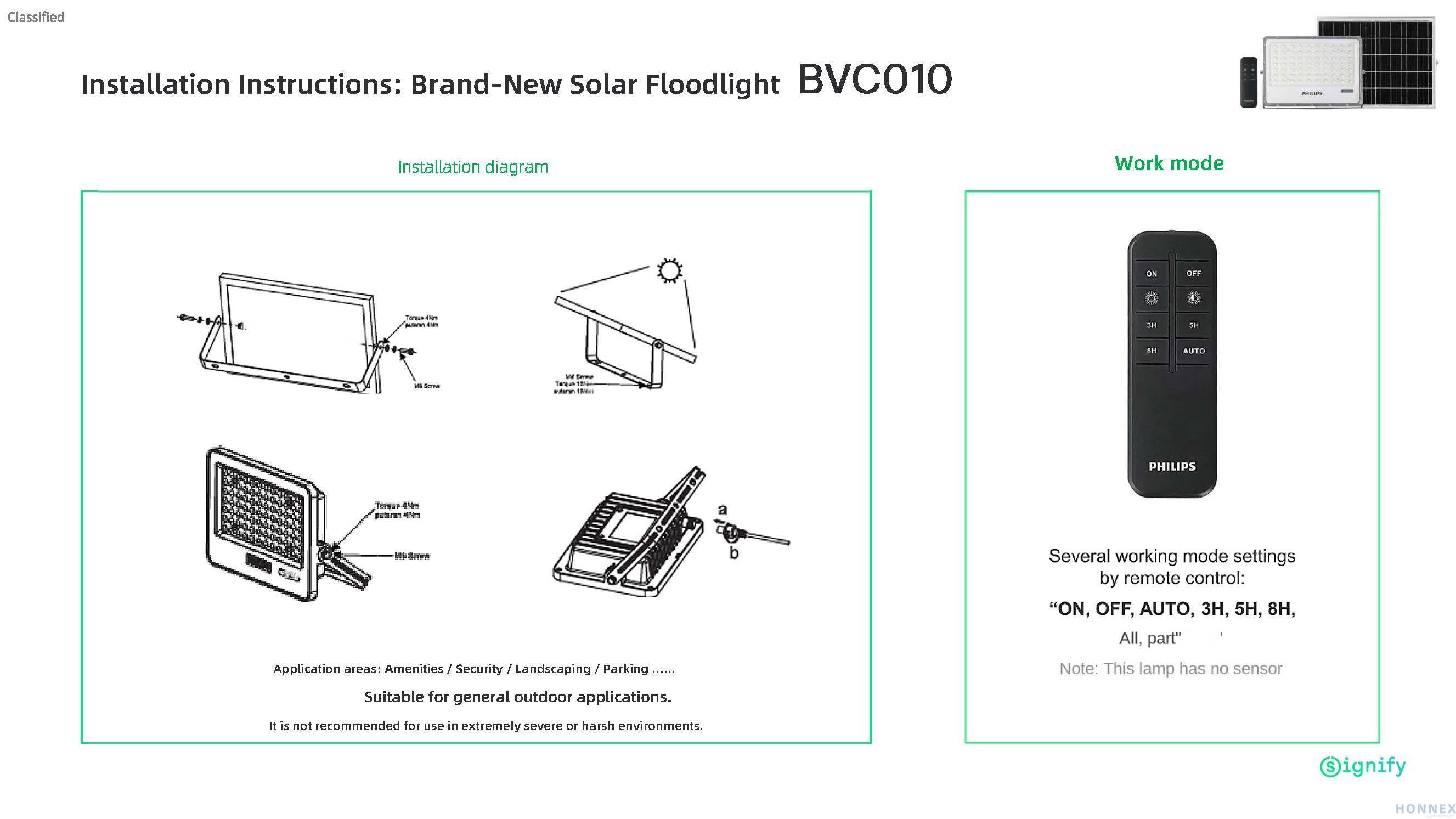

Installation Instructions & Remote Control Work Modes
Mount the solar panel at 45–55° for optimal charging. Use M6 / 1/4"-20UNC screws with the integrated U-bracket for wall or surface mounting. The PHILIPS IR remote supports ON, OFF, AUTO, 3H, 5H, 8H, All and Part modes. Note: the lamp has no built-in motion sensor.

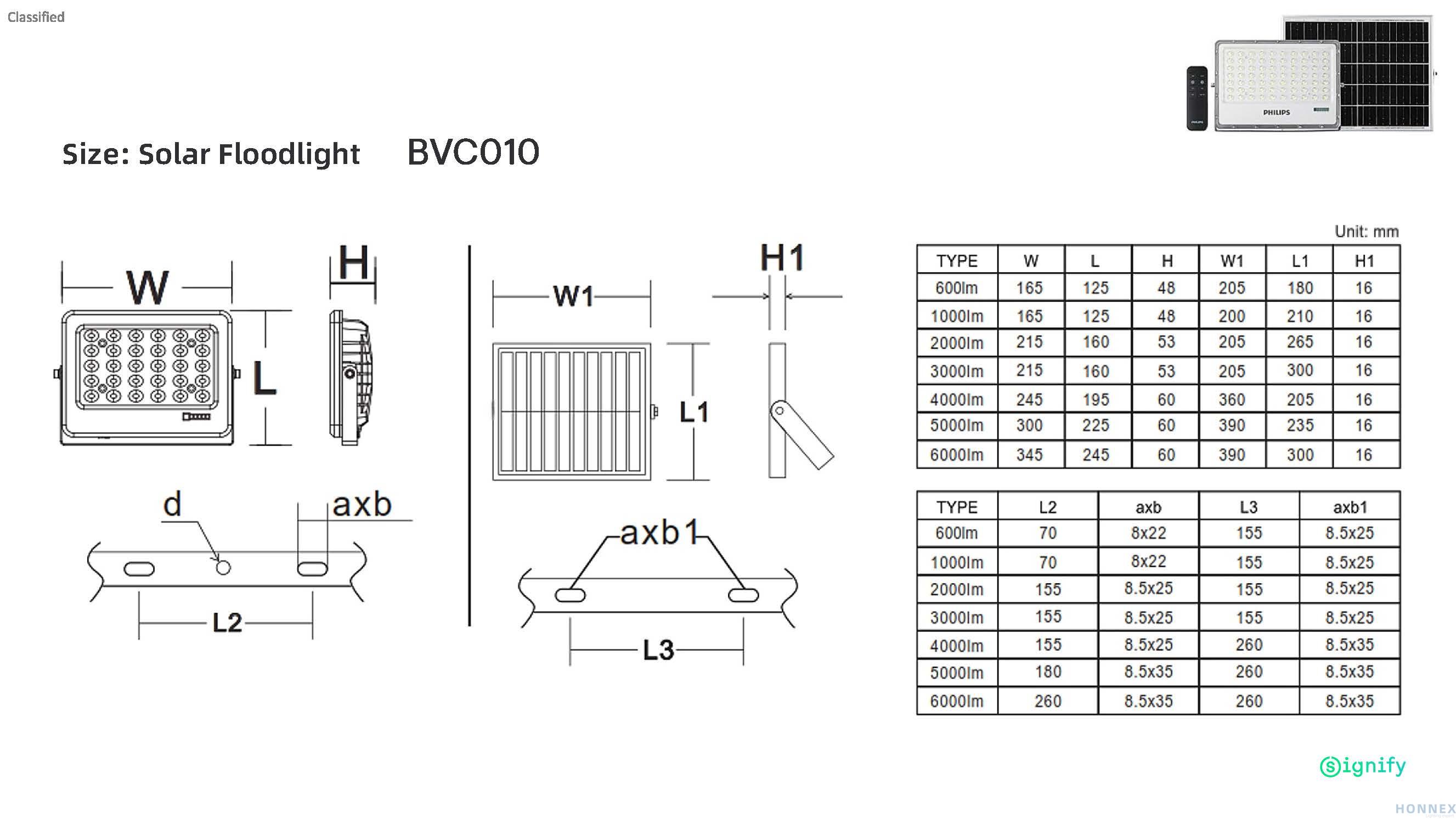

Dimensional Drawings — All 7 Lumen Packages (600–6000 lm)
Detailed dimensions for the luminaire (W × L × H) and solar panel (W1 × L1 × H1), plus bracket mounting hole spacings (L2 / L3, axb / axb1) for every SKU from 600 lm up to 6000 lm. Unit: mm.
Retail Color Box Packaging — Dieline & Finished Shelf Box
Full dieline showing the front panel (PHILIPS Essential SmartBright Solar Flood Light), back panel (specifications, application scenes, certifications) and side panels, together with the finished shelf-ready color box. Each set includes one BVC010 luminaire and one Monocrystalline solar panel.
Actual Product Photos
Real product shots of the PHILIPS BVC010 Solar Floodlight — retail packaging, monocrystalline solar panel, complete kit with IR remote controller, and die-cast housing details.
Retail Color Box Packaging (Dieline)

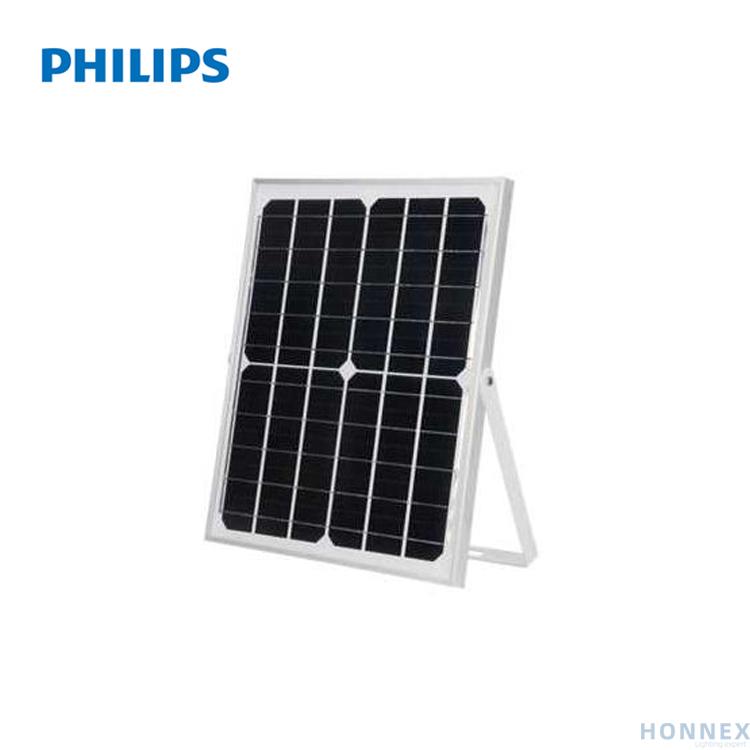

Monocrystalline Solar Panel

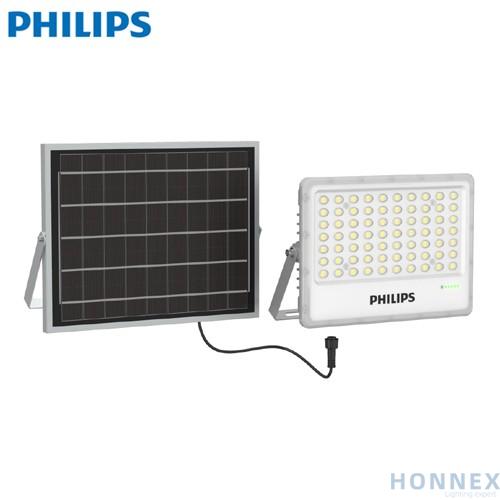

Complete Kit with IR Remote

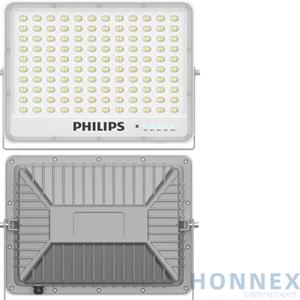

Housing Front & Rear
Technical Specifications
Complete specification table for all 7 lumen packages in the BVC010 Solar Floodlight series. Values are identical for parameters shared across the range (e.g. CRI, IP rating, beam angle, housing material).
| Parameter | BVC010 LED6/765 | BVC010 LED10/765 | BVC010 LED20/765 | BVC010 LED30/765 | BVC010 LED40/765 | BVC010 LED50/765 | BVC010 LED60/765 |
|---|---|---|---|---|---|---|---|
| Optical | |||||||
| Lumen Output | 600 lm | 1000 lm | 2000 lm | 3000 lm | 4000 lm | 5000 lm | 6000 lm |
| CCT (Standard SKU) | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K |
| CCT Options | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K |
| CRI | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 |
| Luminous Efficacy | ≥ 165 lm/W | ≥ 165 lm/W | ≥ 165 lm/W | ≥ 165 lm/W | ≥ 165 lm/W | ≥ 165 lm/W | ≥ 165 lm/W |
| Beam Angle | 110°–120° | 110°–120° | 110°–120° | 110°–120° | 110°–120° | 110°–120° | 110°–120° |
| Electrical & Solar | |||||||
| LED Power | 3.6W | 6.1W | 12.1W | 18.2W | 24.2W | 30.3W | 36.3W |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Capacity | 3.2V 4AH | 3.2V 4AH | 3.2V 5AH | 3.2V 8AH | 3.2V 12AH | 3.2V 12AH | 3.2V 16AH |
| Solar Panel | 5W 5V | 6W 5V | 8W 5V | 10W 5V | 12W 5V | 15W 5V | 20W 5V |
| Solar Cell Type | Monocrystalline silicon | Monocrystalline silicon | Monocrystalline silicon | Monocrystalline silicon | Monocrystalline silicon | Monocrystalline silicon | Monocrystalline silicon |
| Cable & Connector | 5 m pre-wired with plug | 5 m pre-wired with plug | 5 m pre-wired with plug | 5 m pre-wired with plug | 5 m pre-wired with plug | 5 m pre-wired with plug | 5 m pre-wired with plug |
| Mechanical & Environmental | |||||||
| Fixture Size (W×L×H mm) | 165*125*48mm | 165*125*48mm | 215*160*53mm | 215*160*53mm | 245*195*60mm | 300*225*60mm | 345*245*60mm |
| Solar Panel Size (W×L mm) | 205*180mm | 200*210mm | 205*265mm | 205*300mm | 360*205mm | 390*235mm | 390*300mm |
| Net Weight | 1.20 kg | 1.25 kg | 1.55 kg | 1.65 kg | 2.10 kg | 2.65 kg | 3.05 kg |
| Housing Material | Plastic (PC) | Plastic (PC) | Plastic (PC) | Plastic (PC) | Plastic (PC) | Plastic (PC) | Plastic (PC) |
| Housing Colour | Cool Gray | Cool Gray | Cool Gray | Cool Gray | Cool Gray | Cool Gray | Cool Gray |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | 0 °C – 45 °C | 0 °C – 45 °C | 0 °C – 45 °C | 0 °C – 45 °C | 0 °C – 45 °C | 0 °C – 45 °C | 0 °C – 45 °C |
| Warranty | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year |
New Dimming Profile & Remote Control
The BVC010 series ships with an optimised dimming schedule that maximises battery runtime. The fixture starts at full output and gradually steps down through the night, finishing in a low-output period until dawn. The included remote control supports ON / OFF / AUTO / 3H / 5H / 8H and FULL / PARTIAL working modes.
Note: The 600 lm and 1000 lm SKUs share one dimming schedule; 2000 lm – 6000 lm SKUs share a longer-output schedule because of larger battery capacity. Both are detailed below.
| Period | % Claimed Lumen Output | Duration (h) | Duration (min) | Notes |
|---|---|---|---|---|
| New Dimming Profile — BVC010 600 / 1000 lm (fully charged battery) | ||||
| 1 | 100% | 0.08 | 5 min | — |
| 2 | 75% | 0.17 | 10 min | — |
| 3 | 45% | 0.17 | 10 min | — |
| 4 | 30% | 0.17 | 10 min | — |
| 5 | 25% | 0.50 | 30 min | — |
| 6 | 10% | 3.00 | 180 min | — |
| 7 | 6% | 8.5 or till dawn | 510 min or till dawn | — |
| New Dimming Profile — BVC010 2000 / 3000 / 4000 / 5000 / 6000 lm (fully charged battery) | ||||
| 1 | 100% | 0.17 | 10 min | — |
| 2 | 70% | 0.17 | 10 min | — |
| 3 | 50% | 0.17 | 10 min | — |
| 4 | 30% | 0.50 | 30 min | — |
| 5 | 15% | 3.00 | 180 min | — |
| 6 | 8% | 8.5 or till dawn | 510 min or till dawn | — |
Application Scenarios & Installation Notes
The BVC010 Solar Floodlight is designed for general outdoor use. Below are the most common applications and a summary of installation best practices drawn from the official product manual.
Recommended Applications
- Residential yards, gardens and driveways
- Security lighting for small commercial properties
- Signage and billboard illumination
- Parking lots, pathways and landscape lighting
- Facilities and off-grid outdoor areas
Installation Do's
- Install in locations with direct, unobstructed sunlight
- Keep the solar panel free of shade from trees / buildings / walls
- No external electrical wiring required — 100% solar
- Use the 5 m pre-wired cable to position the panel optimally
- Mount the luminaire on a wall or fixed surface (not on a pole)
Installation Don'ts
- Do not install near strong ambient light sources at night
- Do not mount on poles (not rated for pole installation)
- Avoid extreme environments < 0 °C or > 45 °C — battery capacity reduces
- Do not let the product sit uncharged for > 11 months (LiFePO4 self-discharge)
- Do not attempt to replace internal LED, panel, battery or controller
Important: The light source, solar panel, cable, battery, controller/sensor and all other components of BVC010 are non-replaceable. When the product reaches end of life, please replace the entire unit. Dispose of the LiFePO4 battery in accordance with local regulations.
Complete Product Lineup
All 7 stockable 12NC codes for the BVC010 Solar Floodlight range. All SKUs are 6500K, CRI ≥ 70, IP65, LiFePO4 battery, 1-year warranty. Click any description to open the dedicated product page with full specifications, dimensions and ordering information.
| 12NC | Description | Key Specs |
|---|---|---|
| 911401847803 | BVC010 LED6/765 | 600 lm · 6500K · IP65 |
| 911401847903 | BVC010 LED10/765 | 1000 lm · 6500K · IP65 |
| 911401848003 | BVC010 LED20/765 | 2000 lm · 6500K · IP65 |
| 911401848103 | BVC010 LED30/765 | 3000 lm · 6500K · IP65 |
| 911401848203 | BVC010 LED40/765 | 4000 lm · 6500K · IP65 |
| 911401848303 | BVC010 LED50/765 | 5000 lm · 6500K · IP65 |
| 911401848403 | BVC010 LED60/765 | 6000 lm · 6500K · IP65 |
Note: 3000K and 4000K CCT versions, as well as the 2-year warranty variant, are available on request and carry different 12NC codes. Contact sales@honnexlighting.com for availability and lead time.
Also from PHILIPS Outdoor & Industrial Lighting Range
Explore other PHILIPS products distributed by Honnex Lighting — outdoor street lights, solar lights, floodlights, waterproof luminaires, highbays and spotlights.
Frequently Asked Questions
What is the PHILIPS BVC010 Solar Floodlight and what makes it different from a regular LED floodlight?
The PHILIPS BVC010 is an all-in-one solar-powered LED floodlight. It contains a high-efficiency Monocrystalline silicon solar panel, a LiFePO4 battery, and an LED floodlight in one package — no external wiring or grid connection is required. Compared with regular LED floodlights, BVC010 operates 100% off-grid and turns on automatically at dusk and off at dawn.
How many lumen packages and what CCT options are available in the BVC010 series?
The BVC010 Solar Floodlight series offers 7 lumen packages: 600 lm, 1000 lm, 2000 lm, 3000 lm, 4000 lm, 5000 lm and 6000 lm. All variants ship with 3 CCT options (3000K / 4000K / 6500K) and the 6500K version is the standard stocked SKU. CCT is non-selectable in the field and 3000K / 4000K versions are available on request with different 12NC codes.
Does the BVC010 Solar Floodlight need any external electrical wiring to operate?
No. The BVC010 is 100% solar-powered. A 5-meter cable with a plug-and-play connector is pre-installed between the luminaire and the solar panel. You only need to mount the fixture and the solar panel in a location with direct sunlight — no electrician, no grid connection, no monthly electricity bill.
What battery does the BVC010 use, and what is its expected life?
The BVC010 uses a Lithium Iron Phosphate (LiFePO4) battery, which is safer, more stable and has a longer cycle life than conventional lithium-ion batteries. Battery capacity scales with lumen output, from 3.2V 4AH (600 lm) to 3.2V 16AH (6000 lm). The product ships with a 1-year warranty (2-year warranty is available on request with a different 12NC).
Where can the BVC010 Solar Floodlight be installed and what are the application scenarios?
The BVC010 is designed for general outdoor use — facility lighting, security lighting, landscape lighting, parking lots, residential yards, signage, and small commercial properties. The product is not recommended for pole mounting, very harsh environments, or areas where the solar panel would be shaded or exposed to strong ambient light at night.
