Description
PHILIPS BVC010 Solar Floodlight · 12NC 911401848303
PHILIPS BVC010 LED50/765

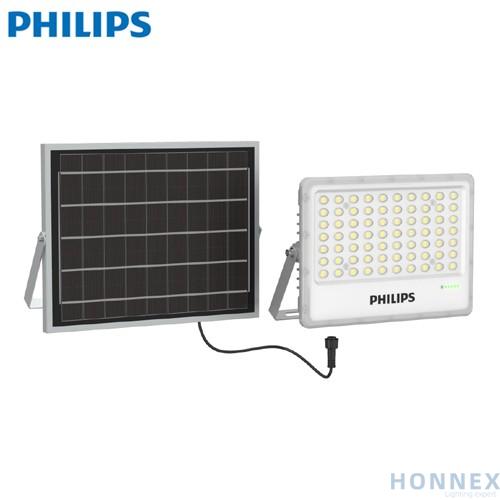

5000 lumen all-in-one solar floodlight at 6500K, IP65 weatherproof housing, LiFePO4 battery and Monocrystalline solar panel with 5 m pre-wired cable. Remote control included.
5000 lm · 6500K ~30.3W LED Power LiFePO4 3.2V 12AH Solar 15W 5V IP65 · CE
Product Details
Complete product identification and key parameters for PHILIPS BVC010 LED50/765 (12NC 911401848303).
- 12NC
- 911401848303
- Description
- BVC010 LED50/765
- LED Output Power
- ~30.3W
- Lumen Output
- 5000 lm
- CCT
- 6500K (3000K / 4000K available on request)
- CRI
- ≥ 70
- Beam Angle
- 110°–120°
- Battery
- LiFePO4, 3.2V 12AH
- Solar Panel
- Monocrystalline silicon, 15W 5V
- Fixture Size (W×L×H)
- 300*225*60mm
- Solar Panel Size (W×L)
- 390*235mm
- Net Weight
- 2.65 kg
- IP Rating
- IP65
- Housing Material
- Plastic (PC), Cool Gray
- Warranty
- 1 year
- MOQ / MPQ
- 100 / 10 (600–1000 lm) · 100 / 5 (2000–6000 lm)
Installation & Wiring
The BVC010 Solar Floodlight is a true all-in-one fixture — no external electrical wiring is required. The 5 m pre-wired cable with plug-and-play connector is permanently attached between the luminaire and the solar panel, allowing flexible positioning of the panel for optimum sunlight exposure.
Mounting
- Wall-mount or fixed-surface mount only (not rated for pole mounting)
- Choose a wall or surface that receives direct sunlight for the solar panel
- Use the included screws and bolts for fixture and bracket installation
- Adjust the solar panel tilt to face the local solar noon angle for best year-round charging
Wiring
- No external AC / DC wiring required — 100% solar powered
- 5 m pre-wired cable with plug-and-play connector between fixture and panel
- Connect the solar panel cable to the fixture cable connector before first use
- Activate by pressing the ON button on the included remote control
First-Time Setup
- Mount fixture and panel in direct sunlight before first use
- Allow the battery to fully charge for 1–2 sunny days before extended use
- Use the remote to switch between ON / OFF / AUTO / 3H / 5H / 8H
- Check the battery-status LED for charging / discharging feedback
Safety: This product contains a non-replaceable LiFePO4 battery. If the product has not been charged within 11 months of the manufacture date (per packaging label), the battery may enter over-discharge and the product may not start. Always store in 0–25 °C, ≤ 75% RH. Operating range is 0–45 °C; below 0 °C or above 45 °C the battery backup is reduced.
Technical Specifications
Complete specification for PHILIPS BVC010 LED50/765 (12NC 911401848303).
| Optical | |
| Lumen Output | 5000 lm |
| CCT (Standard SKU) | 6500K |
| CCT Options | 3000K / 4000K / 6500K (non-selectable in field) |
| CRI | ≥ 70 |
| Luminous Efficacy | ≥ 165 lm/W |
| Beam Angle | 110°–120° |
| Electrical & Solar | |
| LED Output Power | ~30.3W |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Capacity | ~3.2V 12AH |
| Solar Cell Type | Monocrystalline silicon |
| Solar Panel Output | ~15W 5V |
| Cable & Connector | 5 m pre-wired, plug-and-play connector |
| Charging Indicator | Battery-status LED (charging / discharging) |
| Mechanical & Environmental | |
| Fixture Size (W×L×H) | 300*225*60mm |
| Solar Panel Size (W×L) | 390*235mm |
| Net Weight | 2.65 kg |
| Housing Material | Plastic (Polycarbonate) |
| Lens Material | Polycarbonate (PC) |
| Housing Colour | Cool Gray |
| IP Rating | IP65 |
| Operating Temperature | 0 °C – 45 °C |
| Storage Conditions | 0–25 °C, ≤ 75% RH, charge within 11 months of manufacture date |
| Warranty & Ordering | |
| Warranty | 1 year (2 year available on request, different 12NC) |
| 12NC | 911401848303 |
| Plant | CN09 |
| MOQ / MPQ | 100 / 10 (for 5000 lm) |
| Certification | CE |
Product Gallery
Night-Time Application — Solar Floodlight, Panel and Remote Controller
Hero shot of the BVC010 lighting up a traditional courtyard at night. The complete kit includes the LED floodlight, a Monocrystalline solar panel and an IR remote controller — all working together off-grid from dusk to dawn.
Installation Instructions & Remote Control Work Modes
Mount the solar panel at 45–55° for optimal charging. Use M6 / 1/4"-20UNC screws with the integrated U-bracket for wall or surface mounting. The PHILIPS IR remote supports ON, OFF, AUTO, 3H, 5H, 8H, All and Part modes. Note: the lamp has no built-in motion sensor.
Dimensional Drawings — All 7 Lumen Packages (600–6000 lm)
Detailed dimensions for the luminaire (W × L × H) and solar panel (W1 × L1 × H1), plus bracket mounting hole spacings (L2 / L3, axb / axb1) for every SKU from 600 lm up to 6000 lm. Unit: mm.
Retail Color Box Packaging — Dieline & Finished Shelf Box
Full dieline showing the front panel (PHILIPS Essential SmartBright Solar Flood Light), back panel (specifications, application scenes, certifications) and side panels, together with the finished shelf-ready color box. Each set includes one BVC010 luminaire and one Monocrystalline solar panel.
Actual Product Photos
Real product shots of the PHILIPS BVC010 Solar Floodlight — retail packaging, monocrystalline solar panel, complete kit with IR remote controller, and die-cast housing details.
Retail Color Box Packaging (Dieline)
Monocrystalline Solar Panel
Complete Kit with IR Remote
Housing Front & Rear
Physical Dimensions
Compare the fixture and solar-panel dimensions across the BVC010 series. The current SKU (PHILIPS BVC010 LED50/765, 5000 lm) is highlighted in yellow.
| Lumen | W (mm) | L (mm) | H (mm) | Panel W (mm) | Panel L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 600 lm | 165 | 125 | 48 | 205 | 180 | 1.20 |
| 1000 lm | 165 | 125 | 48 | 200 | 210 | 1.25 |
| 2000 lm | 215 | 160 | 53 | 205 | 265 | 1.55 |
| 3000 lm | 215 | 160 | 53 | 205 | 300 | 1.65 |
| 4000 lm | 245 | 195 | 60 | 360 | 205 | 2.10 |
| 5000 lm | 300 | 225 | 60 | 390 | 235 | 2.65 |
| 6000 lm | 345 | 245 | 60 | 390 | 300 | 3.05 |
Complete Product Lineup
The BVC010 Solar Floodlight series is available in 7 lumen packages. Click any description to view its dedicated product page. The current SKU is highlighted.
| 12NC | Description | Key Specs |
|---|---|---|
| 911401847803 | BVC010 LED6/765 | 600 lm · 6500K · IP65 |
| 911401847903 | BVC010 LED10/765 | 1000 lm · 6500K · IP65 |
| 911401848003 | BVC010 LED20/765 | 2000 lm · 6500K · IP65 |
| 911401848103 | BVC010 LED30/765 | 3000 lm · 6500K · IP65 |
| 911401848203 | BVC010 LED40/765 | 4000 lm · 6500K · IP65 |
| 911401848303 | BVC010 LED50/765 | 5000 lm · 6500K · IP65 |
| 911401848403 | BVC010 LED60/765 | 6000 lm · 6500K · IP65 |
Also from PHILIPS Outdoor & Industrial Lighting Range
Browse more PHILIPS products distributed by Honnex Lighting — solar street lights, LED floodlights, street lights, waterproof luminaires, highbays and spotlights.
Frequently Asked Questions
What is the lumen output and LED power of PHILIPS BVC010 LED50/765?
PHILIPS BVC010 LED50/765 delivers 5000 lumens of light output at 6500K with a typical LED power consumption of approximately 30.3W. The fixture operates at a luminous efficacy of ≥ 165 lm/W, ensuring high brightness with low power draw. This SKU ships with a 3.2V 12AH LiFePO4 battery and a 15W 5V Monocrystalline solar panel, providing fully off-grid operation.
Is this BVC010 SKU suitable for outdoor installation?
Yes. This BVC010 SKU carries an IP65 ingress protection rating with a fully plastic, weather-resistant housing. It is designed for outdoor general-purpose use, including security lighting, landscape lighting, parking areas and signage illumination. Avoid pole mounting and very harsh environments.
What working modes are supported via the included remote control?
The BVC010 Solar Floodlight supports the following working modes via the included remote control: ON, OFF, AUTO, 3H, 5H, 8H, and FULL / PARTIAL. The AUTO mode follows a dusk-to-dawn schedule with the new dimming profile that maximises battery runtime — first hours at full output, then gradual dimming through the night, with a final low-output period until dawn.
