Description
PHILIPS Frameless LED Panel RC468V LED34/950 W60L60 PSU GC
PHILIPS 28 W 3,500 lm 5000K UGR <22 PSU IP54 front 50,000 h
3,500 lm at 28 W, 5000K, PSU switch control. This is the mid output of the frameless RC468V range and the code most 600 × 600 mm office grids are calculated around — 120 lm/W, UGR below 22, and no control bus to commission. Part of the PHILIPS RC468V frameless panel series, and listed on the PHILIPS LED panel range page.
What 911401904070 Gives You
The Output Most Grids Are Laid Out On
3,500 lm per module is the figure lighting designs land on for a standard open-plan grid. Ordering the middle of the range keeps you from over-specifying the 35 W and paying for light the room does not need.
120 lm/W at the System Level
That is 2,500 lm of margin over a legacy 4 × 18 W louvre fitting from roughly a third of the wattage. On a ceiling that runs a full working day, the difference lands directly on the energy bill.
UGR Below 22
One step softer than the 17 W code, and the right compromise on a higher ceiling where the angle of view to the panel is steeper and the panel itself is further away.
PSU Keeps the Schedule Simple
One switched live per run, no addressing, no commissioning. Where the control strategy is occupancy sensors on the circuit rather than per-fixture dimming, PSD buys nothing and costs a bus.
Where This Code Sits in the Range
This is the 28 W code with a fixed-output PSU. If the project needs DALI dimming at the same output, switch to 911401904080 — same body, same lumens, dimmable driver. If 3,500 lm is more than the room needs, step down to the 17 W 911401904073.
The other four codes
| 12NC | Description | Power | Output | CCT | Driver |
|---|---|---|---|---|---|
| 911401904073 | RC468V LED20/950 W60L60 PSU GC | 17 W | 2,100 lm | 5000K | PSU |
| 911401904080 | RC468V LED34/950 W60L60 PSD GC | 28 W | 3,500 lm | 5000K | PSD (DALI) |
| 911401904088 | RC468V LED34/9TWH W60L60 GC | 28 W | 3,500 lm | 3000–5000K | Tunable White |
| 911401904574 | RC468X LED42/950 W60L60 FL GC | 35 W | 4,300 lm | 5000K | FL |
All five codes share the 599 × 599 × 58 mm body, the 270° edge emission and the IP54 luminous face. What changes between them is output, colour temperature and driver.
Technical Specifications
| Parameter | This code |
|---|---|
| Optical | |
| System output | 3,500 lm |
| System efficacy | >120 lm/W |
| Colour temperature | 5000K (940 = 4000K, 965 = 6500K) |
| Colour rendering | CRI 90, R9 >50 |
| Colour consistency | SDCM <3 |
| Glare rating (UGR) | <22 |
| Blue light hazard | RG0 (exempt group) |
| Flicker | PstLM <0.5, SVM <0.4, MD <3.2% |
| Light distribution | Symmetrical, L.O.R. 1.00 |
| Electrical | |
| Rated power | 28 W |
| Input voltage | 220–240 V ~ 50/60 Hz |
| Power factor | >0.9 |
| Driver | PSU — fixed output, switched at the wall |
| Surge protection | L-N: 1 kV |
| Safety class | Class II |
| Mechanical & environmental | |
| Dimensions (L × W) | 599 × 599 mm (W60L60) |
| Height | 58 mm panel, <70 mm including driver |
| Ingress protection | IP20 body, IP54 luminous face, IK03 |
| Mounting | Integrated ceiling grid, recessed, suspended, spliced |
| Operating temperature | −20 °C to +45 °C |
| Lifetime | 50,000 h L70B50 @ Ta = 25 °C |
| Certification | CCC |
| Ordering | |
| 12NC | 911401904070 |
| Factory description | RC468V LED34/950 W60L60 PSU GC |
Ingress protection is quoted against IEC 60529: IP20 for the housing, IP54 for the sealed luminous face. UGR values follow the CIE unified glare rating method; see CIE for the calculation basis.
Driver and Control
Driver version on this code: PSU — fixed output, switched at the wall. The driver is supplied as part of the 12NC, not chosen separately at the counter.
It sits on the back of the module. Panel height is 58 mm on its own and stays under 70 mm once the driver is mounted, which is what lets the module sit inside a standard ceiling void without a spacer.
Where the scheme needs a different control layer, the same 3,500 lm module is available as PSU or PSD / DALI. Driver and system compatibility questions are best answered from the datasheet for the batch you are quoting — ask us and we will send it with the quotation.
Splicing, Mounting and Accessories
Four mounting methods are supported on the same module: integrated ceiling grid, plasterboard recess, rod suspension and spliced runs. Splicing is what the frameless edge is for — two modules butted together read as one continuous luminous plane, and the joint does not need a trim strip to close it. Mounting hardware is ordered as separate accessory codes:
| 12NC | Description | Pack | For |
|---|---|---|---|
| 911401904090 | RC468Z CPC Strip AC Kit | 8 pcs | Spliced runs |
| 911401904091 | RC468Z Profile Clip 4040 AC Kit | 16 pcs | Profile mounting |
| 911401904092 | RC468Z Suspension Clip AC Kit | 16 pcs | Rod suspension |
Accessory quantities in the table are per kit, not per module. Work out kit count from the number of joints, profile lengths and drop points in the layout. The series page carries the dimensional drawing and the full mounting description.

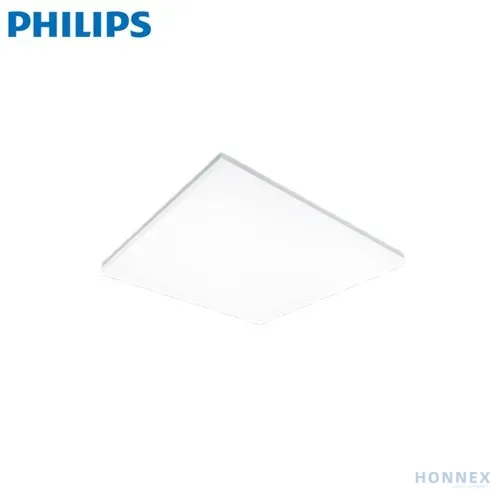

Product Image and Photometrics
The volume code3,500 lm is the output most 600 × 600 mm office grids are laid out around, which makes this the code that clears a schedule fastest.
Polar intensity distribution
L.O.R. 1.00 — symmetric in the 0–180° and 90–270° planes. Measured IES, LDT and ULD files are issued with the quotation.
Indicative shape, measured filesThe lobe shows the form of the distribution; the numbers live in the IES and LDT files, so your calculation never runs on a traced scan.
Ordering
| Item | Value |
|---|---|
| Order code (12NC) | 911401904070 |
| Factory description | RC468V LED34/950 W60L60 PSU GC |
| Output / CCT | 3,500 lm / 5000K |
| Driver | PSU |
| Body | 599 × 599 × 58 mm frameless, IP54 luminous face |
Quote and order by the 12NC. Colour temperature is carried by the digits after the slash in the factory description (940 = 4000K, 950 = 5000K, 965 = 6500K), so a description that looks similar but reads 940 is a different code and a different colour.
Frequently Asked Questions
Should I order 911401904070 or 911401904080?
They are the same luminaire with different drivers. 911401904070 is PSU: fixed output, switched at the wall. 911401904080 is PSD: the same 28 W, 3,500 lm, 5000K module with a DALI-dimmable driver. Choose PSD only if a control system will actually address the fixtures — daylight linking, occupancy dimming or a scene-based scheme. Otherwise the PSU code is cheaper to install and has nothing to commission.
What is the difference between 911401904069 and 911401904070?
Colour temperature only. 911401904069 is the 4000K version of this 28 W module; 911401904070 is 5000K. The 6500K version is 911401904071. Lumens, UGR, dimensions and driver are identical, so the choice is purely the colour appearance the interior calls for.
How many modules will a room need?
That comes out of the lighting calculation, not out of the datasheet — room index, reflectance, mounting height and the maintained illuminance target all move the count. Send us the room dimensions and the target lux level and we will run the layout; 3,500 lm per module is the figure to enter into DIALux for this code.
