Description

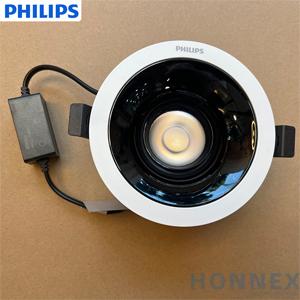

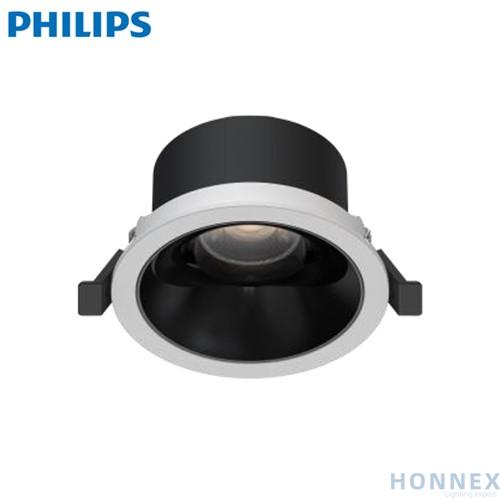

PHILIPS Deep Recessed LED Spotlight Series RS216
Deep-recessed anti-glare LED spotlight for premium indoor applications. 4 cut-out sizes (D55/D75/D95/D120), 5W–35W, three beam angles (24°/36°/50°), CRI 90 full-spectrum COB. Authorized PHILIPS distributor — factory-direct pricing with global shipping.
Feature Highlights
Deep-Recessed Anti-Glare
Recessed light source effectively suppresses glare and reduces visual fatigue in museums, hotels, conference rooms and high-end residences.
CRI 90 Full-Spectrum COB
High-performance COB light source with CRI Ra ≥ 90 reproduces true-to-life colors and creates a comfortable visual environment.
4 Cut-out Sizes · D55 / D75 / D95 / D120
Complete cut-out size lineup from D55mm to D120mm with power levels from 5W to 35W — one series for every indoor space.
3 Beam Angles — 24° / 36° / 50°
Choose between 24° narrow spot, 36° spot and 50° flood for accent, general or ambient lighting applications.

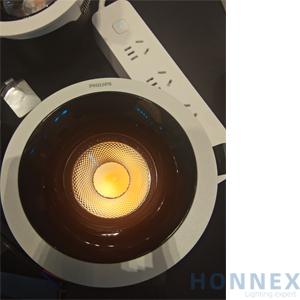

External Driver · Flexible Installation
Detached driver simplifies ceiling installation, reduces fixture depth requirements, and supports easier maintenance.
15,000-Hour Lifetime · IP20
Rated L70B50 at Ta 25°C. Metal housing with nickel-black reflector. 2-year Signify manufacturer warranty.
Product Gallery
Technical Specifications
Unified comparison across all 6 power options within the RS216 family. The 24° / 36° / 50° beam angle variants share identical electrical and mechanical specifications — only the optical lens differs.
| Parameter | D55 (5W) | D75 (7W) | D75 (9W) | D95 (15W) | D120 (25W) | D120 (35W) |
|---|---|---|---|---|---|---|
| Optical Performance | ||||||
| Luminous Flux (3000K) | 410 lm | 630 lm | 765 lm | 1,125 lm | 2,120 lm | 2,970 lm |
| Luminous Flux (4000K) | 435 lm | 630 lm | 765 lm | 1,200 lm | 2,230 lm | 3,250 lm |
| Beam Angle | 24° (narrow spot) / 36° (spot) / 50° (flood) | |||||
| CRI | Ra ≥ 90 | |||||
| Color Temperature | 3000K (warm white) / 4000K (neutral white) | |||||
| Electrical | ||||||
| System Power | 5W | 7W | 9W | 15W | 25W | 35W |
| Power Factor | ≥ 0.5 | ≥ 0.9 | ||||
| Input Voltage | 220–240V ~ 50/60 Hz | |||||
| Driver Type | External, On/Off (non-dimmable). DALI dimmable variants — contact sales@honnexlighting.com | |||||
| Mechanical & Environmental | ||||||

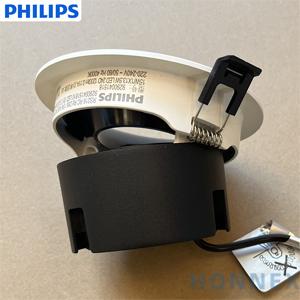

| Housing Material | Die-cast metal with wave-form heat dissipation | |||||
| Reflector | Nickel-black finish (white reflector accessory available) | |||||
| IP Rating | IP20 (indoor use) | |||||
| Operating Temp | -20°C to +40°C | |||||
| Lifetime | 15,000 hours L70B50 @ Ta 25°C | |||||
| Warranty | 2 Years (Signify manufacturer) | |||||
Complete Product Lineup — 36 SKUs
Full SKU list grouped by wattage tier (5W / 7W / 9W / 15W / 25W / 35W) for easy comparison — same-wattage models stay together across cut-out sizes, beam angles and color temperatures. Click the Description to open the dedicated SKU page with full detail, dimensions, and ordering information.
| 12NC | Description | CCT · Beam | Lumen |
|---|---|---|---|
| 5W Power Tier | |||
| D55 — Cut-out 55-57 mm · Fixture Ø63 × H40.5 mm | |||
| 929004151110 | RS216 RC Rd D55 5W 30K 24D WH | 3000K · 24D | 410 lm |
| 929004151210 | RS216 RC Rd D55 5W 40K 24D WH | 4000K · 24D | 435 lm |
| 929004786210 | RS216 RC Rd D55 5W 30K 36D WH | 3000K · 36D | 410 lm |
| 929004786310 | RS216 RC Rd D55 5W 40K 36D WH | 4000K · 36D | 435 lm |
| 929004787410 | RS216 RC Rd D55 5W 30K 50D WH | 3000K · 50D | 410 lm |
| 929004787510 | RS216 RC Rd D55 5W 40K 50D WH | 4000K · 50D | 435 lm |
| 7W Power Tier | |||
| D75 — Cut-out 75-78 mm · Fixture Ø85 × H50 mm | |||
| 929004151310 | RS216 RC Rd D75 7W 30K 24D WH | 3000K · 24D | 630 lm |
| 929004151410 | RS216 RC Rd D75 7W 40K 24D WH | 4000K · 24D | 630 lm |
| 929004786410 | RS216 RC Rd D75 7W 30K 36D WH | 3000K · 36D | 630 lm |
| 929004786510 | RS216 RC Rd D75 7W 40K 36D WH | 4000K · 36D | 630 lm |
| 929004787610 | RS216 RC Rd D75 7W 30K 50D WH | 3000K · 50D | 630 lm |
| 929004787710 | RS216 RC Rd D75 7W 40K 50D WH | 4000K · 50D | 630 lm |
| 9W Power Tier | |||
| D75 — Cut-out 75-78 mm · Fixture Ø85 × H50 mm | |||
| 929004151510 | RS216 RC Rd D75 9W 30K 24D WH | 3000K · 24D | 765 lm |
| 929004151610 | RS216 RC Rd D75 9W 40K 24D WH | 4000K · 24D | 765 lm |
| 929004786610 | RS216 RC Rd D75 9W 30K 36D WH | 3000K · 36D | 765 lm |
| 929004786710 | RS216 RC Rd D75 9W 40K 36D WH | 4000K · 36D | 765 lm |
| 929004787810 | RS216 RC Rd D75 9W 30K 50D WH | 3000K · 50D | 765 lm |
| 929004787910 | RS216 RC Rd D75 9W 40K 50D WH | 4000K · 50D | 765 lm |
| 15W Power Tier | |||
| D95 — Cut-out 95-100 mm · Fixture Ø110 × H66 mm | |||
| 929004151710 | RS216 RC Rd D95 15W 30K 24D WH | 3000K · 24D | 1125 lm |
| 929004151810 | RS216 RC Rd D95 15W 40K 24D WH | 4000K · 24D | 1200 lm |
| 929004786810 | RS216 RC Rd D95 15W 30K 36D WH | 3000K · 36D | 1125 lm |
| 929004786910 | RS216 RC Rd D95 15W 40K 36D WH | 4000K · 36D | 1200 lm |
| 929004788010 | RS216 RC Rd D95 15W 30K 50D WH | 3000K · 50D | 1125 lm |
| 929004788110 | RS216 RC Rd D95 15W 40K 50D WH | 4000K · 50D | 1200 lm |
| 25W Power Tier | |||
| D120 — Cut-out 120-125 mm · Fixture Ø138 × H90 mm | |||
| 929004151910 | RS216 RC Rd D120 25W 30K 24D WH | 3000K · 24D | 2120 lm |
| 929004152010 | RS216 RC Rd D120 25W 40K 24D WH | 4000K · 24D | 2230 lm |
| 929004787010 | RS216 RC Rd D120 25W 30K 36D WH | 3000K · 36D | 2120 lm |
| 929004787110 | RS216 RC Rd D120 25W 40K 36D WH | 4000K · 36D | 2230 lm |
| 929004788210 | RS216 RC Rd D120 25W 30K 50D WH | 3000K · 50D | 2120 lm |
| 929004788310 | RS216 RC Rd D120 25W 40K 50D WH | 4000K · 50D | 2230 lm |
| 35W Power Tier | |||
| D120 — Cut-out 120-125 mm · Fixture Ø138 × H90 mm | |||
| 929004152110 | RS216 RC Rd D120 35W 30K 24D WH | 3000K · 24D | 2970 lm |
| 929004152210 | RS216 RC Rd D120 35W 40K 24D WH | 4000K · 24D | 3250 lm |
| 929004787210 | RS216 RC Rd D120 35W 30K 36D WH | 3000K · 36D | 2970 lm |
| 929004787310 | RS216 RC Rd D120 35W 40K 36D WH | 4000K · 36D | 3250 lm |
| 929004788410 | RS216 RC Rd D120 35W 30K 50D WH | 3000K · 50D | 2970 lm |
| 929004788510 | RS216 RC Rd D120 35W 40K 50D WH | 4000K · 50D | 3250 lm |
RS216 Accessories — Optional White Reflector
Optional pearl-white reflector accessories are available for projects requiring a softer luminous distribution. Sold in 24-pc boxes, order separately.
| 12NC | Description | Specification |
|---|---|---|
| 929004644110 | RS216 Reflector D55 White 24pcs | Cut-out 55 mm · White finish · 24pcs/box |
| 929004639710 | RS216 Reflector D75 White 24pcs | Cut-out 75 mm · White finish · 24pcs/box |
| 929004644210 | RS216 Reflector D95 White 24pcs | Cut-out 95 mm · White finish · 24pcs/box |
| 929004644310 | RS216 Reflector D120 White 24pcs | Cut-out 120 mm · White finish · 24pcs/box |
Also from PHILIPS Lighting Range
Explore the wider Honnex-distributed PHILIPS indoor and outdoor lighting portfolio. Each product is an authorized-distributor line with factory warranty.
PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
Solar Flood
PHILIPS BRP26X SmartBright LED Street Lighting Series
Street Lighting
PHILIPS WT198C GreenPerform Waterproof G3 Series
Waterproof Batten
PHILIPS BY778P GreenPerform Elite Highbay G2 Series
Industrial Highbay
PHILIPS GreenPerform Trunking G2 LL130X Series
LED Trunking
PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
Outdoor Spike Spot
PHILIPS BY518P SE GreenUp Round LED Highbay Series
Round Highbay
PHILIPS BVP150 G4 LED Floodlight Series
LED Floodlight
Frequently Asked Questions
What is the PHILIPS Deep Recessed LED Spotlight Series RS216?
The PHILIPS Deep Recessed LED Spotlight Series RS216 is a deep-recessed anti-glare LED spotlight designed for indoor commercial and residential applications. The recessed light source effectively suppresses glare, reducing visual fatigue, and pairs with CRI 90 full-spectrum COB to faithfully reproduce colors. The series covers 4 cut-out sizes (D55/D75/D95/D120) with power levels from 5W to 35W, and offers three beam angles — 24° narrow spot, 36° spot, and 50° flood.
What is the difference between 24°, 36° and 50° beam angles?
24° produces a focused narrow beam ideal for accent lighting — highlighting artwork, museum displays, or specific architectural features. 36° is the standard spot angle — a balanced spread for general downlighting in retail, hotel lobbies, and residential living areas. 50° delivers a wide, soft flood suitable for ambient wash, dining areas, conference rooms, and spaces where uniform illumination matters more than dramatic contrast.
How do I choose the right cut-out size — D55, D75, D95 or D120?
D55 (5W) suits small accent tasks — display cabinets, narrow corridors, bedside reading. D75 (7W / 9W) is the residential/hotel workhorse — standard ceiling cutouts in apartments and guest rooms. D95 (15W) is for retail and gallery downlighting where moderate punch is needed. D120 (25W / 35W) is for high-ceiling commercial spaces — lobbies, conference halls, museum atriums where higher lumen output (up to 3,250 lm) is required.
Is RS216 dimmable? What about DALI or 0-10V?
The standard RS216 family uses an external non-dimmable driver (On/Off). For DALI-2 dimmable, 0-10V dimmable, or smart-control versions please contact sales@honnexlighting.com for the latest dimmable SKU roadmap and MOQ.
What is the warranty and lifetime?
All RS216 SKUs carry a 2-year manufacturer warranty backed by Signify. Rated lifetime is 15,000 hours L70B50 at Ta 25°C ambient — equivalent to approximately 10 years of typical residential use (4 hours/day).
