Description
PHILIPS CertaDrive 24VDC Constant Voltage LED Driver Series SPS
PHILIPS CertaDrive 24VDC CV 6 Power Ratings CB / CQC / SELV
Reliable quality, stable output. Six wattages from 60W to 400W cover the full range of 24V LED strip, signage, cove and architectural lighting loads. Fanless metal housing, 2.5mm² screw terminals, IP20, low voltage ripple, designed for residential, commercial and public-space applications.
Feature Highlights
Engineered for installers and OEMs who need a safe, compact and reliable 24V DC supply — backed by PHILIPS / Signify quality assurance.
Safety-Certified Output
CB / CQC / SELV compliant. True 24V DC constant-voltage output with low voltage ripple protects sensitive LED chips and downstream control gear.
Installer-Friendly Wiring
Accepts up to 2.5mm² conductors via lock-screw terminals. Compact slim housing fits inside luminaires, ceiling cavities, signage frames and narrow cabinet spaces.
Fanless Silent Cooling
No internal fan — zero acoustic noise and no moving parts to fail. Perforated metal housing delivers passive heat dissipation for a longer service life.
Full Wattage Range
Six power ratings — 60W / 100W / 150W / 200W / 300W / 400W — cover the entire load spectrum from a single under-cabinet run to a full signage or cove install.
Multi-Layer Protection
Built-in open-circuit, overload, short-circuit and over-temperature protection. Driver auto-recovers once the fault is cleared — no fuse replacement needed.
No Load-Boost, True Rating
Rated at real-world maximum output — 100% of nameplate wattage available continuously. No inflated marketing figures, no thermal derating surprises on site.
Wide Operating Range
Operates from −15°C to +40°C ambient, suitable for unheated indoor spaces, basement installations and unconditioned service areas. AC input 200–240V, 50/60 Hz.
Signify Authenticity
Every genuine unit carries a Signify anti-counterfeit QR label (Validus Laser Verify Authentication) — scratch, scan, verify and you are protected from grey-market copies.
Technical Specifications
Side-by-side comparison across all six power ratings — pick the right driver for your load in a single glance.
| Parameter | 60W | 100W | 150W | 200W | 300W | 400W |
|---|---|---|---|---|---|---|
| Electrical | ||||||
| Input Voltage | 200–240V AC, 50/60 Hz | |||||
| Output Voltage | 24V DC constant | |||||
| Max Output Power | 60 W | 100 W | 150 W | 200 W | 300 W | 400 W |
| Max Output Current | 2.5 A | 4.16 A | 6.25 A | 8.33 A | 12.5 A | 16.7 A |
| Efficiency (typ.) | up to 90% | |||||
| Voltage Ripple | Low — safe for sensitive LED chips and DMX/0-10V dimming interfaces | |||||
| Mechanical | ||||||
| Housing (L × W × H, mm) | 117 × 49 × 30 | 174 × 49 × 30 | 174 × 49 × 30 | 210 × 49 × 30 | 210 × 59 × 32 | 228 × 59 × 32 |
| IP Rating | IP20 (indoor use) | |||||
| Cooling | Fanless passive — perforated metal housing | |||||
| Wiring | 2.5 mm² lock-screw terminals | |||||
| Environment & Compliance | ||||||
| Operating Temperature | −15°C to +40°C | |||||
| Storage Temperature | −40°C to +80°C (typical) | |||||
| Safety Standards | CB / CQC / SELV | |||||
| Protection Functions | Open-circuit, overload, short-circuit, over-temperature (auto-recovery) | |||||
| Operating Humidity | 5%–95% RH, non-condensing | |||||
Complete Product Lineup
Six 12NC order codes in the SPS 24VDC family — ordered by wattage from 60W to 400W. Click a description to open the dedicated product page.
| SPS Series — 24VDC Constant Voltage Driver (6 SKUs) | |||||
| 12NC | Description | Power | L × W × H (mm) | Output | Link |
|---|---|---|---|---|---|
| 929004854402 | CertaDrive SPS 60W 24VDC RT | 60 W | 117 × 49 × 30 | 24V / 2.5A | View |
| 929004854502 | CertaDrive SPS 100W 24VDC RT | 100 W | 174 × 49 × 30 | 24V / 4.16A | View |
| 929004854602 | CertaDrive SPS 150W 24VDC RT | 150 W | 174 × 49 × 30 | 24V / 6.25A | View |
| 929004854702 | CertaDrive SPS 200W 24VDC RT | 200 W | 210 × 49 × 30 | 24V / 8.33A | View |
| 929004854802 | CertaDrive SPS 300W 24VDC RT | 300 W | 210 × 59 × 32 | 24V / 12.5A | View |
| 929004854902 | CertaDrive SPS 400W 24VDC RT | 400 W | 228 × 59 × 32 | 24V / 16.7A | View |
Product Gallery
Four reference shots taken in the Honnex Lighting warehouse — PHILIPS / Signify front labels, consistent slim-metal enclosure, yellow Signify anti-counterfeit sticker on every unit.
SPS Family Lineup — PHILIPS 4-Model
Four core wattage variants arranged left-to-right by housing size. Same slim metal enclosure, same lock-screw terminal blocks, same yellow Signify anti-counterfeit sticker on every unit.
SPS Series Size at a Glance
Every wattage from 60W to 400W and its housing dimensions laid out in a single quick-reference view — pick the right driver size for your installation without cross-referencing the spec sheet.

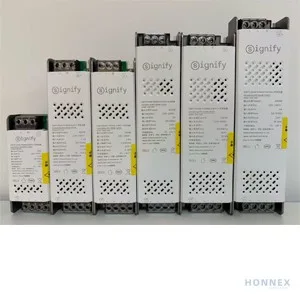

Complete 6-Model Lineup — Signify
Every wattage in the SPS 24VDC family — 60W / 100W / 150W / 200W / 300W / 400W — shown side by side, identical slim-metal housing language, Signify-branded front labels.

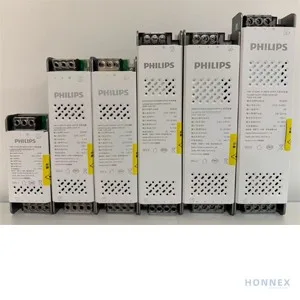

SPS Family Lineup — PHILIPS 5-Model
Five wattage variants in front three-quarter view, showing the consistent build across the SPS family — slim metal housing, lock-screw terminal blocks, PHILIPS front label, and yellow Signify authenticity sticker.
Also from PHILIPS Lighting Range
Pair your CertaDrive SPS 24VDC supply with these PHILIPS luminaire families. Every link below points to a live product page on this site.
PHILIPS BRP26X SmartBright LED Street Lighting Series
PHILIPS WT198C GreenPerform Waterproof G3 Series
PHILIPS BY778P GreenPerform Elite Highbay G2 Series
PHILIPS GreenPerform Trunking G2 LL130X Series
PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
PHILIPS BY518P SE GreenUp Round LED Highbay
PHILIPS BVP150 G4 LED Floodlight Series
PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B
Frequently Asked Questions
What is the difference between CertaDrive SPS 24VDC and Xitanium drivers?
CertaDrive SPS 24VDC is a constant voltage (CV) driver — it outputs a fixed 24V DC for any 24V LED load up to its rated wattage. Xitanium is typically a constant current (CC) driver designed for specific LED modules with a fixed forward current.
Use CertaDrive SPS 24VDC for 24V LED strips, signage modules, cove lights and architectural fixtures that require stable 24V DC input. Use Xitanium for dedicated PHILIPS LED modules with built-in current-setting resistors. Browse the full PHILIPS OEM Accessories range for the matching driver for your LED module.
Can I run the CertaDrive SPS 24VDC at less than full load?
Yes. The SPS 24VDC series supports partial load operation. For longest driver life we recommend keeping load above 30% of rated wattage. Below that, the no-load protection may engage if the output current is too low; above rated load, overload protection will shut the unit down. For a 100W driver this means a practical working window of roughly 30–100W.
What protection features does the SPS 24VDC driver include?
Every CertaDrive SPS 24VDC unit includes open-circuit (no-load) protection, overload protection, short-circuit protection and over-temperature protection. The driver will auto-recover once the fault condition is removed — no fuse replacement, no manual reset. The IP20 metal housing is designed for installation inside a luminaire, cabinet or above-ceiling space with adequate ventilation.
Is the CertaDrive SPS 24VDC fanless? Does it make noise?
Yes. The SPS 24VDC range uses passive cooling with a metal housing and a perforated heat-dissipation design — there is no internal fan. This makes the driver completely silent in operation, which is essential for residential bedrooms, hotel rooms, libraries, boardrooms and other noise-sensitive spaces. Compared to fan-cooled drivers, the SPS range has a longer mean-time-between-failures because there is no moving part to wear out.
How do I verify my PHILIPS CertaDrive driver is genuine?
Every genuine PHILIPS CertaDrive SPS 24VDC unit carries a Signify anti-counterfeit QR sticker (Validus Laser Verify Authentication) on the housing. Scratch off the silver coating on the sticker, scan the QR code with your phone camera, and the Signify verification page will confirm whether the unit is authentic. Avoid units with scratched, missing or non-functional anti-counterfeit labels.
