Description
PHILIPS CertaDrive 24VDC Constant Voltage LED Driver SPS 60W
PHILIPS
CertaDrive
SPS 60W
24VDC CV
CB / CQC / SELV
PHILIPS CertaDrive 24VDC Constant Voltage LED Driver SPS 60W — Reliable quality, stable output. The 60W model of the CertaDrive SPS 24VDC constant-voltage family delivers up to 60W / 2.5A of clean 24V DC for LED strip, signage, cove and architectural loads — fanless metal housing, 2.5mm² screw terminals, IP20, low voltage ripple.
Product Details
- 12NC
- 929004854402
- Description
- PHILIPS CertaDrive 24VDC LED Driver SPS 60W 24V RT
- Max Output Power
- 60 W
- Max Output Current
- 2.5 A
- Output Voltage
- 24V DC constant
- Input Voltage
- 200–240V AC, 50/60 Hz
- Housing Size
- 117 × 49 × 30 mm
- IP Rating
- IP20 (indoor use)
- Safety Standards
- CB / CQC / SELV
Technical Specifications
| Electrical | |
| Input Voltage | 200–240V AC, 50/60 Hz |
| Output Voltage | 24V DC constant |
| Max Output Power | 60 W |
| Max Output Current | 2.5 A |
| Efficiency (typ.) | up to 90% |
| Voltage Ripple | Low — safe for sensitive LED chips and DMX / 0-10V dimming interfaces |
| Mechanical | |
| Housing (L × W × H, mm) | 117 × 49 × 30 |
| IP Rating | IP20 (indoor use) |
| Cooling | Fanless passive — perforated metal housing |
| Wiring | 2.5 mm² lock-screw terminals |
| Environment & Compliance | |
| Operating Temperature | −15°C to +40°C |
| Storage Temperature | −40°C to +80°C (typical) |
| Safety Standards | CB / CQC / SELV |
| Protection Functions | Open-circuit, overload, short-circuit, over-temperature (auto-recovery) |
| Operating Humidity | 5%–95% RH, non-condensing |
Product Gallery
The 60W unit belongs to the family shown below — identical slim-metal enclosure language, PHILIPS front label and yellow Signify anti-counterfeit sticker across the range.
SPS Family Lineup — PHILIPS 4-Model
Four core wattage variants arranged left-to-right by housing size. Same slim metal enclosure, same lock-screw terminal blocks, same yellow Signify anti-counterfeit sticker on every unit.
SPS Series Size at a Glance
Every wattage from 60W to 400W and its housing dimensions laid out in a single quick-reference view — pick the right driver size for your installation without cross-referencing the spec sheet.
Complete 6-Model Lineup — Signify
Every wattage in the SPS 24VDC family — 60W / 100W / 150W / 200W / 300W / 400W — shown side by side, identical slim-metal housing language, Signify-branded front labels.

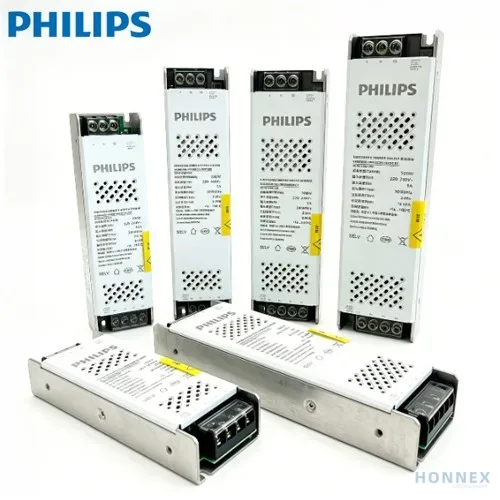

SPS Family Lineup — PHILIPS 5-Model
Five wattage variants in front three-quarter view, showing the consistent build across the SPS family — slim metal housing, lock-screw terminal blocks, PHILIPS front label, and yellow Signify authenticity sticker.
Complete Product Lineup
All six 12NC order codes in the SPS 24VDC family — the highlighted row is the current model (60W). Click a description to open the dedicated product page.
| SPS Series — 24VDC Constant Voltage Driver (6 SKUs) | ||||
| 12NC | Description | Power | L × W × H (mm) | Output |
|---|---|---|---|---|
| 929004854402 | CertaDrive SPS 60W 24VDC RT | 60 W | 117 × 49 × 30 | 24V / 2.5A |
| 929004854502 | CertaDrive SPS 100W 24VDC RT | 100 W | 174 × 49 × 30 | 24V / 4.16A |
| 929004854602 | CertaDrive SPS 150W 24VDC RT | 150 W | 174 × 49 × 30 | 24V / 6.25A |
| 929004854702 | CertaDrive SPS 200W 24VDC RT | 200 W | 210 × 49 × 30 | 24V / 8.33A |
| 929004854802 | CertaDrive SPS 300W 24VDC RT | 300 W | 210 × 59 × 32 | 24V / 12.5A |
| 929004854902 | CertaDrive SPS 400W 24VDC RT | 400 W | 228 × 59 × 32 | 24V / 16.7A |
Also from PHILIPS Lighting Range
Pair your CertaDrive SPS 60W supply with these PHILIPS luminaire families. Every link below points to a live product page on this site.
PHILIPS BRP26X SmartBright LED Street Lighting Series
PHILIPS WT198C GreenPerform Waterproof G3 Series
PHILIPS BY778P GreenPerform Elite Highbay G2 Series
PHILIPS GreenPerform Trunking G2 LL130X Series
PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
PHILIPS BY518P SE GreenUp Round LED Highbay
PHILIPS BVP150 G4 LED Floodlight Series
PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B
Frequently Asked Questions
What is the maximum 24V LED load the CertaDrive SPS 60W can drive?
The SPS 60W supplies up to 60W of 24V DC constant-voltage output (24V / 2.5A). Stay at or below the nameplate rating — if the connected LED load exceeds it, the overload protection shuts the driver down and it auto-recovers after the excess load is removed.
Can I run the CertaDrive SPS 60W below its full rating?
Yes. Partial-load operation is supported. For the longest service life we recommend keeping the connected 24V load above 30% of rated wattage, giving a practical working window of roughly 18–60W for this model.
What protection features does the CertaDrive SPS 60W include?
Every CertaDrive SPS 24VDC unit includes open-circuit (no-load) protection, overload protection, short-circuit protection and over-temperature protection with automatic recovery. The IP20 metal housing is designed for installation inside a luminaire, cabinet or above-ceiling space with adequate ventilation.
