PHILIPSSP135P + SP136P36W5000KUGR<16IP40RG0CCC
PHILIPS Classroom Lighting Solution SP135P & SP136P
Complete K-12 classroom lighting set from Signify: the SP135P LED blackboard luminaire for the writing-board plane plus the SP136P grille classroom luminaire for desk-plane illumination. Both series share the same full-spectrum high-CRI platform — Ra>96, R9>93, UGR<16 anti-glare, RG0 blue-light safety, IP40 sealed light chamber and high power factor above 0.95 — engineered to satisfy GB 50034 and EN 12464-1 classroom lighting requirements.
Feature Highlights
Two-Luminaire Classroom Set
SP135P lights the blackboard plane while SP136P floods the desks — the standard board-plus-desk pairing used in K-12 classroom lighting design, ordered from one vendor on one purchase order.
Full-Spectrum High CRI
Ra>96 and R9>93 across both series render chalk marks, whiteboard ink, textbook colour plates and skin tones accurately — critical for reading comprehension and art or science lessons.
Ultra-Low Glare UGR<16
One-piece pressed grille with through-rib reinforcement and a seamless arc edge holds glare below the EN 12464-1 classroom limit, so students never need to shield their eyes when facing the board.
Flicker-Free, RG0 Blue Light
Flicker-free operation and photobiological safety RG0 (IEC 62471) remove the invisible flicker of fluorescent tubes and protect the developing eyes of school-age children.
IP40 Sealed Light Chamber
The sealed optical chamber on both luminaires keeps chalk dust and insects out of the LED cavity — maintenance-free in dusty classroom environments.
High PF > 0.95
Power factor above 0.95 on both series delivers reliable, clean electrical quality on shared school distribution networks; SP135P and SP136P are Class II double-insulated.
Efficient vs Fluorescent
36 W per luminaire replaces traditional fluorescent classroom fittings at roughly half the power density, holding classroom lighting power density to ≤ 8 W/m².
30,000 h Rated Lifetime
Both series are rated 30,000 hours — over a decade of typical K-12 school-shift service before replacement.
The Two Luminaires in This Solution

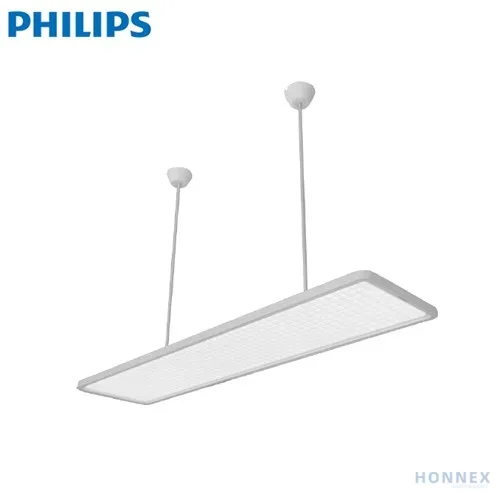

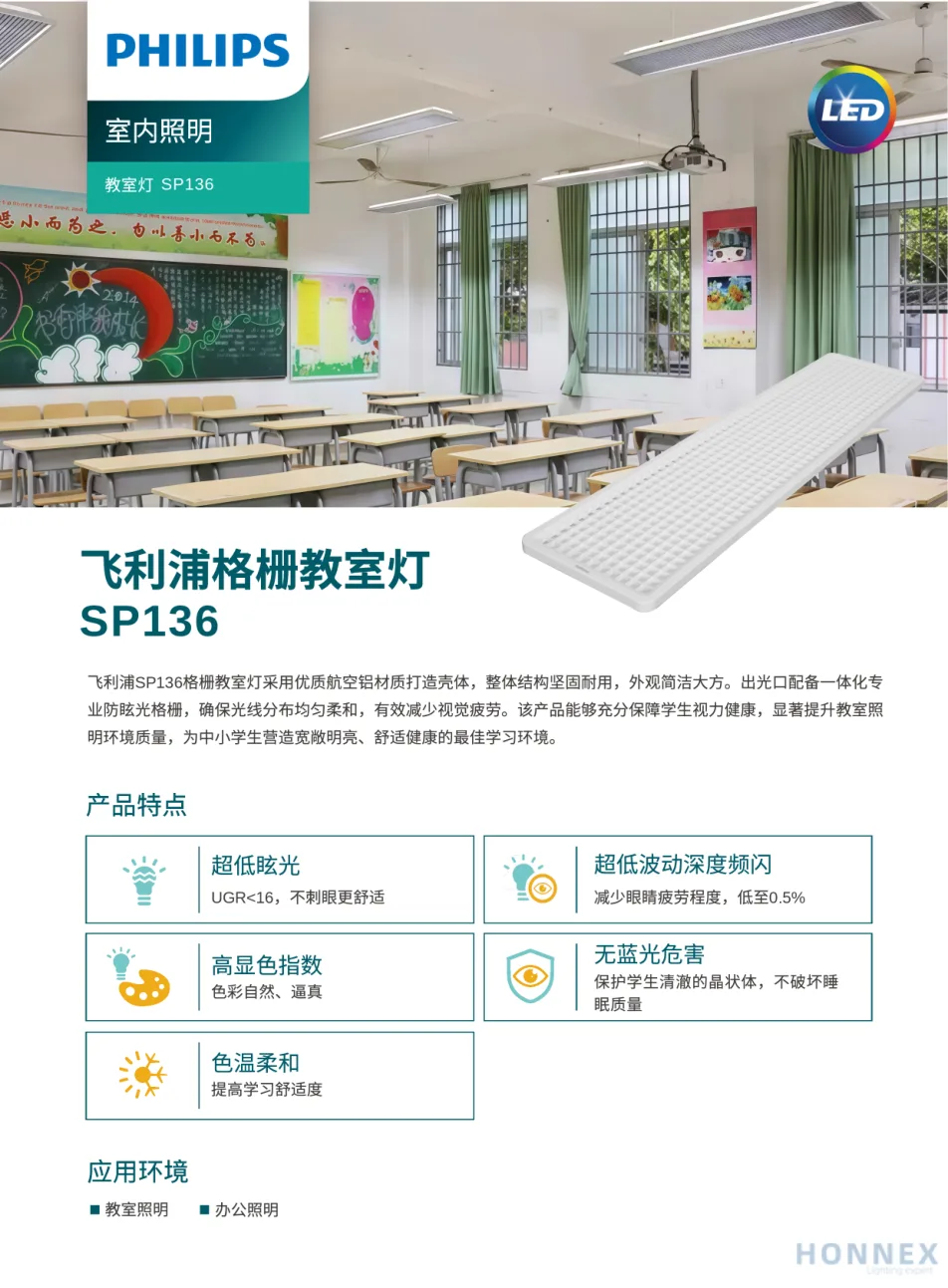

SP136P Grille Classroom Light
DESK-PLANE LUMINAIRE · 2 SKUsOne-piece pressed grille panel with a sealed IP40 light chamber, delivering full-spectrum 5,000 K general illumination " over the desk area. Available as the standard CL version or the CL UO version with raised-point up-light LEDs.
Power 36 W · Output 3,250 / 3,380 lm
Size 1,195 × 295 × 80 / 82 mm
Rendering Ra>95, R9>90
View SP136P SKUs
Size 1,195 × 295 × 80 / 82 mm
Rendering Ra>95, R9>90
SP135P LED Blackboard Light
BOARD-PLANE LUMINAIRE · 1 SKUSlim 1,200 mm grille batten that washes the full blackboard or whiteboard surface evenly without throwing glare into " students' eyes. Same full-spectrum platform as SP136P, with even higher Ra>96 and R9>93 rendering.
Power 36 W · Output 3,000 lm
Size 1,200 × 64 × 104 mm
Rendering Ra>96, R9>93
View SP135P SKU
Size 1,200 × 64 × 104 mm
Rendering Ra>96, R9>93
SP135P vs SP136P — Comparison
| Parameter | SP135P LED30S PSU BB | SP136P LED32S PSU CL / CL UO |
|---|---|---|
| Luminaire role | Blackboard plane illumination | Desk-plane general illumination |
| 12NC | 911401903088 | 911401903089 / 911401903090 |
| Rated power | 36 W | 36 W |
| Lumen output | 3,000 lm | 3,250 lm (CL) / 3,380 lm (CL UO) |
| System efficacy | 85 lm/W ±3 | 88 lm/W (CL) / 94 lm/W (CL UO) |
| Dimensions (L × W × H) | 1,200 × 64 × 104 mm | 1,195 × 295 × 80 / 82 mm |
| Up-light option | No | CL UO version only |
| CCT | 5,000 K | 5,000 K |
| Colour rendering | Ra>96, R9>93 | Ra>95, R9>90 |
| Glare control | UGR<16 grille | UGR<16 grille |
| IP rating (light chamber) | IP40 | IP40 (overall IP20) |
| Insulation class | Class II | Class II |
| Lifetime | 30,000 h | 30,000 h @ L80 |
Application Scenarios

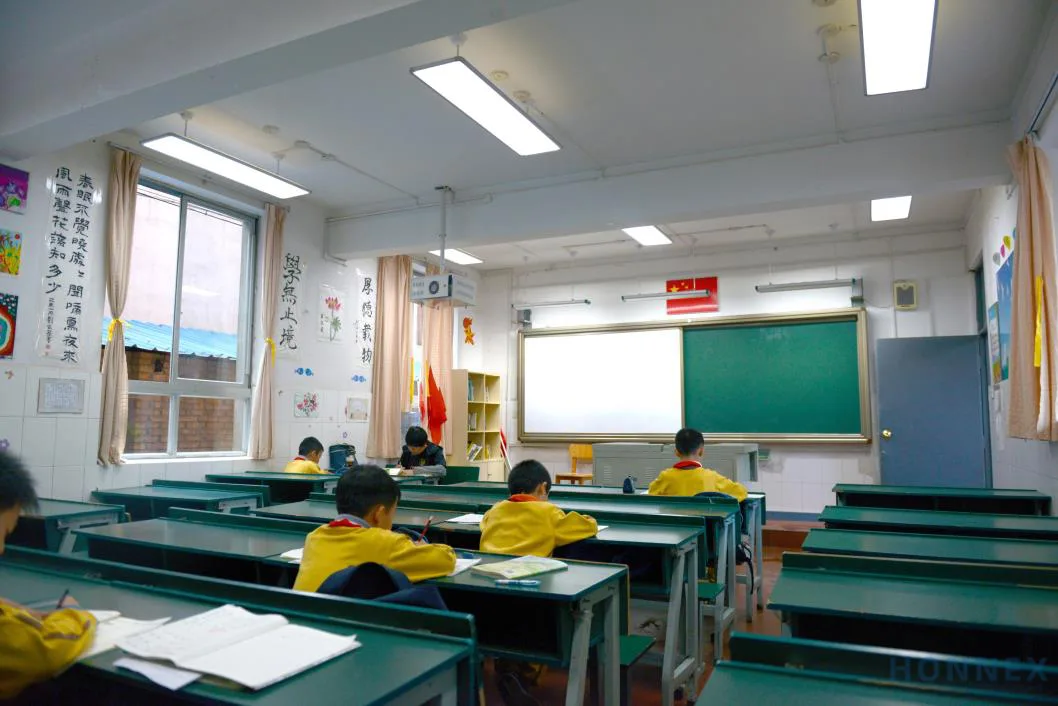

K-12 Classroom Lighting Retrofit
Replace fluorescent board-and-desk fittings with the SP135P + SP136P pair on the existing suspension points. SP135P mounts parallel to and above the writing board; SP136P units hang over the desks at the recommended 1.7 m light-surface-to-desk drop.
New-build School & Campus Projects
A matched two-luminaire specification for tenders that require a consistent photometric platform across board and desk zones — same 5,000 K CCT, same Ra>95+ rendering, same UGR<16 glare control, same IP40 and Class II rating.
Tutoring Centres, Lecture & Training Rooms
Smaller tutoring rooms use one SP135P plus a reduced SP136P array, while lecture halls and corporate training rooms scale the same pair up across larger board walls and seating rows.
Installation & Mounting Guide
Both SP135P and SP136P are Class II suspended luminaires. Installation must be carried out by a qualified electrician with the mains supply switched off. Suspension rods are not included with either series — order them separately according to the ceiling drop.
STEP 01
Plan Board and Desk Zones
Lay out SP136P positions on a regular grid over the desk area and place SP135P parallel to the writing board, typically one unit per 3–4 m of board length.
STEP 02
Order Suspension Rods
Rods are NOT included with either luminaire. Order SLZ ROD L 1000 fixed, SLZ ADJ ROD L 1000 or SLZ ADJ ROD L 1500 adjustable rods according to your ceiling drop.
STEP 03
Fix Ceiling Brackets
Mark suspension positions at approximately 650 mm rod spacing, drill locating holes and bolt the fixing brackets firmly to the ceiling structure.
STEP 04
Mount, Wire and Level
With the mains supply switched off, mount both luminaire types on their rods, connect L / N / PE to the driver terminals, then level each body and fully tighten all hex nuts.
Suspension Rod Accessories (order separately)
| 12NC | Description | Length | Pack |
|---|---|---|---|
| 911401903153 | SLZ ADJ ROD L 1000 | 0.5 – 1.0 m adjustable, white | 2 pcs / set |
| 911401903154 | SLZ ADJ ROD L 1500 | 0.75 – 1.5 m adjustable, white | 2 pcs / set |
| 911401903155 | SLZ ROD L 1000 | 1,000 mm fixed, aluminum | 2 pcs / set |
Safety Warning. Disconnect power before installation, inspection or removal. External earthing must be connected before use and maintained throughout the product's lifetime. The light source is non-user-replaceable; if the LED module reaches end-of-life, replace the entire luminaire. Installation must be performed by a qualified electrician in accordance with local electrical codes.
Complete Product Lineup
SP135P blackboard luminaire + 2 SP136P grille classroom luminaires. Suspension rods are ordered separately — see the accessory table above.
| 12NC | Description | Power | L × W × H | Output |
|---|---|---|---|---|
| 911401903088 | SP135P LED30S PSU BB → | 36 W | 1200×64×104 mm | 3,000 lm |
| 911401903089 | SP136P LED32S PSU CL → | 36 W | 1195×295×80 mm | 3,250 lm |
| 911401903090 | SP136P LED32S PSU CL UO → | 36 W | 1195×295×82 mm | 3,380 lm |
Also from PHILIPS Lighting Range
Frequently Asked Questions
What is the difference between the SP135P blackboard light and the SP136P classroom light?
They are two complementary luminaires, not alternatives. SP135P (12NC 911401903088) is a slim 1,200 × 64 × 104 mm batten that lights the writing-board plane with 3,000 lm at 85 lm/W. SP136P is a 1,195 × 295 mm grille panel for desk-plane illumination with 3,250 lm (CL) or 3,380 lm (CL UO). Both share the same full-spectrum 5,000 K, UGR<16, RG0 and IP40 family design, and a complete classroom uses both together.
How many units of each luminaire do I need for a standard classroom?
As a planning reference, a typical 9.2 × 7.0 m K-12 classroom uses a 3 × 3 or 4 × 3 array of SP136P (9 to 12 units) over the desks with 1 to 2 SP135P units over the writing board. Final quantities depend on ceiling height, board length and the target maintained illuminance — send us your room dimensions for a layout check.
Do both luminaires meet GB 50034 and EN 12464-1 classroom requirements?
The SP136P series holds CCC certification and is specified with maintained desk illuminance above 500 lux, uniformity (U0) above 0.75, power density ≤ 8 W/m², flicker index <0.001 and UGR<16. SP135P adds UGR<16 glare="" control="" at="" the="" board="" plane="" with="" ra="">96 and R9>93. Together they target the photometric, electrical and photobiological (RG0) requirements of both standards.
Are suspension rods included, and can SP135P and SP136P share the same rod type?
Suspension rods are NOT included with either luminaire and must be ordered separately. Three official accessories are available for both series: SLZ ADJ ROD L 1000 (12NC 911401903153, 0.5–1.0 m adjustable), SLZ ADJ ROD L 1500 (12NC 911401903154, 0.75–1.5 m adjustable) and SLZ ROD L 1000 (12NC 911401903155, 1,000 mm fixed). All are supplied 2 pcs/set.
Can I order SP135P and SP136P together on one purchase order?
Yes. Both series ship from Honnex Lighting and are commonly ordered together for school retrofit and new-build projects, giving one consistent photometric platform and one delivery. Contact sales02@honnexlighting.com for project pricing, layout assistance and quantity recommendations.
