PHILIPS Deep Recessed LED Downlight Series DN350

  1. Home
  2. Products
  3. PHILIPS indoor Lighting
  4. PHILIPS LED Downlight
  5. PHILIPS Deep Recessed LED Downlight Series DN350
  • PHILIPS Deep Recessed LED Downlight Series DN350

PHILIPS Deep Recessed LED Downlight Series DN350

  • Driver: External CC · Flicker-free
  • Lifetime: 30,000 hrs (L70B50)
  • UGR: < 19
  • CRI: ≥ 90
    • PHILIPS , DN350 , DOWNLIGHT , LED , Deep Recessed
    Inquiry Send Email

    Description

    PHILIPS Deep Recessed LED Downlight Series DN350 — UGR<19, 5 Cut-out Sizes | Honnex
    PHILIPS Authorized DN350 Series UGR < 19 CRI ≥ 90 IP54 Front Ring

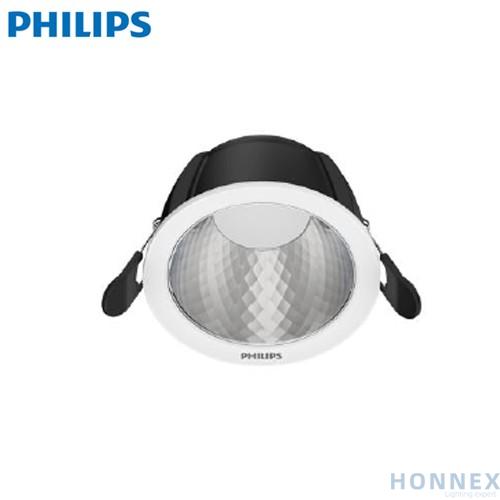

    PHILIPS Deep Recessed LED Downlight Series DN350

    Professional anti-glare recessed LED downlight with 5 cut-out sizes (D75 / D90 / D125 / D150 / D175), 7W to 32W power range, 680 to 3200 lumen output, and CRI≥90 museum-grade color rendering. Flicker-free external constant-current driver, UGR<19 across the full range, IP54 splash-proof front ring. Designed for residential, hospitality, and commercial interiors where visual comfort and color accuracy are critical.

    Power
    7 / 10 / 12 / 20 / 32 W
    Lumen
    680 – 3200 lm
    CCT
    3000K / 4000K / 6500K
    CRI
    ≥ 90
    Lifetime
    30,000 hrs L70B50

    Feature Highlights

    Five key reasons lighting designers, contractors, and end-users choose the PHILIPS DN350 deep recessed LED downlight series.

    UGR < 19 Anti-Glare Optical System

    Diamond-faceted reflector with deeply recessed LED module delivers UGR below 19 across the full 7W to 32W range. Eliminates direct glare in reading, dining, and office zones.

    5 Cut-out Sizes, 7 to 32 Watt

    One family covers D75, D90, D125, D150, and D175 mm cut-outs. Direct CFL-to-LED replacement for 2.5" to 7" legacy housings without ceiling re-work.

    CRI ≥ 90 Museum-Grade Color

    High-quality LED source with claimed CRI 90 restores true colors of skin tones, fabrics, art, and food. Critical for retail, gallery, and hospitality projects.

    IP54 Splash-Proof Front Ring

    Sealed front bezel rated IP54 against splashing water and dust. Suitable for bathrooms, kitchens, covered outdoor ceilings, and spa areas.

    Technical Specifications

    Unified parameter table across all 5 power variants. Values are per PHILIPS / Signify official datasheet 2026/May version.

    Parameter DN350N
    7W (D75)    		 DN350N
    10W (D90)    		 DN350B
    12W (D125)    		 DN350B
    20W (D150)    		 DN350B
    32W (D175)
    Optical
    Lumen Output680 lm980 lm1200 lm2000 lm3200 lm
    Efficacyup to 100 lm/W
    Color Temperature3000K (Warm White) / 4000K (Neutral White) / 6500K (Cool White)
    CRI≥ 90
    Beam Angle60°
    UGR< 19
    SDCM≤ 5
    Electrical
    Input Voltage220 – 240 V AC, 50 / 60 Hz
    Power Factor0.50.90.90.90.9
    Driver TypeExternal constant-current driver, flicker-free (ripple current < 1%)
    Surge ProtectionPer Signify standard driver specification
    Mechanical & Environmental
    Cut-out SizeØ 75 mmØ 90 mmØ 120 – 130 mmØ 145 – 155 mmØ 170 – 180 mm
    Product Size (D × H)Ø 82 × 52 mmØ 96 × 58 mmØ 144 × 73 mmØ 170 × 82 mmØ 195 × 89 mm
    Housing MaterialAluminum + Polycarbonate (PC)
    Body ColorSilver
    IP Rating (Front Ring)IP54
    Mounting TypeRecessed (嵌入式)
    Ambient Temperature-20 °C < Ta < 40 °C
    Rated Lifetime30,000 hrs L70B50 @ T25 °C

    Product Gallery

    Optical design, color rendering, and real installation scenarios for the DN350 series. 4 images courtesy of the official 2026 PHILIPS product brochure.

    PHILIPS DN350 complete package — anti-glare downlight, external driver, and branded retail box
    Complete Package — Downlight, Driver & Branded Box
    Each DN350 ships in a PHILIPS-branded retail box including the anti-glare downlight module and a flicker-free external constant-current driver, ready for recessed installation.
    PHILIPS DN350 rear housing and printed electrical specification label
    Rear Housing & Specification Label
    Die-cast aluminum rear housing with thermal ventilation slots and printed electrical specification label, engineered for a 30,000 hr L70B50 lifetime at T25 °C.
    PHILIPS DN350 recessed installation view showing spring clips and heat-sink fins on the rear
    Recessed Installation — Spring Clips & Heat-Sink
    Spring clips enable tool-free recessed mounting into plaster or gypsum ceilings, with deep-canister heat-sink fins for optimal thermal management.

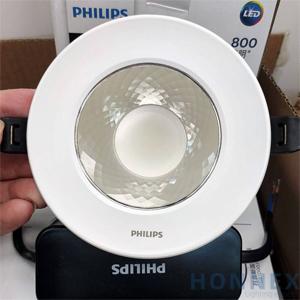

    PHILIPS DN350 front bezel showing diamond-faceted optical cavity and PHILIPS branding
    Diamond-Faceted Optical Cavity — PHILIPS Branded
    Deep-set diamond-faceted reflector cavity with PHILIPS-embossed front bezel delivers UGR < 19 anti-glare performance, crisp cut-off, and a controlled 60° beam.

    Complete Product Lineup

    All 15 in-stock 12NC codes from the May 2026 PHILIPS order guide. Click any Description to open the dedicated SKU product page with full specifications, dimensions, and ordering detail.

    DN350N — Narrow Form Factor (D75 / D90, Upgraded 2026) 6 SKUs
    12NC Description Cut-out Power CCT Lumen
    929004794110 DN350N LED7/WW 7W 220-240V D75 SV CN Ø 75 mm 7 W 3000K 680 lm
    929004794210 DN350N LED7/NW 7W 220-240V D75 SV CN Ø 75 mm 7 W 4000K 680 lm
    929004794310 DN350N LED7/CW 7W 220-240V D75 SV CN Ø 75 mm 7 W 6500K 680 lm
    929004794700 DN350N LED10/WW 10W 220-240V D90 SV CN Ø 90 mm 10 W 3000K 980 lm
    929004794810 DN350N LED10/NW 10W 220-240V D90 SV CN Ø 90 mm 10 W 4000K 980 lm
    929004794910 DN350N LED10/CW 10W 220-240V D90 SV CN Ø 90 mm 10 W 6500K 980 lm
    DN350B — Standard Form Factor (D125 / D150 / D175) 9 SKUs
    12NC Description Cut-out Power CCT Lumen
    929002557710 DN350B 12W 3000K D125 Ø 120 – 130 mm 12 W 3000K 1200 lm
    929002557810 DN350B 12W 4000K D125 Ø 120 – 130 mm 12 W 4000K 1200 lm
    929002557910 DN350B 12W 6500K D125 Ø 120 – 130 mm 12 W 6500K 1200 lm
    929002558310 DN350B 20W 3000K D150 Ø 145 – 155 mm 20 W 3000K 2000 lm
    929002558410 DN350B 20W 4000K D150 Ø 145 – 155 mm 20 W 4000K 2000 lm
    929002558510 DN350B 20W 6500K D150 Ø 145 – 155 mm 20 W 6500K 2000 lm
    929002558910 DN350B 32W 3000K D175 Ø 170 – 180 mm 32 W 3000K 3200 lm
    929002559010 DN350B 32W 4000K D175 Ø 170 – 180 mm 32 W 4000K 3200 lm
    929002559110 DN350B 32W 6500K D175 Ø 170 – 180 mm 32 W 6500K 3200 lm

    Also from PHILIPS Indoor Lighting Range

    Related PHILIPS / Signify fixtures stocked at Wenzhou Honnex Trading. Click any product to open its full specification page.

    PHILIPS Deep Recessed LED Spotlight Series RS216
    PHILIPS Deep Recessed LED Spotlight Series RS216
     PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
    PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
     PHILIPS BRP26X SmartBright LED Street Lighting Series
    PHILIPS BRP26X SmartBright LED Street Lighting Series
     PHILIPS WT198C GreenPerform Waterproof G3 Series
    PHILIPS WT198C GreenPerform Waterproof G3 Series
     PHILIPS BY778P GreenPerform Elite Highbay G2 Series
    PHILIPS BY778P GreenPerform Elite Highbay G2 Series
     PHILIPS GreenPerform Trunking G2 LL130X Series
    PHILIPS GreenPerform Trunking G2 LL130X Series
     PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
    PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
     PHILIPS BY518P SE GreenUp Round LED Highbay
    PHILIPS BY518P SE GreenUp Round LED Highbay

    Frequently Asked Questions

    Common technical and commercial questions from lighting designers, contractors, and procurement teams evaluating the PHILIPS DN350 series.

    What cut-out sizes are available in the PHILIPS DN350 series?
    The PHILIPS Deep Recessed LED Downlight Series DN350 covers 5 cut-out sizes: D75 (Ø 75 mm), D90 (Ø 90 mm), D125 (Ø 120 – 130 mm), D150 (Ø 145 – 155 mm), and D175 (Ø 170 – 180 mm). This range supports direct CFL-to-LED replacement of legacy 2.5" through 7" ceiling housings without cutting or re-finishing the ceiling.
    Is the PHILIPS DN350 downlight anti-glare?
    Yes. The DN350 uses a professional anti-glare optical design with a deeply recessed LED module and a diamond-faceted reflector, achieving UGR < 19 across the full 7W to 32W power range. This is suitable for reading, office, hospitality and residential use where visual comfort is critical.
    What is the difference between DN350N and DN350B?
    DN350N is the narrow-form upgrade version for D75 and D90 cut-outs (7W and 10W). DN350B is the standard-form version for D125, D150 and D175 cut-outs (12W, 20W and 32W). Both share the same anti-glare optical system, CRI≥90, IP54 front ring, and flicker-free external constant-current driver. The distinction is mechanical form factor optimized for each cut-out range.
    Is the PHILIPS DN350 downlight flicker-free?
    Yes. The DN350 uses an external constant-current driver with ripple current below 1%, making it effectively flicker-free per Signify specification. This reduces eye strain during prolonged exposure and is suitable for residential reading rooms, home offices, classrooms, and hospitality settings.
    Where can I buy the PHILIPS DN350 and what warranty applies?
    Wenzhou Honnex Trading Co., Ltd. is the authorized PHILIPS lighting distributor in China for the DN350 series. All 15 SKUs come with original PHILIPS / Signify warranty (terms per Signify standard product warranty). For quotation, technical datasheet, IES files, and bulk pricing, contact .

    Authoritative Sources & Standards

    Independent references for product certification, brand verification, and lighting industry standards. These external resources back the technical claims on this page.

    P Philips Lighting Official
    Brand & product verification         S Signify N.V.
    PHILIPS parent company         I IEC Standards
    LED & luminaire safety standards

    Request a Quotation for PHILIPS DN350 Downlights

    Wenzhou Honnex Trading Co., Ltd. has been an authorized PHILIPS lighting distributor for over 15 years. We provide original PHILIPS / Signify products with full warranty, IES files, technical datasheets, and bulk pricing for projects, distributors, and contractors.
