Description
SIA · Interact Smart

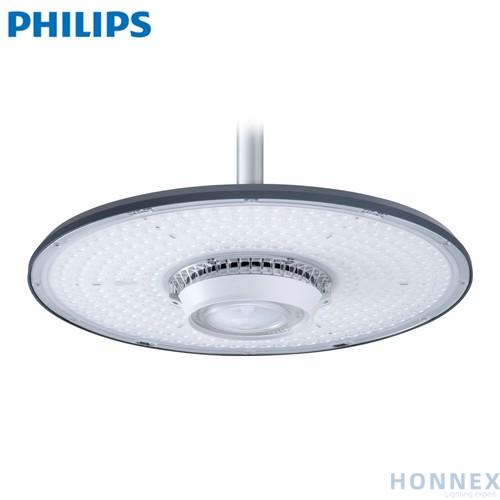

PHILIPS BY778X LED150/CW SIA WB
78W/82W 6500K (CW) Wide Beam 90° LED Highbay — 180 lm/W, 100K hrs
Technical Specifications
| Optical | |
| Group | Optical |
| Beam Angle | Wide Beam 90° |
| System Efficacy | 180 lm/W |
| CCT | 6500K (CW) |
| CRI | 80 |
| SDCM | 5 SDCM |
| UGR | UGR 25 (WB) / 22 (NB) |
| Electrical | |
| Group | Electrical |
| Power | 78W/82W |
| Input Voltage | 220–240V, 50/60 Hz |
| Control | Interact Ready (Integrated SNH210IA Sensor) |
| Power Factor | 0.95 |
| Surge | 4KV/4KV |
| THD | ≤10% |
| Mechanical | |
| Group | Mechanical |
| IP/IK | IP65 / IK05 |
| Insulation | Class I |
| Operating Temp | -30°C to +50°C (Ta 35°C) |
| Lifetime | 100K hrs L70B50 @35°C |
| Warranty | 5 Years |
| Mounting | Suspension (hook), pipe (G1/2), bracket |
| 12NC | 911401632409 |
Product Gallery
BY778P Series — Side Profile
Suspension mount with cable entry, finless IP66 housing
BY778P Series — Alternate Angle
Smooth dust-resistant design, easy-clean surface
BY778P Standard (PSU/PSD) — Bottom View
Fresnel lens optic, 90° WB / 55° NB beam options
BY778X Interact (SIA) — Bottom View
Integrated SNH210IA sensor for wireless smart control
Complete Product Lineup
| 12NC | Description | Specifications |
|---|---|---|
| LED100 Series | ||
| 911401631809 | BY778X LED100/NW SIA WB → | 55W, 10000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401631909 | BY778X LED100/NW SIA NB → | 55W, 10000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401632009 | BY778X LED100/CW SIA WB → | 55W, 10000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401632109 | BY778X LED100/CW SIA NB → | 55W, 10000lm, 6500K, Interact, Narrow Beam, with Hook |
| LED150 Series | ||
| 911401632209 | BY778X LED150/NW SIA WB → | 82W, 15000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401632309 | BY778X LED150/NW SIA NB → | 82W, 15000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401632409 | BY778X LED150/CW SIA WB → | 82W, 15000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401632509 | BY778X LED150/CW SIA NB → | 82W, 15000lm, 6500K, Interact, Narrow Beam, with Hook |
| LED200 Series | ||
| 911401632609 | BY778X LED200/NW SIA WB → | 110W, 20000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401632709 | BY778X LED200/NW SIA NB → | 110W, 20000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401632809 | BY778X LED200/CW SIA WB → | 110W, 20000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401632909 | BY778X LED200/CW SIA NB → | 110W, 20000lm, 6500K, Interact, Narrow Beam, with Hook |
| LED250 Series | ||
| 911401633009 | BY778X LED250/NW SIA WB → | 137W, 25000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401633109 | BY778X LED250/NW SIA NB → | 137W, 25000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401633209 | BY778X LED250/CW SIA WB → | 137W, 25000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401633309 | BY778X LED250/CW SIA NB → | 137W, 25000lm, 6500K, Interact, Narrow Beam, with Hook |
| LED280 Series | ||
| 911401639109 | BY778X LED280/NW SIA WB → | 153W, 28000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401639209 | BY778X LED280/NW SIA NB → | 153W, 28000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401639309 | BY778X LED280/CW SIA WB → | 153W, 28000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401639409 | BY778X LED280/CW SIA NB → | 153W, 28000lm, 6500K, Interact, Narrow Beam, with Hook |
| LED350 Series | ||
| 911401633809 | BY778X LED350/NW SIA WB → | 196W, 35000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401633909 | BY778X LED350/NW SIA NB → | 196W, 35000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401634009 | BY778X LED350/CW SIA WB → | 196W, 35000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401634109 | BY778X LED350/CW SIA NB → | 196W, 35000lm, 6500K, Interact, Narrow Beam, with Hook |
| LED400 Series | ||
| 911401634209 | BY778X LED400/NW SIA WB → | 222W, 40000lm, 4000K, Interact, Wide Beam, with Hook |
| 911401634309 | BY778X LED400/NW SIA NB → | 222W, 40000lm, 4000K, Interact, Narrow Beam, with Hook |
| 911401634409 | BY778X LED400/CW SIA WB → | 222W, 40000lm, 6500K, Interact, Wide Beam, with Hook |
| 911401634509 | BY778X LED400/CW SIA NB → | 222W, 40000lm, 6500K, Interact, Narrow Beam, with Hook |
Also from PHILIPS Lighting Range
PHILIPS LL130X GreenPerform Trunking G2
PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
PHILIPS BY518P SE GreenUp Round LED Highbay
PHILIPS BVP150 G4 LED Floodlight Series
PHILIPS WT068C LED Batten NW LED56 L1500
PHILIPS BVP171 LED Floodlight 30W WB Grey
PHILIPS MAS LEDspotLV D 20-100W AR111 24D
PHILIPS MASTER LED 7-50W COB MR16 10D Dim
Frequently Asked Questions
What is the PHILIPS BY778X LED150/CW SIA WB?
The PHILIPS BY778X LED150/CW SIA WB is a 78W/82W 6500K (CW) Wide Beam 90° LED highbay from the GreenPerform Elite Highbay G2 series. Interact Ready (Integrated SNH210IA Sensor), IP65 / IK05, 100K hrs L70B50 lifetime.
Which mounting options are available?
Hook suspension (standard), pipe mount (G1/2), surface/wall mount via BY778Z Bracket (12NC: 911401637409). Safety cable ≥SUS304 Ø3mm recommended for suspended installations.
How does this compare to BY718P?
G2: 190 lm/W vs 160 lm/W (+19%), 40K lm vs 30K lm (+33%), 100K hrs vs 75K hrs (+33%), IP66 vs IP65, flicker-free SVM<0.4, 5-year vs 3-year warranty.
