PHILIPS Suspended LED Classroom Light SP130S LED36/950 W30L120 911401905043

  1. Home
  2. Products
  3. PHILIPS indoor Lighting
  4. PHILIPS LED Panel
  5. PHILIPS Suspended LED Classroom Light SP130S LED36/950 W30L120 911401905043
  • PHILIPS Suspended LED Classroom Light SP130S LED36/950 W30L120 911401905043 - Image 1

PHILIPS Suspended LED Classroom Light SP130S LED36/950 W30L120 911401905043

  • Product Item:911401905043
  • Wattage:36W
  • System Efficacy:100lm/W
  • CCT:4000K-5000K
  • Certification:CCC+IP40+RG0
  • PHILIPS , SP130P , Classroom Light , Suspended , LED , Anti-glare
    Inquiry Send Email

    Description

    PHILIPS SP130S Suspended LED Classroom Light 36W 5000K 95, UGR<19, IP40. In stock at Honnex Lighting."> 95, UGR<19, IP40. In stock at Honnex Lighting."> 95, UGR<19, IP40. In stock at Honnex Lighting.">

    PHILIPS Suspended LED Classroom Light Series SP130S — SP130S LED36/950 W30L120

    PHILIPSSignify36 W3600 lm5000 KRa > 95UGR < 19IP40CCC

    5000 K (Cool White) variant of the PHILIPS SP130S 36 W suspended LED classroom light — 1195 × 295 × 57 mm anti-glare micro-prismatic panel, UGR < 19, Ra > 95, 3600 lm, IP40, engineered by Signify for K-12 classrooms and lecture halls.

    Product Details

    12NC
    911401905043
    Description
    SP130S LED36/950 W30L120
    Power
    36 W
    Lumen Output
    3600 lm
    Color Temperature
    5000 K (Cool White)
    Beam Angle
    94.6° (batwing)
    Dimensions
    1195 × 295 × 57 mm
    Mounting
    Suspended — rods ordered separately
    Net Weight
    1.67 kg
    Certification
    CCC · IP40 · RG0

    Installation & Wiring

    Mounting
    Rigid suspended ceiling mounting at ~650 mm rod spacing. Suspension rods are not included in the carton — order separately for your ceiling height (φ12.7 mm tube, M12 × 1.25 mm thread, 14 mm threaded length).
    Wiring
    220-240 V ~ mains to the factory-wired terminals (L / N / PE) as shown on the luminaire label. Class II double-insulated; double-check polarity before power-up.
    Maintenance
    External independent driver is replaceable without removing the luminaire from the rods. The light source is non-user-replaceable.
    Safety
    Installation by a qualified electrician only, mains supply switched off; protect the PS optical surface during installation.

    Technical Specifications

    Parameter SP130S LED36/950 W30L120
    Optical
    Lumen Output 3600 lm
    System Efficacy 100 lm / W
    Correlated Color Temperature 5000 K (Cool White)
    Color Tolerance SDCM < 5
    Color Rendering Ra > 95, R9 > 90
    UGR (Unified Glare Rating) < 19 (≤ 16 in classroom mock-up)
    Beam Angle 90 ± 10% (94.6° measured average)
    Lumen Maintenance 97.88% @ 3,000 h
    Photobiological Safety RG0 (IEC/TR 62778)
    Flicker Metrics PST < 1 · SVM < 0.4 · MD < 0.2%
    Electrical
    Rated Power 36 W
    Rated Voltage 220-240 V ~, 50 / 60 Hz
    Rated Current 0.17 A
    Power Factor PF > 0.95
    Total Harmonic Distortion THD ≤ 15%
    Surge Protection 1.5 kV (L-N)
    Insulation Class Class II
    Wiring Termination Type X (non-replaceable, factory-wired)
    Driver External independent driver, replaceable
    Mechanical
    Housing Material Cold-rolled steel housing + aluminium frame + PS micro-prism plate + PS diffuser
    Body Color RAL 9003 (Signal White)
    Dimensions (L × W × H) 1195 × 295 × 57 mm (incl. external driver)
    Net Weight 1.67 kg
    Mounting Method Suspended (rods ordered separately)
    IP Rating IP40
    Operating Temperature -20 °C to +40 °C
    Lifetime 50,000 h @ L70B50 @ Ta 25°C
    Switching Cycles > 25,000
    Certification CCC · RoHS

    Product Gallery

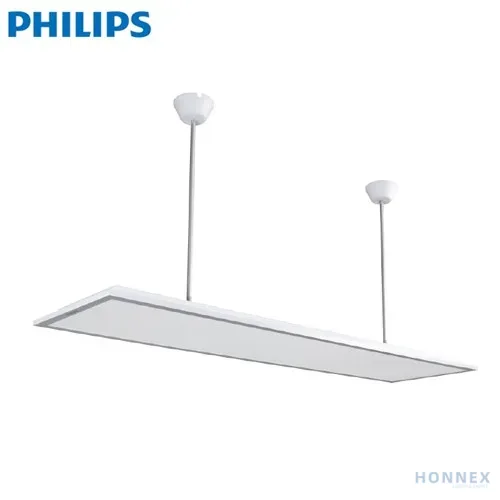

    PHILIPS SP130S suspended LED classroom light fixture - product hero view
    SP130S 36W Suspended LED Classroom Light
    1195 × 295 × 57 mm rectangular anti-glare panel with suspension rods
    PHILIPS SP130S dimensions drawing - top view, side view, front view
    Product Dimensions
    L 1195 × W 295 × H 57 mm (including external driver)
    PHILIPS SP130S polar photometric distribution diagram with 94.6 degree beam angle
    Photometric Distribution
    Average beam angle 94.6° — batwing distribution for uniform classroom illumination
    PHILIPS SP130S internal construction with steel housing, aluminium frame, LED strips and PS diffuser
    Internal Construction
    Steel housing + LED strips + light guide + PS micro-prism plate + PS diffuser

    Complete Product Lineup

    12NC Description Power CCT Lumen
    911401905043 SP130S LED36/950 W30L120 → 36 W 5000 K (CW) 3600 lm
    911401906112 SP130S LED36/940 W30L120 → 36 W 4000 K (NW) 3600 lm

    Also from PHILIPS Lighting Range

    Explore other PHILIPS indoor, outdoor and industrial lighting solutions available at Honnex Lighting.

    PHILIPS CertaDrive 24VDC Constant Voltage LED Driver Series SPS
    PHILIPS CertaDrive 24VDC Constant Voltage LED Driver Series SPS
    PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B
    PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B
    PHILIPS MASTER LEDtube UltraEfficient Series T5
    PHILIPS MASTER LEDtube UltraEfficient Series T5
    PHILIPS CorePro LED HID SON-T TrueForce Core LED Road Series
    PHILIPS CorePro LED HID SON-T TrueForce Core LED Road Series
    PHILIPS Deep Recessed LED Downlight Series DN350
    PHILIPS Deep Recessed LED Downlight Series DN350
    PHILIPS Deep Recessed LED Spotlight Series RS216
    PHILIPS Deep Recessed LED Spotlight Series RS216
    PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
    PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
    PHILIPS BRP26X SmartBright LED Street Lighting Series
    PHILIPS BRP26X SmartBright LED Street Lighting Series

    Frequently Asked Questions

    Why choose the 5000 K (cool white) SP130S variant for a classroom?

    5000 K renders a crisp, daylight-like tone that many schools prefer because it supports alertness during morning and afternoon lessons and makes whiteboard content appear cleaner. Photometric quality is identical to the 4000 K version — UGR < 19 (≤ 16 in classroom mock-up), Ra > 95, R9 > 90 and flicker metrics PST < 1, SVM < 0.4, modulation depth < 0.2% — so the choice is purely about the color tone your curriculum or local specification prefers.

    What is in the carton and are suspension rods included?

    Per the official packing list, each SP130S carton contains: 1 × luminaire body, 2 × ceiling mounting plates, 2 × mounting ear brackets, 5 × expansion bolts (φ8 × 40 mm), 6 × M5 hex nuts, 2 × M5 × 12 mm hex bolts and 1 × user manual. Suspension rods are NOT included — for dropped mounting please order rods separately (recommended spec: φ12.7 mm tube, M12 × 1.25 mm thread, 14 mm threaded length).

    How long does SP130S last and how is it maintained?

    Rated lifetime is 50,000 h @ L70B50 @ Ta 25°C with > 25,000 switching cycles, matching typical 10-year school renovation cycles. The external driver is replaceable without removing the luminaire from the suspension rods, and the IP40 housing keeps dust and insects out of the optical chamber. The light source itself is non-user-replaceable.
