Description
PHILIPS Suspended LED Classroom Light Series SP130S — SP130S LED36/940 W30L120
PHILIPSSignify36 W3600 lm4000 KRa > 95UGR < 19IP40CCC
4000 K (Neutral White) variant of the PHILIPS SP130S 36 W suspended LED classroom light — 1195 × 295 × 57 mm anti-glare micro-prismatic panel, UGR < 19, Ra > 95, 3600 lm, IP40, engineered by Signify for K-12 classrooms and lecture halls.
Product Details
- 12NC
- 911401906112
- Description
- SP130S LED36/940 W30L120
- Power
- 36 W
- Lumen Output
- 3600 lm
- Color Temperature
- 4000 K (Neutral White)
- Beam Angle
- 94.6° (batwing)
- Dimensions
- 1195 × 295 × 57 mm
- Mounting
- Suspended — rods ordered separately
- Net Weight
- 1.67 kg
- Certification
- CCC · IP40 · RG0
Installation & Wiring
- Mounting
- Rigid suspended ceiling mounting at ~650 mm rod spacing. Suspension rods are not included in the carton — order separately for your ceiling height (φ12.7 mm tube, M12 × 1.25 mm thread, 14 mm threaded length).
- Wiring
- 220-240 V ~ mains to the factory-wired terminals (L / N / PE) as shown on the luminaire label. Class II double-insulated; double-check polarity before power-up.
- Maintenance
- External independent driver is replaceable without removing the luminaire from the rods. The light source is non-user-replaceable.
- Safety
- Installation by a qualified electrician only, mains supply switched off; protect the PS optical surface during installation.
Technical Specifications
| Parameter | SP130S LED36/940 W30L120 |
|---|---|
| Optical | |
| Lumen Output | 3600 lm |
| System Efficacy | 100 lm / W |
| Correlated Color Temperature | 4000 K (Neutral White) |
| Color Tolerance | SDCM < 5 |
| Color Rendering | Ra > 95, R9 > 90 |
| UGR (Unified Glare Rating) | < 19 (≤ 16 in classroom mock-up) |
| Beam Angle | 90 ± 10% (94.6° measured average) |
| Lumen Maintenance | 97.88% @ 3,000 h |
| Photobiological Safety | RG0 (IEC/TR 62778) |
| Flicker Metrics | PST < 1 · SVM < 0.4 · MD < 0.2% |
| Electrical | |
| Rated Power | 36 W |
| Rated Voltage | 220-240 V ~, 50 / 60 Hz |
| Rated Current | 0.17 A |
| Power Factor | PF > 0.95 |
| Total Harmonic Distortion | THD ≤ 15% |
| Surge Protection | 1.5 kV (L-N) |
| Insulation Class | Class II |
| Wiring Termination | Type X (non-replaceable, factory-wired) |
| Driver | External independent driver, replaceable |
| Mechanical | |
| Housing Material | Cold-rolled steel housing + aluminium frame + PS micro-prism plate + PS diffuser |
| Body Color | RAL 9003 (Signal White) |
| Dimensions (L × W × H) | 1195 × 295 × 57 mm (incl. external driver) |
| Net Weight | 1.67 kg |
| Mounting Method | Suspended (rods ordered separately) |
| IP Rating | IP40 |
| Operating Temperature | -20 °C to +40 °C |
| Lifetime | 50,000 h @ L70B50 @ Ta 25°C |
| Switching Cycles | > 25,000 |
| Certification | CCC · RoHS |
Product Gallery

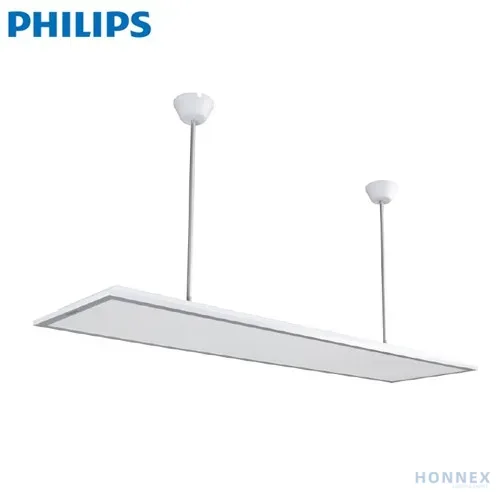

SP130S 36W Suspended LED Classroom Light
1195 × 295 × 57 mm rectangular anti-glare panel with suspension rods
Product Dimensions
L 1195 × W 295 × H 57 mm (including external driver)
Photometric Distribution
Average beam angle 94.6° — batwing distribution for uniform classroom illumination
Internal Construction
Steel housing + LED strips + light guide + PS micro-prism plate + PS diffuser
Complete Product Lineup
| 12NC | Description | Power | CCT | Lumen |
|---|---|---|---|---|
| 911401905043 | SP130S LED36/950 W30L120 → | 36 W | 5000 K (CW) | 3600 lm |
| 911401906112 | SP130S LED36/940 W30L120 → | 36 W | 4000 K (NW) | 3600 lm |
Also from PHILIPS Lighting Range
Explore other PHILIPS indoor, outdoor and industrial lighting solutions available at Honnex Lighting.
PHILIPS CertaDrive 24VDC Constant Voltage LED Driver Series SPS
PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B
PHILIPS MASTER LEDtube UltraEfficient Series T5
PHILIPS CorePro LED HID SON-T TrueForce Core LED Road Series
PHILIPS Deep Recessed LED Downlight Series DN350
PHILIPS Deep Recessed LED Spotlight Series RS216
PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
PHILIPS BRP26X SmartBright LED Street Lighting Series
Frequently Asked Questions
Why choose the 4000 K (neutral white) SP130S variant for a classroom?
4000 K is the most widely recommended neutral tone for teaching spaces — it sits between warm and cool white, so it keeps skin tones and wood finishes natural while staying comfortable for prolonged reading, writing and screen work. All protective metrics are identical to the 5000 K version: UGR < 19 (≤ 16 in classroom mock-up), Ra > 95, R9 > 90, flicker PST < 1 / SVM < 0.4 / modulation depth < 0.2%.
How does the SP130S control glare in a classroom?
The PS micro-prismatic light guide plate distributes light with a batwing 94.6° beam so brightness is spread evenly across desks instead of beaming into students’ eyes. UGR is < 19 in the standard test and ≤ 16 in classroom mock-up simulations, below the 19 limit recommended by EN 12464-1 and China’s GB 50034 for teaching spaces.
What is in the carton and are suspension rods included?
Each SP130S carton contains: 1 × luminaire body, 2 × ceiling mounting plates, 2 × mounting ear brackets, 5 × expansion bolts (φ8 × 40 mm), 6 × M5 hex nuts, 2 × M5 × 12 mm hex bolts and 1 × user manual. Suspension rods are NOT included — order rods separately for dropped mounting (recommended spec: φ12.7 mm tube, M12 × 1.25 mm thread, 14 mm threaded length).
