Description
PHILIPS12 NC 9114019004229W3000K24°D75Black (BK)

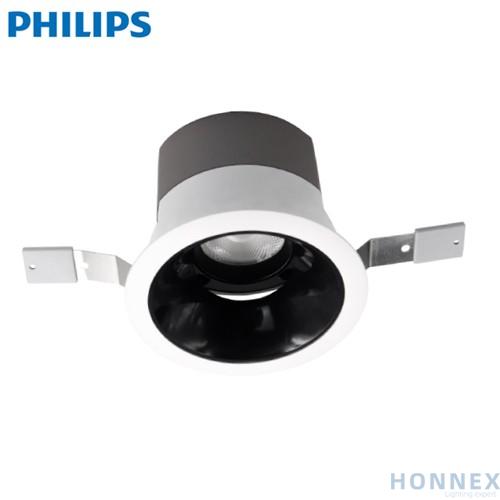

PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B — D75 9W 3000K 24° BK
RS039B RC Rd D75 9W 3000K 24D BK — delivers 720lm from a slim recessed housing with a deep-set anti-glare optic, CRI 90 and 0–25° tiltable accent. 12 NC 911401900422.
Product Details
- 12 NC
- 911401900422
- Description
- RS039B RC Rd D75 9W 3000K 24D BK
- Wattage
- 9W
- Cut-out
- D75
- Luminous Flux
- 720lm
- Beam Angle
- 24°
- Colour Temp
- 3000K
- Reflector
- Black (BK)
Installation & Wiring (for this SKU)
9W / D75
Φ 85 × 62 mm housing. Spring-clip recessed.
Ceiling 7–15 mm
Slim 62–85 mm housing fits shallow ceilings.
220 V Integrated
Direct mains L/N connection, no external driver.
| Connection | Wire | Terminal | Notes |
|---|---|---|---|
| Live (L) | Brown / Red | Driver L | Switched mains 220 V / 50 Hz |
| Neutral (N) | Blue / Black | Driver N | Neutral return |
| Earth | — | — | Class II luminaire, no protective earth required |
Recommended cut-out tolerance ±1 mm. Confirm ceiling thickness falls within 7–15 mm before drilling. Spring clips should fully engage with ceiling board to support fixture weight (157 g).
⚠ SKU-Specific Warnings
- Verify the mains supply is switched off at the distribution board before any wiring work.
- This RS039B 9W D75 model is non-dimmable. Do not connect to TRIAC or 0-10V dimmers.
- For indoor dry-location use only. IP20 rating does not allow bathroom or outdoor installation.
- Reflector finish: Black (BK) — ensure replacement parts match.
Technical Specifications
| Optical | |
| Light Output (±10%) | 720lm |
| System Efficacy (±10%) | 80 lm / W |
| Colour Temperature | 3000K |
| Colour Rendering | CRI ≥ 90, R9 ≥ 50 |
| Colour Consistency | SDCM ≤ 5 |
| Beam Angle | 24° ±3° |
| UGR (Glare Rating) | 24°: UGR ≤ 16; 36°: UGR ≤ 15 |
| Cut-off Angle | 54° |
| Peak Intensity (±10%) | 24°: 2800 cd; 36°: 1450 cd |
| Optical System | Lens + Black reflector |
| Electrical | |
| Input Voltage | 220 V |
| Frequency | 50 Hz |
| Power Draw | 9W |
| Protection Class | Class II |
| Power Factor | ≥ 0.5 |
| Flicker | Flicker-free (PST ≤ 1, SVM ≤ 1) |
| Mechanical | |
| Housing Material | Metal heatsink + metal front ring |
| Housing Finish | Silver-grey body, white front ring |
| Reflector | Black (anti-glare optimised) |
| Mounting Type | Recessed, spring clip |
| Tilt Range | 0–25° vertical (downlight-spotlight dual use) |
| Cut-out | D75 |
| Luminaire Size | Φ 85 × 62 mm |
| Net Weight | 157 g |
| Salt Spray | 48 H |
| IP Rating | IP20 |
| Impact Resistance | IK03 |
| Certification | CCC |
Product Gallery
RS039B family overview, anti-glare comparison and installation reference.
The Complete RS039B Family
Three wattages and two cut-out sizes share one slim all-metal design with an integrated driver — covering everything from compact bedrooms to open-plan living areas in a single product platform.
Anti-glare, Tested Side by Side
The deep-set optic hides the LED chip from direct view and absorbs stray light, so the beam stays clean, the wall wash stays smooth, and the light remains comfortable even when you look up.
Build Your Own Combination
Pick the beam angle that matches your space — 24° to accent art and reading corners, 36° to wash hallways and feature walls — then choose warm 3000K or neutral 4000K light and a black or white reflector to suit your ceiling.
Simple Recessed Installation
One spring-clip design fits ceilings from 7 to 15 mm thick, with a D75 hole for 9W / 11W models and D95 for 15W. The integrated driver wires straight into 220V mains — no external components needed.
Complete Product Lineup
All 16 RS039B SKUs grouped by wattage. Click any row to open its dedicated product page.
| 12NC | Description | Cut-out | Power | CCT | Lumen |
|---|---|---|---|---|---|
| 9W models | |||||
| 911401900422 | RS039B RC Rd D75 9W 30K 24D BK | D75 | 9W | 3000K | 720lm |
| 911401900423 | RS039B RC Rd D75 9W 40K 24D BK | D75 | 9W | 4000K | 720lm |
| 911401900424 | RS039B RC Rd D75 9W 30K 36D BK | D75 | 9W | 3000K | 720lm |
| 911401900425 | RS039B RC Rd D75 9W 40K 36D BK | D75 | 9W | 4000K | 720lm |
| 911401900426 | RS039B RC Rd D75 9W 30K 24D WH | D75 | 9W | 3000K | 720lm |
| 911401900427 | RS039B RC Rd D75 9W 40K 24D WH | D75 | 9W | 4000K | 720lm |
| 911401900428 | RS039B RC Rd D75 9W 30K 36D WH | D75 | 9W | 3000K | 720lm |
| 911401900429 | RS039B RC Rd D75 9W 40K 36D WH | D75 | 9W | 4000K | 720lm |
| 11W models | |||||
| 911401904012 | RS039B RC Rd D75 11W 30K 24D BK | D75 | 11W | 3000K | 880lm |
| 911401904013 | RS039B RC Rd D75 11W 40K 24D BK | D75 | 11W | 4000K | 880lm |
| 911401904014 | RS039B RC Rd D75 11W 30K 24D WH | D75 | 11W | 3000K | 880lm |
| 911401904015 | RS039B RC Rd D75 11W 40K 24D WH | D75 | 11W | 4000K | 880lm |
| 15W models | |||||
| 911401903405 | RS039B RC Rd D95 15W 30K 24D BK | D95 | 15W | 3000K | 1200lm |
| 911401903406 | RS039B RC Rd D95 15W 40K 24D BK | D95 | 15W | 4000K | 1200lm |
| 911401903407 | RS039B RC Rd D95 15W 30K 24D WH | D95 | 15W | 3000K | 1200lm |
| 911401903408 | RS039B RC Rd D95 15W 40K 24D WH | D95 | 15W | 4000K | 1200lm |
Also from PHILIPS Lighting Range
Other PHILIPS architectural, industrial and outdoor luminaires available from Honnex Lighting.
PHILIPS Deep Recessed LED Downlight Series DN350
PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
PHILIPS BRP26X SmartBright LED Street Lighting Series
PHILIPS WT198C GreenPerform Waterproof G3 Series
PHILIPS BY778P GreenPerform Elite Highbay G2 Series
PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
PHILIPS BY518P SE GreenUp Round LED Highbay
PHILIPS BVP150 G4 LED Floodlight Series
Frequently Asked Questions
What do the codes BK / WH mean in this 12NC?
BK = Black reflector (anti-glare optimised), WH = White reflector (invisible trim look). The reflector is field-replaceable and fits both BK and WH SKUs of the same cut-out.
Is this model CCC-certified?
Yes, all RS039B SKUs carry mandatory China Compulsory Certification (CCC) and meet Signify Class-II insulation classification. Each unit ships in Signify-original PHILIPS-marked packaging with a laser-engraved 12NC code.
What is the warranty term?
RS039B carries a standard 3-year manufacturer warranty against defects in materials and workmanship under normal residential use conditions. Extended warranty terms are available for commercial project orders.
