WENZHOU HONNEX TRADING CO.,LTD

PHILIPS Slim Recessed Anti-glare LED Spotlight RS039B RC Rd D75 11W 30K 24D WH 911401904014

  1. Home
  2. Products
  3. PHILIPS indoor Lighting
  4. PHILIPS LED Spot Light
  5. PHILIPS Slim Recessed Anti-glare LED Spotlight RS039B RC Rd D75 11W 30K 24D WH 911401904014
  • PHILIPS Slim Recessed Anti-glare LED Spotlight RS039B RC Rd D75 11W 30K 24D WH 911401904014

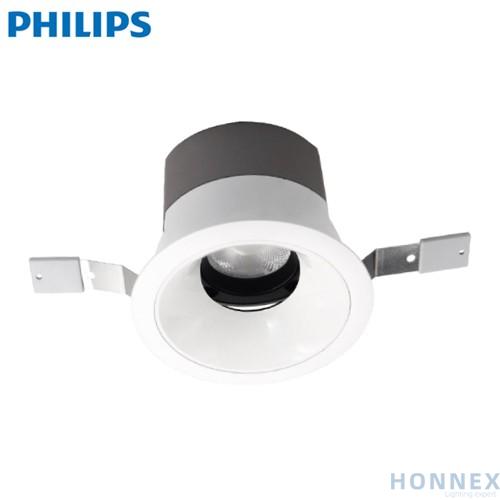

PHILIPS Slim Recessed Anti-glare LED Spotlight RS039B RC Rd D75 11W 30K 24D WH 911401904014

  • Product Item：911401904014
  • UGR: ≤ 16 (24°) / ≤ 15 (36°)
  • Beam Angle: 24° / 36° (9W) · 24° (11W/15W)
  • Cut-out: D75 (9W/11W) · D95 (15W)
  • UGR: ≤ 16 (24°) / ≤ 15 (36°)
    • PHILIPS , SPOTLIGHT , RS039B , Recessed Anti-glare
    Inquiry Send Email

    Description

    PHILIPS12 NC 91140190401411W3000K24°D75White (WH)

    PHILIPS Slim Recessed Anti-glare LED Spotlight Series RS039B — D75 11W 3000K 24° WH

    RS039B RC Rd D75 11W 3000K 24D WH — delivers 880lm from a slim recessed housing with a deep-set anti-glare optic, CRI 90 and 0–25° tiltable accent. 12 NC 911401904014.

    Product Details

    12 NC
    911401904014
    Description
    RS039B RC Rd D75 11W 3000K 24D WH
    Wattage
    11W
    Cut-out
    D75
    Luminous Flux
    880lm
    Beam Angle
    24°
    Colour Temp
    3000K
    Reflector
    White (WH)

    Installation & Wiring (for this SKU)

    11W / D75
    Φ 85 × 70 mm housing. Spring-clip recessed.
    Ceiling 7–15 mm
    Slim 62–85 mm housing fits shallow ceilings.
    220 V Integrated
    Direct mains L/N connection, no external driver.
    ConnectionWireTerminalNotes
    Live (L)Brown / RedDriver LSwitched mains 220 V / 50 Hz
    Neutral (N)Blue / BlackDriver NNeutral return
    Earth——Class II luminaire, no protective earth required

    Recommended cut-out tolerance ±1 mm. Confirm ceiling thickness falls within 7–15 mm before drilling. Spring clips should fully engage with ceiling board to support fixture weight (184 g).

    ⚠ SKU-Specific Warnings
    • Verify the mains supply is switched off at the distribution board before any wiring work.
    • This RS039B 11W D75 model is non-dimmable. Do not connect to TRIAC or 0-10V dimmers.
    • For indoor dry-location use only. IP20 rating does not allow bathroom or outdoor installation.
    • Reflector finish: White (WH) — ensure replacement parts match.

    Technical Specifications

    Optical
    Light Output (±10%)880lm
    System Efficacy (±10%)80 lm / W
    Colour Temperature3000K
    Colour RenderingCRI ≥ 90, R9 ≥ 50
    Colour ConsistencySDCM ≤ 5
    Beam Angle24° ±3°
    UGR (Glare Rating)24°: UGR ≤ 11
    Cut-off Angle53°
    Peak Intensity (±10%)24°: 2700 cd
    Optical SystemLens + White reflector
    Electrical
    Input Voltage220 V
    Frequency50 Hz
    Power Draw11W
    Protection ClassClass II
    Power Factor≥ 0.5
    FlickerFlicker-free (PST ≤ 1, SVM ≤ 1)
    Mechanical
    Housing MaterialMetal heatsink + metal front ring
    Housing FinishSilver-grey body, white front ring
    ReflectorWhite (invisible trim)
    Mounting TypeRecessed, spring clip
    Tilt Range0–25° vertical (downlight-spotlight dual use)
    Cut-outD75
    Luminaire SizeΦ 85 × 70 mm
    Net Weight184 g
    Salt Spray48 H
    IP RatingIP20
    Impact ResistanceIK03
    CertificationCCC

    Product Gallery

    RS039B family overview, anti-glare comparison and installation reference.

    PHILIPS RS039B LED spotlight family — 9W, 11W and 15W slim recessed anti-glare models with D75 and D95 cut-outs
    The Complete RS039B Family
    Three wattages and two cut-out sizes share one slim all-metal design with an integrated driver — covering everything from compact bedrooms to open-plan living areas in a single product platform.
    RS039B deep-set anti-glare lens versus standard LED spotlight — cleaner wall-wash and lower UGR comparison
    Anti-glare, Tested Side by Side
    The deep-set optic hides the LED chip from direct view and absorbs stray light, so the beam stays clean, the wall wash stays smooth, and the light remains comfortable even when you look up.
    RS039B configurator — black or white reflector, 3000K or 4000K colour temperature, 24° or 36° beam angle
    Build Your Own Combination
    Pick the beam angle that matches your space — 24° to accent art and reading corners, 36° to wash hallways and feature walls — then choose warm 3000K or neutral 4000K light and a black or white reflector to suit your ceiling.
    How to install the PHILIPS RS039B recessed LED spotlight — D75 D95 cut-outs, spring-clip mounting and 220V integrated driver
    Simple Recessed Installation
    One spring-clip design fits ceilings from 7 to 15 mm thick, with a D75 hole for 9W / 11W models and D95 for 15W. The integrated driver wires straight into 220V mains — no external components needed.

    Complete Product Lineup

    All 16 RS039B SKUs grouped by wattage. Click any row to open its dedicated product page.

    12NCDescriptionCut-outPowerCCTLumen
    9W models
    911401900422RS039B RC Rd D75 9W 30K 24D BKD759W3000K720lm
    911401900423RS039B RC Rd D75 9W 40K 24D BKD759W4000K720lm
    911401900424RS039B RC Rd D75 9W 30K 36D BKD759W3000K720lm
    911401900425RS039B RC Rd D75 9W 40K 36D BKD759W4000K720lm
    911401900426RS039B RC Rd D75 9W 30K 24D WHD759W3000K720lm
    911401900427RS039B RC Rd D75 9W 40K 24D WHD759W4000K720lm
    911401900428RS039B RC Rd D75 9W 30K 36D WHD759W3000K720lm
    911401900429RS039B RC Rd D75 9W 40K 36D WHD759W4000K720lm
    11W models
    911401904012RS039B RC Rd D75 11W 30K 24D BKD7511W3000K880lm
    911401904013RS039B RC Rd D75 11W 40K 24D BKD7511W4000K880lm
    911401904014RS039B RC Rd D75 11W 30K 24D WHD7511W3000K880lm
    911401904015RS039B RC Rd D75 11W 40K 24D WHD7511W4000K880lm
    15W models
    911401903405RS039B RC Rd D95 15W 30K 24D BKD9515W3000K1200lm
    911401903406RS039B RC Rd D95 15W 40K 24D BKD9515W4000K1200lm
    911401903407RS039B RC Rd D95 15W 30K 24D WHD9515W3000K1200lm
    911401903408RS039B RC Rd D95 15W 40K 24D WHD9515W4000K1200lm

    Also from PHILIPS Lighting Range

    Other PHILIPS architectural, industrial and outdoor luminaires available from Honnex Lighting.

    PHILIPS Deep Recessed LED Downlight Series DN350
    PHILIPS Deep Recessed LED Downlight Series DN350
    PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
    PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
    PHILIPS BRP26X SmartBright LED Street Lighting Series
    PHILIPS BRP26X SmartBright LED Street Lighting Series
    PHILIPS WT198C GreenPerform Waterproof G3 Series
    PHILIPS WT198C GreenPerform Waterproof G3 Series
    PHILIPS BY778P GreenPerform Elite Highbay G2 Series
    PHILIPS BY778P GreenPerform Elite Highbay G2 Series
    PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
    PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
    PHILIPS BY518P SE GreenUp Round LED Highbay
    PHILIPS BY518P SE GreenUp Round LED Highbay
    PHILIPS BVP150 G4 LED Floodlight Series
    PHILIPS BVP150 G4 LED Floodlight Series

    Frequently Asked Questions

    What do the codes BK / WH mean in this 12NC?
    BK = Black reflector (anti-glare optimised), WH = White reflector (invisible trim look). The reflector is field-replaceable and fits both BK and WH SKUs of the same cut-out.
    Is this model CCC-certified?
    Yes, all RS039B SKUs carry mandatory China Compulsory Certification (CCC) and meet Signify Class-II insulation classification. Each unit ships in Signify-original PHILIPS-marked packaging with a laser-engraved 12NC code.
    What is the warranty term?
    RS039B carries a standard 3-year manufacturer warranty against defects in materials and workmanship under normal residential use conditions. Extended warranty terms are available for commercial project orders.
