PHILIPS Aura Direct/Indirect LED Panel Series RC430
UGR19Up to 134 lm/W3,500 – 5,500 lm3000–6500 K tunable whiteDALI & Interact ready100,000 h L80B10
Aura RC430 is a recessed troffer in 600×600, 300×1200 and 600×1200 mm that reaches UGR19 through a direct/indirect optical system instead of a heavy glare-control plate. The same luminaire ships as fixed output, DALI dimmable, Interact wireless or sensor-ready, with optional tunable white 3000–6500 K and the BioUp circadian spectrum. All 62 order codes are in the lineup below; for the frameless alternative see the PHILIPS LED panel range.
Product Views
Three housing sizes share one 92 mm deep chassis and the same 35 mm light module.

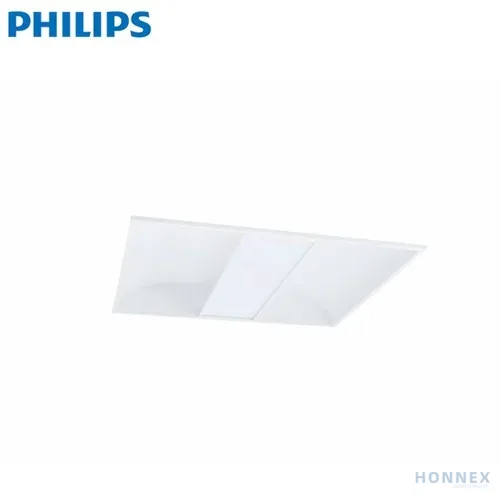

RC430 W60L60 — 595 × 595 mmSquare lay-in module for 600 × 600 T-bar grids; 3,500–3,800 lm.
RC430 W30L120 — 295 × 1195 mmNarrow module for 300 mm grid lines; highest efficacy at 134 lm/W.
RC430 W60L120 — 595 × 1195 mmDouble module for open floors; up to 5,500 lm.
In a live ceilingThe indirect component lifts vertical illuminance without wall washers.
Why Aura RC430
01
UGR19 Without a Glare Plate
Indirect light leaves through a high-reflectance optical coating that lowers surface luminance; the direct component passes a micro-prismatic diffuser that cuts large-angle stray light. UGR19 is reached from a 92 mm housing with no deep louvre.
02
Up to 134 lm/W
122 lm/W at 600×600, 134 lm/W at 300×1200 and 128 lm/W at 600×1200 with the PSU driver at 4000 K / CRI80 — comfortably above China’s grade-1 energy efficiency level.
03
Tunable White 3000–6500 K
A patented LED and dot-lens module (2024ID81202) mixes warm and cool channels for continuous CCT tuning. Order 8TW for CRI80 or 9TW for CRI90; both run from DALI or Interact.
04
BioUp: +42% M-DER
A cyan-enhanced spectrum lifts the melanopic daylight efficacy ratio to 0.84 (CED, 4000 K) and 1.16 at 6500 K, against 0.55 for standard CRI80. It is the cheapest route to WELL v2 L03 circadian credits.
05
COI 2.63 for Clinical Work
Cyanosis observation index of 2.63 at CRI90 / 4000 K sits below the 3.3 limit of AS/NZS 1680.2.5:2018, so the blue shift of deoxygenated blood stays visible during examination.
06
60-Second, Tool-Free Service
Light module and driver are held by mechanical clips and plug-in connectors (2024PF80290). Both are replaced from below without tools, which matters on occupied floors and in clean ceilings.
Aura RC430 against CoreView RC420
RC430 replaces the CoreView RC420 platform. Every row below is a specification difference confirmed in the 2025 datasheets.
| Parameter | Aura RC430 | CoreView RC420 |
|---|---|---|
| Unified glare rating | UGR19 | UGR > 22 |
| Luminous efficacy | Up to 134 lm/W | 108 lm/W |
| Colour consistency | SDCM ≤ 3 | SDCM 4 |
| Interact readiness | WIA and SIA (SC200 / SC1500) | WIA only |
| Lifetime | 100,000 h L80B10 (LED) and 100,000 h driver | 50,000 h L70B50 |
| BioUp circadian spectrum | Yes | No |
| Replaceable light module and driver | Yes, tool-free | No |
| Independent up / down output | Yes (U/D codes) | No |
| Cyanosis observation index | Yes, 2.63 at CRI90 / 4000 K | Not specified |
Application Scenarios
The up and down channels are addressed separately, so one code covers several room modes.
Office & Meeting Rooms
6500 K downward for focus work, 4000 K upward for projection, 3000 K upward for breaks. Vertical illuminance stays high enough for video walls without extra wall washers.
Healthcare & Patient Rooms
Closing the downlight channel leaves a soft indirect wash above the bed; COI 2.63 keeps cyanosis visible when the examination channel is on.
Triage & Examination
Full up plus down output gives the horizontal and vertical illuminance a consultation needs, flicker-free at PstLM ≤ 0.5 and photobiological risk group RG0.
Technical Specifications
Values for the 4000 K CRI80 reference versions; CRI90, tunable white and BioUp codes differ only where stated.
| Parameter | 600 × 600 | 300 × 1200 | 600 × 1200 |
|---|---|---|---|
| Optical | |||
| Luminous flux, single channel | 3,800 lm | 4,000 lm | 5,500 lm |
| Luminous flux, dual channel max | 5,800 lm | 6,500 lm | 8,100 lm |
| Efficacy, PSU driver | 122 lm/W | 134 lm/W | 128 lm/W |
| Efficacy, PSD driver | 117 lm/W | 126 lm/W | 121 lm/W |
| Colour rendering | CRI 80 or CRI 90 (R9 > 50) | ||
| Colour consistency | SDCM ≤ 3 | ||
| Colour temperature | 3000 K / 4000 K / 6500 K; Cyan Enhanced Dynamic (CED); Cyan Enhanced Static 4200 K (CES); 3000–6500 K tunable white | ||
| Unified glare rating | UGR19 | ||
| Beam spread | 90° luminaire, 115° light source | ||
| Electrical | |||
| Input voltage | 220–240 V ~ 50/60 Hz | ||
| Power factor | 0.95 single channel; 0.90 tunable white and CES | ||
| Total harmonic distortion | ≤ 15% PSU, WIA and PSD; ≤ 10% SIA; ≤ 20% CES | ||
| Flicker | PstLM ≤ 0.5, SVM ≤ 0.4, MD ≤ 3.2% | ||
| M-DER at 4000 K / 6500 K | 0.55 / 0.83 CRI80; 0.62 / 1.00 CRI90; 0.84 / 1.16 CED; 0.66 / 1.00 tunable white CRI90; 0.85 / — CES | ||
| Cyanosis observation index | 2.63 at CRI90 / 4000 K | ||
| Control | |||
| Driver options | PSU fixed output; PSD DALI; WIA Interact wireless; SIA sensor ready with SC200 or SC1500 | ||
| Dimming range | 1–100%; up and down channels independent on U/D codes | ||
| Mechanical | |||
| Dimensions L × W | 595 × 595 mm | 295 × 1195 mm | 595 × 1195 mm |
| Height | 92 mm housing; light module < 35 mm | ||
| Housing and finish | Steel frame, white RAL 9003 | ||
| Ingress and impact | IP20 / IK03 | ||
| Mounting | Recessed, T-bar grid lay-in | ||
| Ambient temperature | −20 to +40 °C (0 to +40 °C for CES PSU codes) | ||
| Lifetime | 100,000 h L80B10 at Ta 25 °C (LED and driver) | ||
| Warranty | 3 years | ||
| Certification | CCC; photobiological risk group RG0 | ||
Control & Dimming Options
Five control suffixes cover the range. Pick the suffix, then the size and the light recipe — the model code reads in that order.
| Code | Control | What it does | Typical use |
|---|---|---|---|
| PSU | Fixed output | On/off driver, no dimming, single channel | Back of house, storage, budget fit-out |
| PSD | DALI dimmable | 1–100% dimming, scenes, daylight linking through a DALI controller or BMS | Offices, meeting floors, education |
| WIA | Interact wireless | Wireless control with no control cable; up to 20 luminaires per group | Retrofit and heritage ceilings |
| SC2 | Sensor ready, SC200 | Occupancy and daylight via the SC200 sensor; sensor group up to 20 luminaires | Corridors, washrooms, cellular offices |
| SC15 | Sensor ready, SC1500 | Same logic with the SC1500 sensor (firmware 6.6.13 or later) | Large open floors and atria |
Drivers and accessories
| Item | 12NC | Applies to |
|---|---|---|
| Xi 36 W 0.7–0.85 A 42 V DS I TD 230 V | 929003425580 | PSD versions of 600×600 and 300×1200 |
| Xitanium 48 W 0.7–1.05 A 46 V TD DS 230 V I | 929002851780 | PSD versions of 600×1200 |
| PLS 60 W 0.7–1.5 A TWH S 230 V I | 444170132261 | Independent up/down and per-channel CCT tuning |
| DALI extender | 9137 010 66203 | Up to 20 luminaires per extender in Interact systems |
| Sensors SC100 / SC200 / SC1500 | on request | SC2 and SC15 codes; SC100 as sensor 1, SC200 or SC1500 as sensor 2 in one group |
Reading the code: RC430X LED38/840 W60L60 SC15 OC U/D — 3,800 lm, CRI80 at 4000 K, 595 × 595 mm, SC1500 sensor ready, UGR19 optic, independent up/down output. 9TW is CRI90 tunable white, BioUPD is BioUp with tunable white, OC always means the UGR19 optic.
Three Control Platforms
RC430 ships on one optic with three control layers. Choose the platform first, then the size and the light engine.
WIRED / DALI
RC430V — 18 codes
PSU fixed output and PSD DALI dimming, including the independent up/down codes.
View page →WIRELESS / SENSOR
RC430X — 30 codes
Interact wireless WIA plus SC200 / SC1500 sensor-ready versions.
View page →HUMAN CENTRIC
Tunable White & BioUp — 14 codes
3000–6500 K engines with the BioUp spectrum, 6 on RC430V and 8 on RC430X.
View page →
Complete Product Lineup
62 order codes in the Aura RC430 range — the master list, with every variant below it. Sizes are lay-in dimensions, output is nominal luminaire flux.
Fixed Output — PSU6 codes
On/off driver, no dimming. Entry point for corridors, back-of-house and fit-out budgets.
| 12NC | Description | Size (mm) | Output | CRI / CCT |
|---|---|---|---|---|
| 911401522845 | RC430V LED38/840 W60L60 PSU OC→ | 595 × 595 | 3,800 lm | 80 / 4000 K |
| 911401524645 | RC430V LED36/940 W60L60 PSU OC→ | 595 × 595 | 3,600 lm | 90 / 4000 K |
| 911401522745 | RC430V LED40/840 W30L120 PSU OC→ | 295 × 1195 | 4,000 lm | 80 / 4000 K |
| 911401524545 | RC430V LED38/940 W30L120 PSU OC→ | 295 × 1195 | 3,800 lm | 90 / 4000 K |
| 911401522645 | RC430V LED55/840 W60L120 PSU OC→ | 595 × 1195 | 5,500 lm | 80 / 4000 K |
| 911401524445 | RC430V LED52/940 W60L120 PSU OC→ | 595 × 1195 | 5,200 lm | 90 / 4000 K |
DALI Dimmable — PSD18 codes
DALI driver with 1-100% dimming, scenes and BMS daylight linking; includes the U/D, 9TW and BioUp codes.
| 12NC | Description | Size (mm) | Output | CRI / CCT |
|---|---|---|---|---|
| 911401584945 | RC430V LED37/840 W60L60 PSD OC U/D→ | 595 × 595 | 3,700 lm | 80 / 4000 K |
| 911401523145 | RC430V LED38/840 W60L60 PSD OC→ | 595 × 595 | 3,800 lm | 80 / 4000 K |
| 911401585245 | RC430V LED35/940 W60L60 PSD OC U/D→ | 595 × 595 | 3,500 lm | 90 / 4000 K |
| 911401524945 | RC430V LED36/940 W60L60 PSD OC→ | 595 × 595 | 3,600 lm | 90 / 4000 K |
| 911401582145 | RC430V LED35/9TW W60L60 PSD OC→ | 595 × 595 | 3,500 lm | 90 / 3000-6500K |
| 911401583945 | RC430V LED37/BioUPD W60L60 PSD OC→ | 595 × 595 | 3,700 lm | BioUp / 3000-6500K |
| 911401584845 | RC430V LED38/840 W30L120 PSD OC U/D→ | 295 × 1195 | 3,800 lm | 80 / 4000 K |
| 911401523045 | RC430V LED40/840 W30L120 PSD OC→ | 295 × 1195 | 4,000 lm | 80 / 4000 K |
| 911401585145 | RC430V LED36/940 W30L120 PSD OC U/D→ | 295 × 1195 | 3,600 lm | 90 / 4000 K |
| 911401524845 | RC430V LED38/940 W30L120 PSD OC→ | 295 × 1195 | 3,800 lm | 90 / 4000 K |
| 911401582045 | RC430V LED36/9TW W30L120 PSD OC→ | 295 × 1195 | 3,600 lm | 90 / 3000-6500K |
| 911401583845 | RC430V LED39/BioUPD W30L120 PSD OC→ | 295 × 1195 | 3,900 lm | BioUp / 3000-6500K |
| 911401584745 | RC430V LED54/840 W60L120 PSD OC U/D→ | 595 × 1195 | 5,400 lm | 80 / 4000 K |
| 911401522945 | RC430V LED55/840 W60L120 PSD OC→ | 595 × 1195 | 5,500 lm | 80 / 4000 K |
| 911401585045 | RC430V LED51/940 W60L120 PSD OC U/D→ | 595 × 1195 | 5,100 lm | 90 / 4000 K |
| 911401524745 | RC430V LED52/940 W60L120 PSD OC→ | 595 × 1195 | 5,200 lm | 90 / 4000 K |
| 911401581945 | RC430V LED51/9TW W60L120 PSD OC→ | 595 × 1195 | 5,100 lm | 90 / 3000-6500K |
| 911401583745 | RC430V LED52/BioUPD W60L120 PSD OC→ | 595 × 1195 | 5,200 lm | BioUp / 3000-6500K |
Interact Wireless — WIA6 codes
Wireless Interact ready, no control cable; up to 20 luminaires per group.
| 12NC | Description | Size (mm) | Output | CRI / CCT |
|---|---|---|---|---|
| 911401523445 | RC430X LED38/840 W60L60 WIA OC→ | 595 × 595 | 3,800 lm | 80 / 4000 K |
| 911401525245 | RC430X LED36/940 W60L60 WIA OC→ | 595 × 595 | 3,600 lm | 90 / 4000 K |
| 911401523345 | RC430X LED40/840 W30L120 WIA OC→ | 295 × 1195 | 4,000 lm | 80 / 4000 K |
| 911401525145 | RC430X LED38/940 W30L120 WIA OC→ | 295 × 1195 | 3,800 lm | 90 / 4000 K |
| 911401523245 | RC430X LED49/840 W60L120 WIA OC→ | 595 × 1195 | 4,900 lm | 80 / 4000 K |
| 911401525045 | RC430X LED46/940 W60L120 WIA OC→ | 595 × 1195 | 4,600 lm | 90 / 4000 K |
Interact Sensor Ready — SC2 / SC1532 codes
Sensor-ready codes for SC200 (SC2) or SC1500 (SC15), with or without independent up/down output.
| 12NC | Description | Size (mm) | Output | CRI / CCT |
|---|---|---|---|---|
| 911401586145 | RC430X LED37/840 W60L60 SC15 OC U/D→ | 595 × 595 | 3,700 lm | 80 / 4000 K |
| 911401585545 | RC430X LED37/840 W60L60 SC2 OC U/D→ | 595 × 595 | 3,700 lm | 80 / 4000 K |
| 911401579845 | RC430X LED38/840 W60L60 SC15 OC→ | 595 × 595 | 3,800 lm | 80 / 4000 K |
| 911401578645 | RC430X LED38/840 W60L60 SC2 OC→ | 595 × 595 | 3,800 lm | 80 / 4000 K |
| 911401586445 | RC430X LED35/940 W60L60 SC15 OC U/D→ | 595 × 595 | 3,500 lm | 90 / 4000 K |
| 911401585845 | RC430X LED35/940 W60L60 SC2 OC U/D→ | 595 × 595 | 3,500 lm | 90 / 4000 K |
| 911401580145 | RC430X LED36/940 W60L60 SC15 OC→ | 595 × 595 | 3,600 lm | 90 / 4000 K |
| 911401578945 | RC430X LED36/940 W60L60 SC2 OC→ | 595 × 595 | 3,600 lm | 90 / 4000 K |
| 911401583345 | RC430X LED35/9TW W60L60 SC15 OC→ | 595 × 595 | 3,500 lm | 90 / 3000-6500K |
| 911401582745 | RC430X LED35/9TW W60L60 SC2 OC→ | 595 × 595 | 3,500 lm | 90 / 3000-6500K |
| 911401584545 | RC430X LED37/BioUPD W60L60 SC15 OC→ | 595 × 595 | 3,700 lm | BioUp / 3000-6500K |
| 911401584345 | RC430X LED37/BioUPD W60L60 SC2 OC→ | 595 × 595 | 3,700 lm | BioUp / 3000-6500K |
| 911401586045 | RC430X LED38/840 W30L120 SC15 OC U/D→ | 295 × 1195 | 3,800 lm | 80 / 4000 K |
| 911401585445 | RC430X LED38/840 W30L120 SC2 OC U/D→ | 295 × 1195 | 3,800 lm | 80 / 4000 K |
| 911401579745 | RC430X LED40/840 W30L120 SC15 OC→ | 295 × 1195 | 4,000 lm | 80 / 4000 K |
| 911401578545 | RC430X LED40/840 W30L120 SC2 OC→ | 295 × 1195 | 4,000 lm | 80 / 4000 K |
| 911401586345 | RC430X LED36/940 W30L120 SC15 OC U/D→ | 295 × 1195 | 3,600 lm | 90 / 4000 K |
| 911401585745 | RC430X LED36/940 W30L120 SC2 OC U/D→ | 295 × 1195 | 3,600 lm | 90 / 4000 K |
| 911401580045 | RC430X LED38/940 W30L120 SC15 OC→ | 295 × 1195 | 3,800 lm | 90 / 4000 K |
| 911401578845 | RC430X LED38/940 W30L120 SC2 OC→ | 295 × 1195 | 3,800 lm | 90 / 4000 K |
| 911401583245 | RC430X LED36/9TW W30L120 SC15 OC→ | 295 × 1195 | 3,600 lm | 90 / 3000-6500K |
| 911401582645 | RC430X LED36/9TW W30L120 SC2 OC→ | 295 × 1195 | 3,600 lm | 90 / 3000-6500K |
| 911401585945 | RC430X LED54/840 W60L120 SC15 OC U/D→ | 595 × 1195 | 5,400 lm | 80 / 4000 K |
| 911401585345 | RC430X LED54/840 W60L120 SC2 OC U/D→ | 595 × 1195 | 5,400 lm | 80 / 4000 K |
| 911401579645 | RC430X LED55/840 W60L120 SC15 OC→ | 595 × 1195 | 5,500 lm | 80 / 4000 K |
| 911401578445 | RC430X LED55/840 W60L120 SC2 OC→ | 595 × 1195 | 5,500 lm | 80 / 4000 K |
| 911401586245 | RC430X LED51/940 W60L120 SC15 OC U/D→ | 595 × 1195 | 5,100 lm | 90 / 4000 K |
| 911401585645 | RC430X LED51/940 W60L120 SC2 OC U/D→ | 595 × 1195 | 5,100 lm | 90 / 4000 K |
| 911401579945 | RC430X LED52/940 W60L120 SC15 OC→ | 595 × 1195 | 5,200 lm | 90 / 4000 K |
| 911401578745 | RC430X LED52/940 W60L120 SC2 OC→ | 595 × 1195 | 5,200 lm | 90 / 4000 K |
| 911401583145 | RC430X LED51/9TW W60L120 SC15 OC→ | 595 × 1195 | 5,100 lm | 90 / 3000-6500K |
| 911401582545 | RC430X LED51/9TW W60L120 SC2 OC→ | 595 × 1195 | 5,100 lm | 90 / 3000-6500K |
Also from the PHILIPS Range
Panels, classroom optics and human-centric systems that share the same ceiling grid.
Frequently Asked Questions
What is the difference between the RC430V and RC430X codes?
RC430V codes carry wired drivers, either PSU fixed output or PSD DALI. RC430X codes are Interact-ready: WIA wireless, or SC2 / SC15 sensor-ready versions that pair with the SC200 or SC1500 sensor. Optics, housing, dimensions and light output are identical, so the two families can be mixed on one floor plate.
How does RC430 reach UGR19 without a glare-control plate?
The luminaire splits its output. Indirect light is reflected off a high-reflectance optical coating that lowers surface luminance, while a micro-prismatic diffuser controls the large-angle stray light of the direct component. The result is a unified glare rating of 19 from a 92 mm housing with no deep louvre, which is also why the fitting weighs less than a conventional low-glare troffer.
What does U/D mean in the order code?
U/D marks the dual-output versions: the upward (indirect) and downward (direct) channels are controlled independently between 1% and 100%. On RC430 the 18 U/D codes balance the two channels from a single driver, so one luminaire can run a bright uplight with a dimmed downlight or the other way round.
Which accessories are needed for independent up/down control?
Dual-output installations use the TWH driver 444170132261 (PLS 60W 0.7-1.5A TWH S 230V I) so that each channel can be addressed on its own. In a DALI system a DALI controller drives the two channels; for Interact, a DALI extender 9137 010 66203 bridges up to 20 luminaires per group, with SC100 as sensor 1 and SC200 or SC1500 as sensor 2, both configured to the same group.
Is RC430 suitable for hospitals, clinics and consulting rooms?
Yes. The cyanosis observation index is 2.63 at CRI90 / 4000 K, below the 3.3 limit of AS/NZS 1680.2.5:2018, so cyanotic skin colour stays visible during examination. Photobiological risk is RG0, flicker is PstLM ≤0.5 and SVM ≤0.4, and the downlight channel can be switched off at night so only a soft indirect wash remains.
What lifetime and warranty do the codes carry?
The LED module is rated 100,000 hours L80B10 at Ta 25 °C and the driver 100,000 hours, with a 3-year warranty. Both the light module and the driver are held by mechanical clips and plug-in connectors, so they can be replaced on site in about 60 seconds without tools.
Browse the full PHILIPS LED panel range, the frameless RC468V panel series, the human-centric NatureConnect Skylight LP913P, or the whole PHILIPS indoor lighting catalogue. Aura RC430 is a Signify product; specifications follow the 2025 Philips datasheets.
