Description
← Back to PHILIPS MASTER LEDtube UltraEfficient Series T5

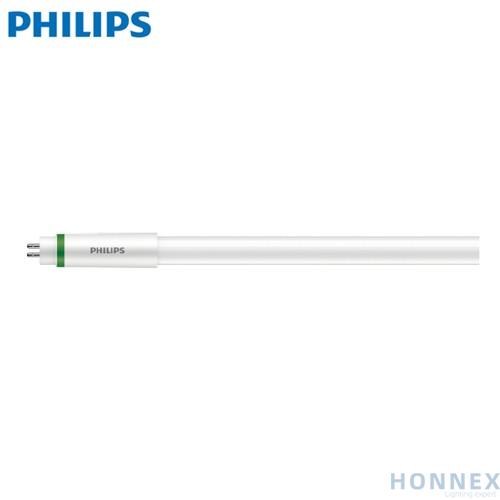

PHILIPS MASTER LEDtube UltraEfficient Series T5 — 1500 mm 4000 K
- 12NC (Material No.)
- 929004352102
- Description
- MAS LEDtube 1500mm UE 18.9W 840 T5 EELB
- Power
- 18.9 W
- Luminous Flux
- 3500 lm
- Color Temperature
- 4000 K (Cool White)
- Replaces
- 49W TL5 HO
- Product Length
- 1500 mm
- Cap-Base
- G5
Installation & Wiring
The PHILIPS MASTER UltraEfficient T5 LED tube is designed for direct mains connection. Typical application examples are shown below; bypass the existing HF electronic ballast during installation.
Parking & Underground GarageBright, uniform ceiling lighting for car parks and basements
Food-Safe Industrial LineClean white ceiling light for food factories and hygienic work areas
Supermarket AisleCrisp, even lighting for retail merchandise displays
Wiring Diagram (Single & Double-Ended)7-step installation procedure: bypass HF ballast, direct L / N connection in either wiring configuration
Wiring Configuration for MAS LEDtube 1500mm UE 18.9W 840 T5 EELB
- Circuit type: Direct mains — the LEDtube connects directly to L / N after the HF ballast is removed. Both single-ended and double-ended wiring configurations are supported.
- Input: 220 – 240 V AC, 50 / 60 Hz, 86 mA.
- Ballast: The existing HF electronic ballast must be bypassed (marked "X" in the diagram) — never run the LEDtube with the ballast still in circuit.
- MCB loading: Up to 89 tubes on a B-type 10 A breaker; up to 142 tubes on a B-type 16 A breaker.
- Safety note: Follow the 7-step procedure in the wiring diagram. Always isolate the mains supply before opening the luminaire; installation must be carried out by a qualified electrician.
Technical Specifications
Detailed specifications for the MAS LEDtube 1500mm UE 18.9W 840 T5 EELB (12NC 929004352102).
| Optical | |
| Luminous Flux | 3500 lm |
| Luminous Efficacy | 185 lm/W |
| Correlated Color Temperature | 4000 K (Cool White) |
| Color Rendering Index (CRI) | 80 |
| Beam Angle | 160° |
| Color Consistency (SDCM) | ≤ 6 |
| LLMF at End of Nominal Lifetime | 70 % |
| Electrical | |
| Power Consumption | 18.9 W |
| Input Voltage | 220 – 240 V AC |
| Input Frequency | 50 / 60 Hz |
| Power Factor | 0.9 |
| Lamp Current | 86 mA |
| Ballast Compatibility | Mains (direct connection) |
| Dimmable | No |
| Mechanical | |
| Product Length | 1500 mm |
| Bulb Shape | T5 |
| Cap-Base | G5 |
| Bulb Material | Glass with PET anti-shatter coating |
| Net Weight | 0.187 kg |
| IP Rating | IP20 |
| Environmental | |
| Ambient Temperature Range | -20 °C to +45 °C |
| T-Case Maximum | 55 °C |
| Suitable for Closed Luminaires | Yes |
| Lifetime & Compliance | |
| Nominal Lifetime | 70,000 hrs |
| Switching Cycle | 200,000 |
| Warranty | 5 years |
| Energy Efficiency Class | B |
| Certifications | CE / KEMA / NSF / EPD |
Physical Dimensions
Dimensional drawing values for the 1500 mm MASTER UltraEfficient T5 LED tube. All dimensions are in millimetres.
| Dimension | Value | Applies to |
|---|---|---|
| D1 | 15.7 mm | Tube diameter |
| D2 | 19 mm | Cap diameter |
| A1 | 1449 mm | Total length |
| A2 | 1456.1 mm | Pin-to-pin length |
| A3 | 1463.2 mm | Max. length incl. caps |
Complete Product Lineup
Click any Description to open the dedicated SKU product page. The current model is highlighted.
| 12NC | Description | Length | Power | CCT | Lumen |
|---|---|---|---|---|---|
| 1200 mm Family | |||||
| 929004351902 | MAS LEDtube 1200mm UE 18.9W 840 T5 EELB → | 1200 mm | 18.9 W | 4000 K | 3500 lm |
| 929004352002 | MAS LEDtube 1200mm UE 18.9W 865 T5 EELB → | 1200 mm | 18.9 W | 6500 K | 3500 lm |
| 1500 mm Family | |||||
| 929004352102 | MAS LEDtube 1500mm UE 18.9W 840 T5 EELB → | 1500 mm | 18.9 W | 4000 K | 3500 lm |
| 929004352202 | MAS LEDtube 1500mm UE 18.9W 865 T5 EELB → | 1500 mm | 18.9 W | 6500 K | 3500 lm |
Also from PHILIPS Lighting Range
Explore more PHILIPS professional LED lighting series recently published on Honnex Lighting.
PHILIPS CorePro LED HID SON-T TrueForce Core LED Road Series
PHILIPS Deep Recessed LED Downlight Series DN350
PHILIPS Deep Recessed LED Spotlight Series RS216
PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
PHILIPS BRP26X SmartBright LED Street Lighting Series
PHILIPS WT198C GreenPerform Waterproof G3 Series
PHILIPS BY778P GreenPerform Elite Highbay G2 Series
PHILIPS GreenPerform Trunking G2 LL130X Series
Frequently Asked Questions
What is the energy efficiency class of the PHILIPS MASTER UltraEfficient T5 LED tube?
The PHILIPS MASTER UltraEfficient T5 LED tube is rated Energy Efficiency Class B and delivers 185 lm/W luminous efficacy.
Can the MASTER UE T5 LED tube be installed in closed luminaires?
Yes. With a T-case maximum of 55 °C and an ambient operating range of -20 °C to +45 °C, the tube is verified for use in closed luminaires.
Does this LED tube require an electronic ballast?
No. This is a mains-voltage LEDtube designed for direct connection. The existing HF electronic ballast must be bypassed.
