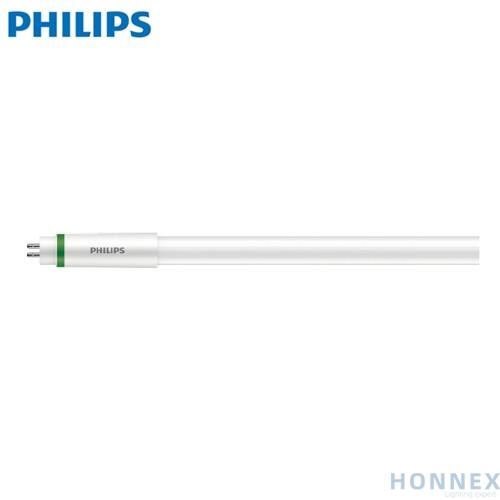

PHILIPS MASTER LEDtube UltraEfficient Series T5 — 1200 mm 6500 K

12NC (Material No.): 929004352002

Description: MAS LEDtube 1200mm UE 18.9W 865 T5 EELB

Power: 18.9 W

Luminous Flux: 3500 lm

Color Temperature: 6500 K (Cool Daylight)

Replaces: 54W TL5 HO

Product Length: 1200 mm

Cap-Base: G5

Installation & Wiring

The PHILIPS MASTER UltraEfficient T5 LED tube is designed for direct mains connection. Typical application examples are shown below; bypass the existing HF electronic ballast during installation.

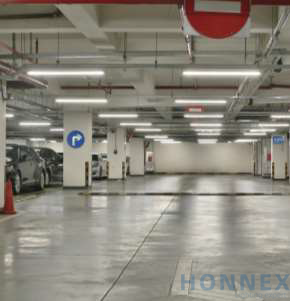

PHILIPS MASTER UltraEfficient T5 LED tubes installed in an underground parking garage, providing bright uniform overhead illumination

Parking & Underground GarageBright, uniform ceiling lighting for car parks and basements

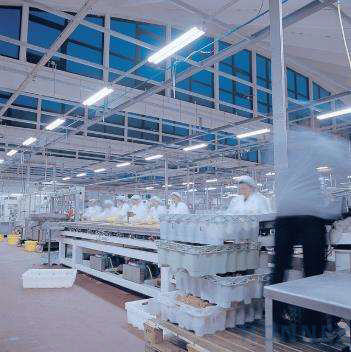

PHILIPS MASTER UltraEfficient T5 LED tubes lighting a food processing production line with workers in hygienic clothing

Food-Safe Industrial LineClean white ceiling light for food factories and hygienic work areas

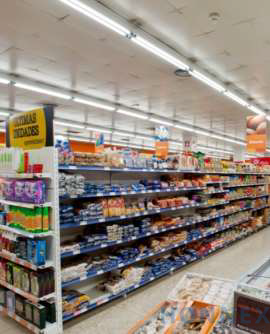

PHILIPS MASTER UltraEfficient T5 LED tubes illuminating supermarket shelves and product displays

Supermarket AisleCrisp, even lighting for retail merchandise displays

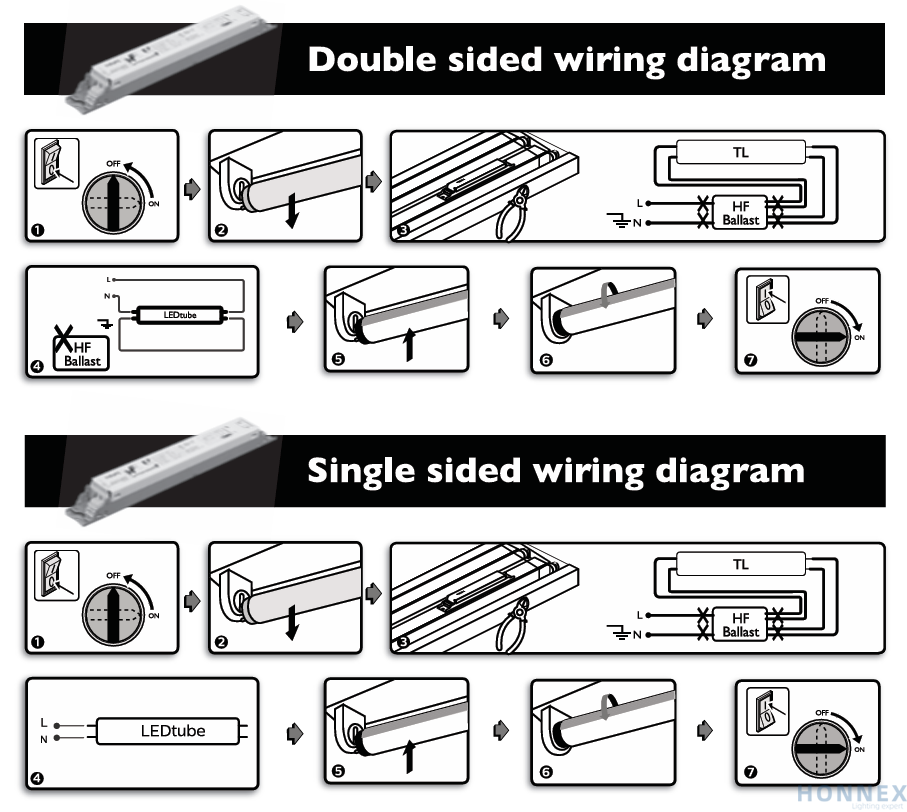

PHILIPS MASTER UltraEfficient T5 LED tube 7-step double-sided and single-sided wiring diagram, showing how to bypass the HF ballast and connect directly to mains L and N

Wiring Diagram (Single & Double-Ended)7-step installation procedure: bypass HF ballast, direct L / N connection in either wiring configuration

Wiring Configuration for MAS LEDtube 1200mm UE 18.9W 865 T5 EELB

Circuit type: Direct mains — the LEDtube connects directly to L / N after the HF ballast is removed. Both single-ended and double-ended wiring configurations are supported.
Input: 220 – 240 V AC, 50 / 60 Hz, 86 mA.
Ballast: The existing HF electronic ballast must be bypassed (marked "X" in the diagram) — never run the LEDtube with the ballast still in circuit.
MCB loading: Up to 89 tubes on a B-type 10 A breaker; up to 142 tubes on a B-type 16 A breaker.
Safety note: Follow the 7-step procedure in the wiring diagram. Always isolate the mains supply before opening the luminaire; installation must be carried out by a qualified electrician.

Technical Specifications

Detailed specifications for the MAS LEDtube 1200mm UE 18.9W 865 T5 EELB (12NC 929004352002).

Optical
Luminous Flux	3500 lm
Luminous Efficacy	185 lm/W
Correlated Color Temperature	6500 K (Cool Daylight)
Color Rendering Index (CRI)	80
Beam Angle	160°
Color Consistency (SDCM)	≤ 6
LLMF at End of Nominal Lifetime	70 %
Electrical
Power Consumption	18.9 W
Input Voltage	220 – 240 V AC
Input Frequency	50 / 60 Hz
Power Factor	0.9
Lamp Current	86 mA
Ballast Compatibility	Mains (direct connection)
Dimmable	No
Mechanical
Product Length	1200 mm
Bulb Shape	T5
Cap-Base	G5
Bulb Material	Glass with PET anti-shatter coating
Net Weight	0.159 kg
IP Rating	IP20
Environmental
Ambient Temperature Range	-20 °C to +45 °C
T-Case Maximum	55 °C
Suitable for Closed Luminaires	Yes
Lifetime & Compliance
Nominal Lifetime	70,000 hrs
Switching Cycle	200,000
Warranty	5 years
Energy Efficiency Class	B
Certifications	CE / KEMA / NSF / EPD

Physical Dimensions

Dimensional drawing values for the 1200 mm MASTER UltraEfficient T5 LED tube. All dimensions are in millimetres.

Dimension	Value	Applies to
D1	15.7 mm	Tube diameter
D2	19 mm	Cap diameter
A1	1149 mm	Total length
A2	1156.1 mm	Pin-to-pin length
A3	1163.2 mm	Max. length incl. caps

Complete Product Lineup

Click any Description to open the dedicated SKU product page. The current model is highlighted.

12NC	Description	Length	Power	CCT	Lumen
1200 mm Family

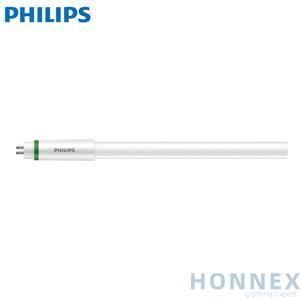

929004351902	MAS LEDtube 1200mm UE 18.9W 840 T5 EELB →	1200 mm	18.9 W	4000 K	3500 lm
929004352002	MAS LEDtube 1200mm UE 18.9W 865 T5 EELB →	1200 mm	18.9 W	6500 K	3500 lm
1500 mm Family
929004352102	MAS LEDtube 1500mm UE 18.9W 840 T5 EELB →	1500 mm	18.9 W	4000 K	3500 lm
929004352202	MAS LEDtube 1500mm UE 18.9W 865 T5 EELB →	1500 mm	18.9 W	6500 K	3500 lm
