Description
BY778P/BY778X · Generation 2
PHILIPS GreenPerform Elite Highbay G2 Series
Ultra Efficient LED Highbay — 10,000 to 40,000 Lumens — PSU, DALI & Interact Options
Efficacy: 190 lm/W (PSU)Lumen: 10,000–40,000 lmLife: 100,000 hrsIP: IP66 / IK08 (PSU/PSD)CCT: 4000K / 6500K
Feature Highlights
Ultra Efficient (UE)
Up to 190 lm/W system efficacy (PSU version), dramatically reducing energy consumption and total cost of ownership for industrial facilities.
Professional Optics
Patented Fresnel lens design with two beam options: Wide Beam (90°) for general areas and Narrow Beam (55°) for high-bay rack aisles. UGR22/25 for superior visual comfort.
Flicker-Free Lighting
Compliant with IEEE and IEA SSL standards. SVM <0.4, Pst <0.5 ensures no visible flicker — critical for manufacturing environments with rotating machinery.
100,000-Hour Lifetime
Rated L70B50 at Ta 35°C. Designed for 24/7 industrial operation with minimal maintenance. 5-year warranty as standard.
Multiple Control Options
Three variants available: PSU (On/Off), PSD (DALI-2 dimmable), and BY778X (Interact IoT smart with integrated SNH210IA sensor).
Robust & Reliable
IP66/IK08 protection (PSU/PSD), 500-hour salt spray tested, vibration-tested per IEC60068. Finless, smooth design resists dust accumulation.
Product Gallery
BY778P Series — Side Profile
Suspension mount with cable entry, finless IP66 housing
BY778P Series — Alternate Angle
Smooth dust-resistant design, easy-clean surface

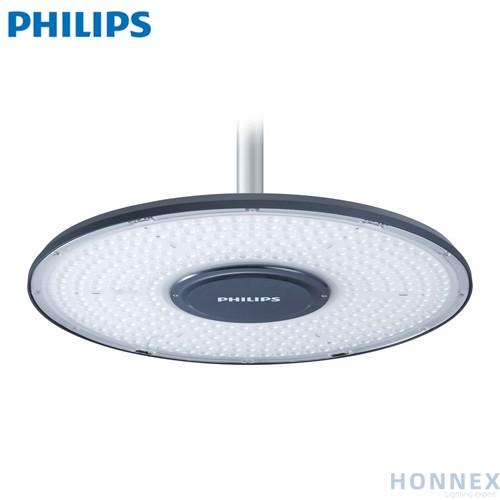

BY778P Standard (PSU/PSD) — Bottom View
Fresnel lens optic, 90° WB / 55° NB beam options
BY778X Interact (SIA) — Bottom View
Integrated SNH210IA sensor for wireless smart control
GreenPerform Elite Highbay G2 vs. BY718P (Previous Generation)
| Feature | BY778P (G2) | BY718P (G1) |
|---|---|---|
| Efficacy (PSU) | 190 lm/W | 160 lm/W |
| Max Lumen Output | 40,000 lm | 30,000 lm |
| Lifetime (L70B50) | 100,000 hrs | 75,000 hrs |
| IP Rating | IP66 (PSU/PSD) | IP65 |
| Flicker Performance | Flicker-Free (SVM <0.4) | Not flicker-free rated |
| Control Options | PSU + PSD (DALI) + SIA (Interact) | PSU + PSD |
| Warranty | 5 Years | 3 Years |
| Design | Finless, flat driver, central sensor | Finless |
Choose Your Control Variant
PSU – Fixed Output
BY778P PSU
On/Off Control · 190 lm/W
- 200–240V, 50/60 Hz
- 7 Power Levels: 51–210W
- IP66 / IK08
- 190 lm/W Ultra Efficient
- -40°C to +50°C
- 28 SKU Configurations
BY778P PSD
DALI-2 · 180 lm/W
- 220–240V, 50/60 Hz
- 8 Power Levels: 55–222W
- IP66 / IK08
- 180 lm/W High Efficiency
- -40°C to +50°C
- 32 SKU Configurations
BY778X
Interact IoT · 180 lm/W
- 220–240V, 50/60 Hz
- 8 Power Levels: 55–222W
- IP65 / IK05
- Integrated SNH210IA Sensor
- -30°C to +50°C
- 28 SKU Configurations
Technical Specifications Comparison
| Parameter | BY778P PSU | BY778P PSD | BY778X (SIA) |
|---|---|---|---|
| Optical Performance | |||
| Efficacy | 190 lm/W | 180 lm/W | 180 lm/W |
| Lumen Range | 10,000–40,000 lm | 10,000–40,000 lm | 10,000–40,000 lm |
| CRI | 80 | 80 | 80 |
| CCT | 4000K / 6500K | 4000K / 6500K | 4000K / 6500K |
| Beam Angle | WB 90° / NB 55° | WB 90° / NB 55° | WB 90° / NB 55° |
| UGR | UGR25(WB) / UGR22(NB) | UGR25(WB) / UGR22(NB) | UGR25(WB) / UGR22(NB) |
| Electrical | |||
| Control | Fixed Output | DALI-2 Dimmable | Interact IoT Smart |
| Voltage | 200–240V | 220–240V | 220–240V |
| Power Range | 51–210W | 55–222W | 55–222W |
| Surge Protection | 4KV/4KV | 4KV/4KV | 4KV/4KV |
| Mechanical & Environmental | |||
| IP / IK | IP66 / IK08 | IP66 / IK08 | IP65 / IK05 |
| Operating Temp | -40°C to +50°C | -40°C to +50°C | -30°C to +50°C |
| Lifetime | 100K hrs L70B50 | 100K hrs L70B50 | 100K hrs L70B50 |
| Height (Range) | 95–109 mm | 100–113 mm | 138–151 mm |
| Warranty | 5 Years | 5 Years | 5 Years |
Installation & Mounting Guide
1. Hook Suspension
Standard hook included in packaging. Compatible with chain or cable suspension. Maximum tilt angle: 60°.
2. Pipe Mount (G1/2")
G1/2 screw thread for rigid pipe mounting. Tightening torque: 20 Nm. Pipe not provided by Signify.
3. Bracket Surface Mount
Optional BY778Z Bracket (12NC: 911401637409) for side-wall or ceiling surface mounting. 1 Nm tightening torque.
| Model | Wiring | Cable Type |
|---|---|---|
| PSU | 2-core (L, N) | 60245 IEC57 2×1mm² |
| PSD (DALI) | 4-core (L, N, DALI+, DALI-) | 60245 IEC57 3×1mm² + DALI pair |
| BY778X (Interact) | 2-core (L, N) | 60245 IEC57 2×1mm² |
Accessory: BY778Z Bracket (12NC: 911401637409) — order separately for surface/wall mounting. Optional safety cable (not provided by Signify, must be ≥SUS304 Ø3mm).
Safety Warning:
- Disconnect power before inspection, installation, or removal.
- External earthing must be connected before use and maintained throughout the product's lifetime.
- Safety cable recommended for all suspended installations. Material: ≥SUS304 Ø3mm. Length: d to d+30cm (d = distance from mounting point to ceiling).
- Use IP66 or above rated terminal box (min. 10×20×25cm) for external connections. Not provided by Signify.
- Avoid corrosive atmospheres containing sulfur, chlorine, or phthalates during use and storage.
Also from PHILIPS Lighting Range
PHILIPS LL130X GreenPerform Trunking G2
PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
PHILIPS BY518P SE GreenUp Round LED Highbay
PHILIPS BVP150 G4 LED Floodlight Series
PHILIPS WT068C LED Batten NW LED56 L1500
PHILIPS BVP171 LED Floodlight 30W WB Grey
PHILIPS MAS LEDspotLV D 20-100W AR111 24D
PHILIPS MASTER LED 7-50W COB MR16 10D Dim
Frequently Asked Questions
What is the difference between BY778P PSU, PSD, and BY778X?
BY778P PSU is the fixed output (On/Off) version with the highest efficacy of 190 lm/W. BY778P PSD is the DALI-2 dimmable version at 180 lm/W, suitable for wired dimming systems. BY778X (also labeled BY778P SIA) is the Interact IoT smart version with an integrated SNH210IA sensor for wireless connectivity, remote monitoring, and group control.
What mounting options are available for the GreenPerform Elite Highbay G2?
Three mounting options: (1) Hook suspension — standard hook included, compatible with chain or cable; (2) Pipe mount via G1/2 thread; (3) Surface/wall mount using the optional BY778Z Bracket (12NC: 911401637409). A safety cable (≥SUS304 Ø3mm) is recommended for all suspended installations.
What is the warranty and expected lifetime?
All BY778P/BY778X variants come with a 5-year warranty. The rated lifetime is 100,000 hours at L70B50 under Ta 35°C operating conditions, equivalent to over 11 years of continuous 24/7 operation.
Which beam angle should I choose — WB or NB?
Wide Beam (WB, 90°±5°) is recommended for general area illumination in warehouses, manufacturing floors, and logistics centers where broad, uniform coverage is needed. Narrow Beam (NB, 55°±5°) is ideal for high-rack aisles, tall ceilings, and applications requiring focused light distribution with higher intensity.
Is the BY778P compatible with smart lighting control systems?
Yes. The BY778X variant (Interact SIA) is specifically designed for Interact IoT connectivity with an integrated SNH210IA sensor supporting wireless commissioning, grouping, and energy monitoring. The PSD variant supports DALI-2 wired dimming. For custom control protocols, ETO (Engineer-to-Order) options may be available — contact sales@honnexlighting.com for details.
What are the main improvements over the previous generation BY718P?
The G2 delivers: 190 lm/W vs 160 lm/W efficacy (+19%), 40,000 lm max vs 30,000 lm output (+33%), 100K hrs vs 75K hrs lifetime (+33%), IP66 vs IP65 ingress protection, flicker-free certification (SVM<0.4), Interact smart control option, and an upgraded 5-year warranty vs 3 years.
