PHILIPS Deep Recessed LED Downlight DN350N LED10/WW 10W 220-240V D90 SV CN 929004794710

  1. Home
  2. Products
  3. PHILIPS indoor Lighting
  4. PHILIPS LED Downlight
  5. PHILIPS Deep Recessed LED Downlight DN350N LED10/WW 10W 220-240V D90 SV CN 929004794710
  • PHILIPS Deep Recessed LED Downlight DN350N LED10/WW 10W 220-240V D90 SV CN 929004794710

PHILIPS Deep Recessed LED Downlight DN350N LED10/WW 10W 220-240V D90 SV CN 929004794710

  • Product Item：929004794710
  • Driver: External CC · Flicker-free
  • Lifetime: 30,000 hrs (L70B50)
  • UGR: < 19
  • CRI: ≥ 90
    • PHILIPS , DN350N , DOWNLIGHT , LED , Deep Recessed
    Inquiry Send Email

    Description

    ← Back to PHILIPS Deep Recessed LED Downlight Series DN350
    PHILIPS Authorized DN350N Series UGR < 19 CRI ≥ 90 IP54 Front Ring

    PHILIPS Deep Recessed LED Downlight Series DN350

    DN350N LED10/WW 10W 220-240V D90 SV CN — 10W anti-glare recessed LED downlight delivering 980 lm at 3000K (Warm White), CRI≥90, UGR<19, IP54 splash-proof front ring, and a flicker-free external constant-current driver. Direct retrofit for Ø 90 mm ceiling cut-outs.

    Power
    10W
    Lumen
    980 lm
    CCT
    3000K
    Cut-out
    D90
    Lifetime
    30,000 hrs

    Product Details

    Key identification and performance data for 12NC 929004794700.

    12NC929004794700
    DescriptionDN350N LED10/WW 10W 220-240V D90 SV CN
    Power10W
    Lumen Output980 lm
    Color Temperature3000K (Warm White)
    Cut-out SizeØ 90 mm
    Product SizeØ 96 × 58 mm
    Beam Angle60°
    CRI≥ 90
    Power Factor0.9
    Packing30 pcs / box

    Installation & Wiring

    Installation guidance for the DN350N 10W variant.

    Recessed Ceiling Mounting

    Tool-free installation with spring clips into plaster or gypsum ceilings. The deep-canister housing fits the Ø 90 mm cut-out and keeps the LED module recessed for UGR < 19 anti-glare performance.

    External Constant-Current Driver

    Powered by a separate flicker-free driver (ripple current < 1%), installed above the ceiling or in the junction box. Suitable for 220 – 240 V AC, 50 / 60 Hz mains.

    Wiring & Safety

    Connect driver output to the luminaire (L / N polarity as marked), and driver input to mains. Always switch off the circuit before installation or maintenance. Keep the housing clear of thermal insulation for adequate heat dissipation.

    Technical Specifications

    Full parameter set for DN350N LED10/WW 10W 220-240V D90 SV CN.

    Optical
    Lumen Output980 lm
    Efficacyup to 100 lm/W
    Color Temperature3000K (Warm White)
    CRI≥ 90
    Beam Angle60°
    UGR< 19
    SDCM≤ 5
    Electrical
    Input Voltage220 – 240 V AC, 50 / 60 Hz
    Power Factor0.9
    Driver TypeExternal constant-current driver, flicker-free (ripple current < 1%)
    Mechanical & Environmental
    Cut-out SizeØ 90 mm
    Product SizeØ 96 × 58 mm
    Housing MaterialAluminum + Polycarbonate (PC)
    Body ColorSilver
    IP Rating (Front Ring)IP54
    Mounting TypeRecessed (嵌入式)
    Ambient Temperature-20 °C < Ta < 40 °C
    Rated Lifetime30,000 hrs L70B50 @ T25 °C

    Product Gallery

    Package, housing, installation and optical views of the DN350 series.

    PHILIPS DN350 complete package — anti-glare downlight, external driver, and branded retail box
    Complete Package — Downlight, Driver & Branded Box
    Each DN350 ships in a PHILIPS-branded retail box including the anti-glare downlight module and a flicker-free external constant-current driver, ready for recessed installation.
    PHILIPS DN350 rear housing and printed electrical specification label
    Rear Housing & Specification Label
    Die-cast aluminum rear housing with thermal ventilation slots and printed electrical specification label, engineered for a 30,000 hr L70B50 lifetime at T25 °C.
    PHILIPS DN350 recessed installation view showing spring clips and heat-sink fins on the rear
    Recessed Installation — Spring Clips & Heat-Sink
    Spring clips enable tool-free recessed mounting into plaster or gypsum ceilings, with deep-canister heat-sink fins for optimal thermal management.

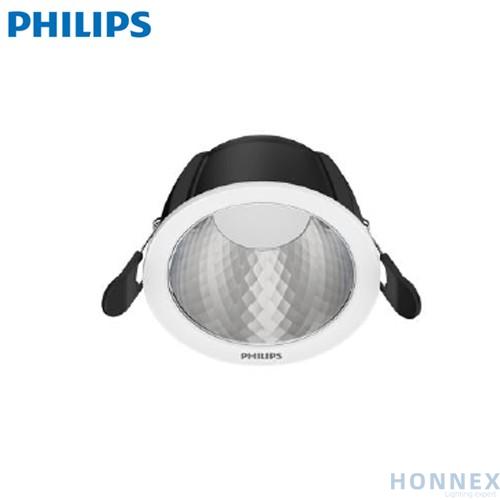

    PHILIPS DN350 front bezel showing diamond-faceted optical cavity and PHILIPS branding
    Diamond-Faceted Optical Cavity — PHILIPS Branded
    Deep-set diamond-faceted reflector cavity with PHILIPS-embossed front bezel delivers UGR < 19 anti-glare performance, crisp cut-off, and a controlled 60° beam.

    Physical Dimensions

    This SKU (D90 / 10W) is highlighted in yellow. All 5 cut-out variants share the same optical and electrical architecture.

    Cut-out Code Power Cut-out Size Product Size Lumen Packing
    D75 7 W Ø 75 mm Ø 82 × 52 mm 680 lm 30 pcs
    D90 10 W Ø 90 mm Ø 96 × 58 mm 980 lm 30 pcs
    D125 12 W Ø 120 – 130 mm Ø 144 × 73 mm 1200 lm 12 pcs
    D150 20 W Ø 145 – 155 mm Ø 170 × 82 mm 2000 lm 12 pcs
    D175 32 W Ø 170 – 180 mm Ø 195 × 89 mm 3200 lm 12 pcs

    Complete Product Lineup

    All DN350N variants in stock. The current SKU is highlighted in yellow.

    DN350N — Complete Product Lineup 6 SKUs
    12NC Description Cut-out Power CCT Lumen
    929004794110 DN350N LED7/WW 7W 220-240V D75 SV CN Ø 75 mm 7W 3000K 680 lm
    929004794210 DN350N LED7/NW 7W 220-240V D75 SV CN Ø 75 mm 7W 4000K 680 lm
    929004794310 DN350N LED7/CW 7W 220-240V D75 SV CN Ø 75 mm 7W 6500K 680 lm
    929004794700 DN350N LED10/WW 10W 220-240V D90 SV CN Ø 90 mm 10W 3000K 980 lm
    929004794810 DN350N LED10/NW 10W 220-240V D90 SV CN Ø 90 mm 10W 4000K 980 lm
    929004794910 DN350N LED10/CW 10W 220-240V D90 SV CN Ø 90 mm 10W 6500K 980 lm

    Also from PHILIPS Indoor Lighting Range

    Related PHILIPS / Signify fixtures stocked at Wenzhou Honnex Trading. Click any product to open its full specification page.

    PHILIPS Deep Recessed LED Spotlight Series RS216
    PHILIPS Deep Recessed LED Spotlight Series RS216
     PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
    PHILIPS Essential SmartBright LED Solar Flood BVC010 Series
     PHILIPS BRP26X SmartBright LED Street Lighting Series
    PHILIPS BRP26X SmartBright LED Street Lighting Series
     PHILIPS WT198C GreenPerform Waterproof G3 Series
    PHILIPS WT198C GreenPerform Waterproof G3 Series
     PHILIPS BY778P GreenPerform Elite Highbay G2 Series
    PHILIPS BY778P GreenPerform Elite Highbay G2 Series
     PHILIPS GreenPerform Trunking G2 LL130X Series
    PHILIPS GreenPerform Trunking G2 LL130X Series
     PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
    PHILIPS BGP150 G2 Essential SmartBright LED Spotlight
     PHILIPS BY518P SE GreenUp Round LED Highbay
    PHILIPS BY518P SE GreenUp Round LED Highbay

    Frequently Asked Questions

    Technical and commercial questions specific to DN350N LED10/WW 10W 220-240V D90 SV CN.

    What ceiling cut-out does the DN350N LED10/WW 10W 220-240V D90 SV CN require?
    This SKU is designed for a Ø 90 mm cut-out. It directly replaces legacy CFL downlights and older recessed fixtures of the same hole size without any ceiling re-work — matching the D90 housing standard used across the PHILIPS DN350 family.
    What is the light output and color temperature of the DN350N LED10/WW 10W 220-240V D90 SV CN?
    This variant delivers 980 lm with a 3000K (Warm White) color temperature at 10W power input. Combined with CRI ≥ 90 and a 60° beam, it provides bright, accurate, glare-free illumination suitable for residential, hospitality, and retail interiors.
    Where can I buy the DN350N LED10/WW 10W 220-240V D90 SV CN and what warranty applies?
    Wenzhou Honnex Trading Co., Ltd. is the authorized PHILIPS lighting distributor in China for the DN350 series. This SKU (12NC 929004794700) ships with original PHILIPS / Signify warranty. For quotation and bulk pricing, contact .

    Request a Quotation for DN350N LED10/WW 10W 220-240V D90 SV CN

    Wenzhou Honnex Trading Co., Ltd. has been an authorized PHILIPS lighting distributor for over 15 years. We provide original PHILIPS / Signify products with full warranty, IES files, technical datasheets, and bulk pricing for projects, distributors, and contractors.
