Description

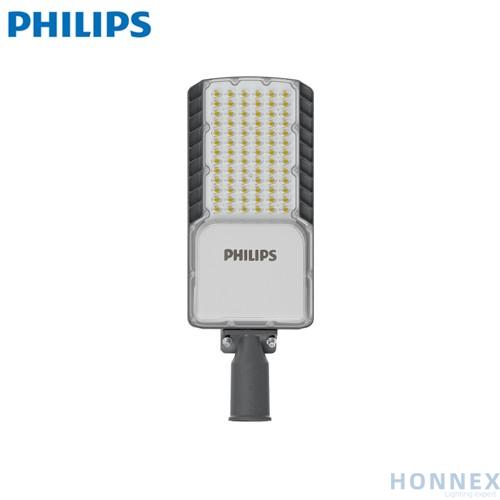

PHILIPS SmartBright LED Street Lighting
PHILIPS BRP262 LED180/CW 100W 220-240V DM0
BRP262 100W LED road lighting luminaire — 18,000 lumens, 5700K (CW) CCT, 180lm/W efficacy, IP66 IK08, DM0 optic. Part of the BRP26X SmartBright Series.
BRP262 100W — 18,000 Lumens
The BRP262 LED180/CW 100W 220-240V DM0 delivers 18,000 lumens at 100W with 5700K (CW) CCT. Part of the BRP26X SmartBright LED Street Lighting family, it features professional DM0 optic, die-cast aluminum housing with 557×221×75mm dimensions, and dual side-entry or post-top mounting for urban and suburban road applications.
12NC: 911401905201
Power: 100W
Flux: 18,000 lm
CCT: 5700K (CW)
Efficacy: 180 lm/W
Optic: DM0
Dimensions: 557×221×75mm
IP/IK: IP66 / IK08
MOQ: 200 pcs
Product Details
- 12NC Ordering Code
- 911401905201
- Description
- BRP262 LED180/CW 100W 220-240V DM0
- Power Consumption
- 100W
- Luminous Flux
- 18,000 lm
- Color Temperature (CCT)
- 5700K (CW)
- System Efficacy
- 180 lm/W
- CRI
- 70 (typ.)
- Light Distribution
- DM0
- Input Voltage
- 220 – 240V AC
- Driver
- Independent, replaceable
- SPD
- 10kV (parallel), replaceable
- Dimming
- Non-dimmable (On/Off)
- Housing
- Die-cast Aluminum
- Lens/Cover
- PC (Polycarbonate)
- IP Rating
- IP66
- IK Rating
- IK08
- Mounting
- Side-entry 48-60mm ±15° / Post-top 48-60mm -10°~+15°
- Dimensions (L×W×H)
- 557×221×75 mm
- Net Weight
- Contact sales for weight
- Lifetime
- 50,000h L70B50 @35°C
- Operating Temp
- -40°C to +50°C
- Certifications
- CB / CE / CQC
- MOQ
- 200 pcs/SKU
- Series
- BRP26X SmartBright Series →
- Product Page URL
- PHILIPS-SmartBright-LED-Street-Lighting-BRP262-LED180-CW-100W-220-240V-DM0-911401905201-p.html
Technical Specifications
| Optical | |
| LED Type | 3030 Local Brand LED (MP3030) |
| Luminous Flux | 18,000 lm |
| System Efficacy | 180 lm/W (typical @4000K) |
| Color Temperature (CCT) | 5700K (CW) |
| Additional CCT Options | 2700K / 5000K (special projects only) |
| CRI | 70 (typ.) |
| Light Distribution | DM0 |
| Electrical | |
| Power Consumption | 100W |
| Input Voltage | 220 – 240V AC |
| Driver Type | Independent driver (without casing), replaceable |
| Surge Protection (SPD) | 10kV (in parallel), independent & replaceable |
| Dimming | Non-dimmable |
| Control Interface | On/Off |
| System Interface | N/A |
| Mechanical | |
| Housing Material | Die-cast Aluminum |
| Lens / Cover | PC (Polycarbonate) |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Side-Entry Mounting | 48 – 60mm pole, adjustable ±15° |
| Post-Top Mounting | 48 – 60mm pole, adjustable -10° to +15° |
| Pre-Wired Cable | 0.4m flying cable |
| Dimensions (L×W×H) | 557×221×75 mm |
| Reliability & Approvals | |
| Lifetime | 50,000 hrs L70B50 @ 35°C Outdoor |
| Operating Temperature | -40°C to +50°C |
| Vibration Resistance | 3G at resonance points |
| Wind Resistance | Category 15 Typhoon (52m/s) |
| Maintenance | Replaceable driver & SPD; housing requires tools |
| Certifications | CB / CE / CQC |
| MOQ | 200 pcs |
Real-World Applications
Urban Tree-Lined Boulevard
BRP262 100W for city streets
Versatile Application Coverage
Residential / Parking / Expressway / Pathway
Expressway Interchange
BRP262 100W for high-speed roads
Side-Entry Mounting Detail
±15° adjustable spigot for 48–60mm pole
Physical Dimensions
Dimensions for the BRP262 100W model (unit: mm). BRP26X uses four housing sizes matched to power range. The current model’s housing is highlighted below.
| Model | Power Range | Length A (mm) | Width B (mm) | Depth C (mm) |
|---|---|---|---|---|
| BRP261 | 30W / 40W / 50W | 476 | 175 | 75 |
| BRP262 | 70W / 80W / 100W | 557 | 221 | 75 |
| BRP263 | 120W / 150W | 651 | 241 | 75 |
| BRP264 / BRP265 | 180W / 200W / 220W / 250W | 751 | 276 | 75 |
Luminaire with 0.4M cable(s). Standard mounting spigot ∅48–60mm, compatible with both side-entry (±15° adjustable) and post-top (-10°~+15°) configurations.
Complete BRP26X Product Lineup
| 12NC | Description | Flux (lm) | Power (W) | CCT |
|---|---|---|---|---|
| BRP261 — 30W / 40W / 50W | ||||
| 911401905183 | BRP261 LED48/WW 30W 220-240V DM0 → | 4,800 | 30W | 3000K (WW) |
| 911401905184 | BRP261 LED51/NW 30W 220-240V DM0 → | 5,100 | 30W | 4000K (NW) |
| 911401905185 | BRP261 LED54/CW 30W 220-240V DM0 → | 5,400 | 30W | 5700K (CW) |
| 911401905186 | BRP261 LED64/WW 40W 220-240V DM0 → | 6,400 | 40W | 3000K (WW) |
| 911401905187 | BRP261 LED68/NW 40W 220-240V DM0 → | 6,800 | 40W | 4000K (NW) |
| 911401905188 | BRP261 LED72/CW 40W 220-240V DM0 → | 7,200 | 40W | 5700K (CW) |
| 911401905189 | BRP261 LED80/WW 50W 220-240V DM0 → | 8,000 | 50W | 3000K (WW) |
| 911401905190 | BRP261 LED85/NW 50W 220-240V DM0 → | 8,500 | 50W | 4000K (NW) |
| 911401905191 | BRP261 LED90/CW 50W 220-240V DM0 → | 9,000 | 50W | 5700K (CW) |
| BRP262 — 70W / 80W / 100W | ||||
| 911401905192 | BRP262 LED112/WW 70W 220-240V DM0 → | 11,200 | 70W | 3000K (WW) |
| 911401905193 | BRP262 LED119/NW 70W 220-240V DM0 → | 11,900 | 70W | 4000K (NW) |
| 911401905194 | BRP262 LED126/CW 70W 220-240V DM0 → | 12,600 | 70W | 5700K (CW) |
| 911401905195 | BRP262 LED128/WW 80W 220-240V DM0 → | 12,800 | 80W | 3000K (WW) |
| 911401905196 | BRP262 LED136/NW 80W 220-240V DM0 → | 13,600 | 80W | 4000K (NW) |
| 911401905197 | BRP262 LED144/CW 80W 220-240V DM0 → | 14,400 | 80W | 5700K (CW) |
| 911401905198 | BRP262 LED160/WW 100W 220-240V DM0 → | 16,000 | 100W | 3000K (WW) |
| 911401905199 | BRP262 LED170/NW 100W 220-240V DM0 → | 17,000 | 100W | 4000K (NW) |
| 911401905201 | BRP262 LED180/CW 100W 220-240V DM0 → | 18,000 | 100W | 5700K (CW) |
| BRP263 — 120W / 150W | ||||
| 911401905202 | BRP263 LED192/WW 120W 220-240V DM0 → | 19,200 | 120W | 3000K (WW) |
| 911401905203 | BRP263 LED204/NW 120W 220-240V DM0 → | 20,400 | 120W | 4000K (NW) |
| 911401905204 | BRP263 LED216/CW 120W 220-240V DM0 → | 21,600 | 120W | 5700K (CW) |
| 911401905205 | BRP263 LED240/WW 150W 220-240V DM0 → | 24,000 | 150W | 3000K (WW) |
| 911401905206 | BRP263 LED255/NW 150W 220-240V DM0 → | 25,500 | 150W | 4000K (NW) |
| 911401905207 | BRP263 LED270/CW 150W 220-240V DM0 → | 27,000 | 150W | 5700K (CW) |
| BRP264 — 180W / 200W | ||||
| 911401905208 | BRP264 LED288/WW 180W 220-240V DM0 → | 28,800 | 180W | 3000K (WW) |
| 911401905209 | BRP264 LED306/NW 180W 220-240V DM0 → | 30,600 | 180W | 4000K (NW) |
| 911401905210 | BRP264 LED324/CW 180W 220-240V DM0 → | 32,400 | 180W | 5700K (CW) |
| 911401905211 | BRP264 LED320/WW 200W 220-240V DM0 → | 32,000 | 200W | 3000K (WW) |
| 911401905212 | BRP264 LED340/NW 200W 220-240V DM0 → | 34,000 | 200W | 4000K (NW) |
| 911401905213 | BRP264 LED360/CW 200W 220-240V DM0 → | 36,000 | 200W | 5700K (CW) |
| BRP265 — 220W / 250W | ||||
| 911401905214 | BRP265 LED352/WW 220W 220-240V DM0 → | 35,200 | 220W | 3000K (WW) |
| 911401905215 | BRP265 LED374/NW 220W 220-240V DM0 → | 37,400 | 220W | 4000K (NW) |
| 911401905216 | BRP265 LED396/CW 220W 220-240V DM0 → | 39,600 | 220W | 5700K (CW) |
| 911401905217 | BRP265 LED400/WW 250W 220-240V DM0 → | 40,000 | 250W | 3000K (WW) |
| 911401905218 | BRP265 LED425/NW 250W 220-240V DM0 → | 42,500 | 250W | 4000K (NW) |
| 911401905219 | BRP265 LED450/CW 250W 220-240V DM0 → | 45,000 | 250W | 5700K (CW) |
Also from PHILIPS Lighting Range
Frequently Asked Questions
What is the MOQ for PHILIPS BRP262 LED180/CW 100W 220-240V DM0?
The minimum order quantity for 12NC 911401905201 is 200 units. This applies to all BRP26X series SKUs. For bulk inquiries, custom CCT requests, or project-based pricing, please contact our sales team at sales@honnexlighting.com.
What applications is the BRP262 100W suitable for?
The BRP262 100W delivers 18,000 lumens at 5700K CCT, making it ideal for urban roads, residential streets, parking lots, suburban roads, and connecting roadways. With IP66 weather protection and die-cast aluminum construction, it performs reliably in all outdoor conditions.
Is the BRP26X driver and SPD field-replaceable?
Yes. The BRP262 features an independent driver (without casing) and an independent 10kV SPD in parallel configuration. Both components are field-replaceable, reducing long-term maintenance costs. The luminaire housing is sealed and requires tools to open.
