Description

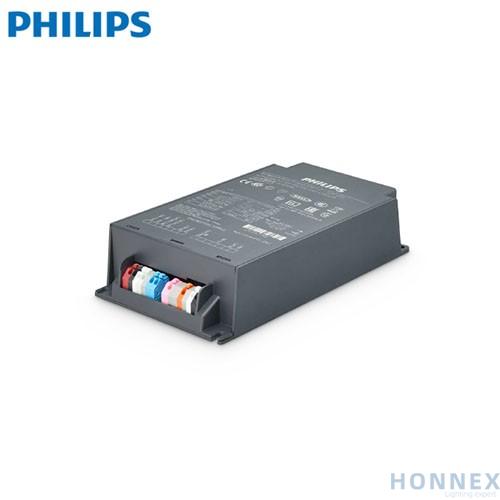

PHILIPS Xitanium FULL Prog LED Xtreme drivers Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt 929002852206
12NC:929002852206
Nominal input frequency:50-60Hz
Control method:AmpDim, Coded Mains, DALI, Dynadimmer,
LineSwitch 3-step, LineSwitch single-step
Pieces per box:9
Xitanium FULL Prog LED Xtreme drivers Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt 929002852206
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime.
In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance
Product data
Automatic Restart:YesSuitable for fixtures with protection class : I and II
Rated input power:240W
Net Weight (Piece) 0.975 kg
Product List
929003458806
Xi FP 40W 0.3-1.0A SNLDAE 230V S175 sXt
929003458306
Xi FP 75W 0.2-0.7A SNLDAE 230V S240 sXt
929003458506
Xi FP 150W 0.3-1.0A SNLDAE 230V S240 sXt
929001644206
Xi FP 150W 0.2-0.7A SNLDAE 230V S240 SXT
929002165306
Xi FP 40W 0.3-1.0A SNLDAE 230V C123 sXt
929002872906
Xi FP 75W 0.3-1.0A SNLDAE 230V C133 sXt
929002873206
Xi FP 110W 0.3-1.0A SNLDAE 230V C133 SXT
929002875006
Xi FP 165W 0.3-1.0A SNLDAE 230V C170 sXt
929002852206
Xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt
929003409706
Xi FP 330W 0.2-0.7A SNDAE 230V C240 sXt
