  • PHILIPS Fortimo High Bay Module 24KLM 857 929001432780

PHILIPS Fortimo High Bay Module 24KLM 857 929001432780

  • Product Item:929001432780
  • Initial luminous flux (system flux): 24000lm​
  • Color temperature: 5700K
  • Useful Life (Nom): 50000H
  • Power consumption: 165W
  • PHILIPS LED Module , Fortimo High Bay Module
    Inquiry Send Email

    Description

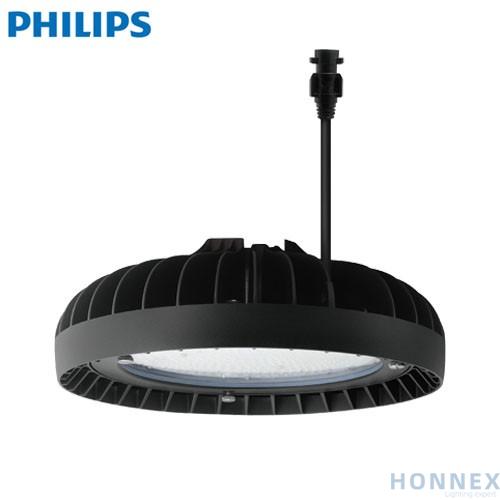

    PHILIPS Fortimo High Bay Module 24KLM 857 929001432780










    Fortimo High Bay Module 24KLM 857

    Fortimo High Bay is an integrated module solution with IP65 protection, excellent

    optical and heat management that offers high energy efficacy and high quality of light.

    The Fortimo High bay solution is designed to enable LED lighting in Industry (high-bay)

    applications - warehouses, factories, large-format retail stores. A range of compatible IP67

    Xitanium drivers complement the High Bay solution in order to further differentiate on efficacy

    and lifetime under extreme temperature conditions. This High Bay portfolio is suitable to replace

    similar solutions using conventional 100W, 150W, 250W and 400W.




    Product data

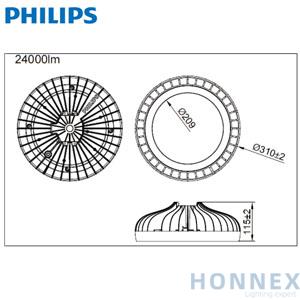

    Overall length: 271 mm

    Overall width: 271 mm

    Overall height: 110 mm

    CRI: 80

    Color: Black

    Dimmable: Yes

    Forward voltage: 157.0 V

    Color consistency: 6 SDCM

    Ingress protection code: IP65 [ Dust penetration-protected, jetproof]

    Mech. impact protection code: IK07 [ 2 J reinforced]

    Initial luminous flux (system flux): 10000 lm






    Remarks

    PHILIPS Fortimo High Bay Module :

    PHILIPS Fortimo High Bay Module 10KLM 840 929001432080

    PHILIPS Fortimo High Bay Module 15KLM 840 929001432180

    PHILIPS Fortimo High Bay Module 20KLM 840 929001432280

    PHILIPS Fortimo High Bay Module 10KLM 857 929001432480

    PHILIPS Fortimo High Bay Module 15KLM 857 929001432580

    PHILIPS Fortimo High Bay Module 20KLM 857 929001432680

    PHILIPS Fortimo High Bay Module 24KLM 857 929001432780
