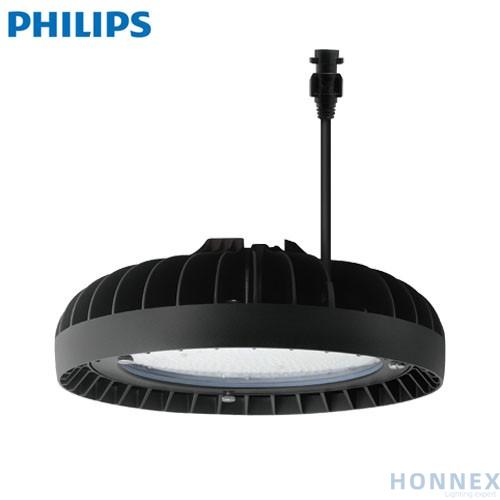

PHILIPS Fortimo High Bay Module 15KLM 840 929001432180

Fortimo High Bay Module 15KLM 840

Fortimo High Bay is an integrated module solution with IP65 protection, excellent

optical and heat management that offers high energy efficacy and high quality of light.

The Fortimo High bay solution is designed to enable LED lighting in Industry (high-bay)

applications - warehouses, factories, large-format retail stores. A range of compatible IP67

Xitanium drivers complement the High Bay solution in order to further differentiate on efficacy

and lifetime under extreme temperature conditions. This High Bay portfolio is suitable to replace

similar solutions using conventional 100W, 150W, 250W and 400W.

Product data

Overall length: 271 mm

Overall width: 271 mm

Overall height: 110 mm

CRI: 80

Color: Black

Dimmable: Yes

Forward voltage: 95.0 V

Color consistency: 6 SDCM

Ingress protection code: IP65 [ Dust penetration-protected, jetproof]

Mech. impact protection code: IK07 [ 2 J reinforced]

Initial luminous flux (system flux): 15000 lm


Remarks

PHILIPS Fortimo High Bay Module :

PHILIPS Fortimo High Bay Module 10KLM 840 929001432080

PHILIPS Fortimo High Bay Module 15KLM 840 929001432180

PHILIPS Fortimo High Bay Module 20KLM 840 929001432280

PHILIPS Fortimo High Bay Module 10KLM 857 929001432480

PHILIPS Fortimo High Bay Module 15KLM 857 929001432580

PHILIPS Fortimo High Bay Module 20KLM 857 929001432680

PHILIPS Fortimo High Bay Module 24KLM 857 929001432780
