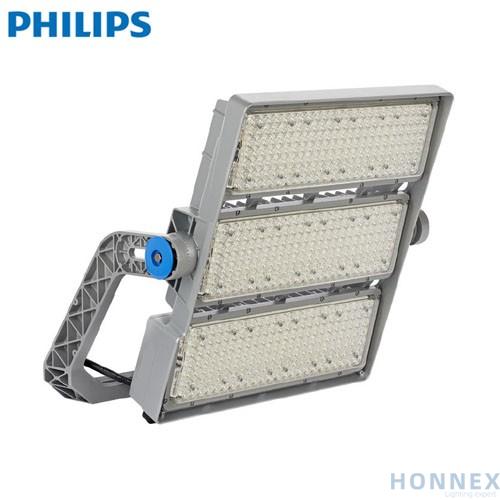

PHILIPS BVP428 C LED1480/957 1340W S8 BV 911401614007

BVP428 C LED1480/957 1340W S8 BV

The Philips ArenaVision LED floodlighting system is an innovative LED

pitchlightingsolution supporting the latest TV broadcasting standards.

Designed exclusively forsports and multi-purpose venues, ArenaVision LED

offers outstanding light quality,effective thermal management, and long lifetime. ;

When combined with controlapplications such as the InteractSports lighting management

system, ArenaVisionLED can simplify the delivery of the right illumination by scheduling or

through realtimeadjustments and can be used to create customized light shows before, during

and after the main event.;To ensure optimized use for both indoor and outdoorapplications,

the floodlight range includes two single piece pressure die cast housingversions, hosting 2 and

3 LED engines respectively. These versions also function withan external driver box – separate

for use at a distance from the floodlight (BVversion), or pre-fixed onto the mounting bracket of

the floodlight (HGB version). Thisexternal driver box ensures ease of installation and lower initial cost.

Product data

Overall length: 737 mm

Overall width: 695 mm

Overall height: 434 mm

Color: Aluminum and RAL

Ingress protection code: IP66

Mech. impact protection code: IK08

Ambient temperature range: -40 to +50 °C

Initial LED luminaire efficacy: 110 lm/W

Net Weight (Piece): 31.600 kg


Remarks

PHILIPS BVP428 :

PHILIPS BVP428 C LED1480/957 1340W S8 BV 911401614007

PHILIPS BVP428 C LED1480/957 1340W S7 BV 911401613907

PHILIPS BVP428 C LED1480/957 1340W S6 BV 911401613807

PHILIPS BVP428 C LED1480/957 1340W S5 BV 911401613707

PHILIPS BVP428 C LED1480/957 1340W S4 BV 911401613607

PHILIPS BVP428 C LED1480/957 1340W S3 BV 911401613507

PHILIPS BVP428 C LED1480/957 1340W S2 BV 911401613407
