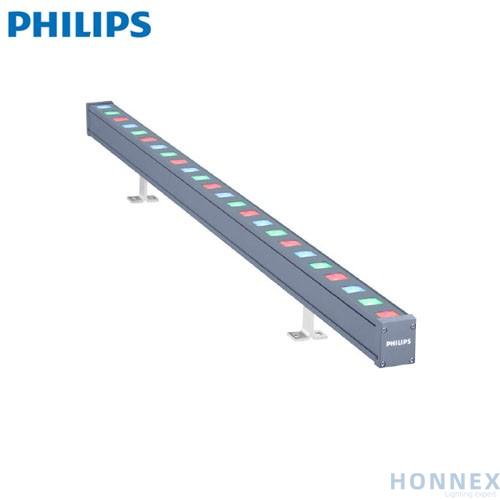

PHILIPS BCP382 12LED RGB 24V A2 L50 DMX 911401739082

BCP382 12LED RGB 24V A2 L50 DMX

UniStrip G4 is a surface mounted, exterior-rated LED luminaire that is designed for

façade and outdoor architectural lighting applications.;One family that fits all your needs,

wall washing, grazing and also linear flood lighting.;The robust mechanical and unique

optical designs make it ideal for illuminating buildings facades, bridges, overpasses and

any application that requires a linear lighting solution.;Available in white, monochromatic

colors, RGB, RGBW and tunable white and DMX control option available with up to 8 pixels

(8IDs) to give architects and designers the freedom to explore a wide range of concepts

and design with no limitations.

Product data

Overall length: 500 mm

Overall width: 38 mm

Overall height: 47 mm

Color: Dark gray

Control interface Dynamic: DMX

Ingress protection code: IP66

Mech. impact protection code: IK06

Ambient temperature range: -40 to +50 °C

Initial LED luminaire efficacy: 38 lm/W

Luminaire light beam spread: 16° x 35°

Net Weight (Piece): 0.899 kg


Remarks

PHILIPS BCP382 :

PHILIPS BCP382 12LED RGB 24V A2 L50 DMX 911401739082

PHILIPS BCP382 12LED RGB 24V 40 L50 DMX 911401739092

PHILIPS BCP382 12LED RGBNW 24V A4 L50 DMX 911401739102

PHILIPS BCP382 12LED RGBNW 24V 30 L50 DMX 911401739112

PHILIPS BCP382 18LED 27K 24V A2 L50 911401739122

PHILIPS BCP382 18LED 27K 24V A2 L50 DMX 911401739132

PHILIPS BCP382 18LED 27K 24V 17 L50 911401739142

PHILIPS BCP382 18LED 27K 24V 17 L50 DMX 911401739152

PHILIPS BCP382 18LED 27K 24V 40 L50 911401739162

PHILIPS BCP382 18LED 27K 24V 40 L50 DMX 911401739172

PHILIPS BCP382 18LED 30K 24V A2 L50 911401739182

PHILIPS BCP382 18LED 30K 24V A2 L50 DMX 911401739192

PHILIPS BCP382 18LED 30K 24V 17 L50 911401739202

PHILIPS BCP382 18LED 30K 24V 17 L50 DMX 911401739212

PHILIPS BCP382 18LED 30K 24V 40 L50 911401739222

PHILIPS BCP382 18LED 30K 24V 40 L50 DMX 911401739232

PHILIPS BCP382 18LED 40K 24V A2 L50 911401739242

PHILIPS BCP382 18LED 40K 24V A2 L50 DMX 911401739252

PHILIPS BCP382 18LED 40K 24V 17 L50 911401739262

PHILIPS BCP382 18LED 40K 24V 17 L50 DMX 911401739272

PHILIPS BCP382 18LED 40K 24V 40 L50 911401739282

PHILIPS BCP382 18LED 40K 24V 40 L50 DMX 911401739292

PHILIPS BCP382 24LED RGB 24V A2 L100 DMX 911401739302

PHILIPS BCP382 24LED RGB 24V 40 L100 DMX 911401739312

PHILIPS BCP382 24LED RGBNW 24V A4 L100 DMX 911401739322

PHILIPS BCP382 24LED RGBNW 24V 30 L100 DMX 911401739332

PHILIPS BCP382 36LED 27K 24V A2 L100 911401739342

PHILIPS BCP382 36LED 27K 24V A2 L100 DMX 911401739352

PHILIPS BCP382 36LED 27K 24V 17 L100 911401739362

PHILIPS BCP382 36LED 27K 24V 17 L100 DMX 911401739372

PHILIPS BCP382 36LED 27K 24V 40 L100 911401739382

PHILIPS BCP382 36LED 27K 24V 40 L100 DMX 911401739392

PHILIPS BCP382 36LED 30K 24V A2 L100 911401739402

PHILIPS BCP382 36LED 30K 24V A2 L100 DMX 911401739412

PHILIPS BCP382 36LED 30K 24V 17 L100 911401739422

PHILIPS BCP382 36LED 30K 24V 17 L100 DMX 911401739432

PHILIPS BCP382 36LED 30K 24V 40 L100 911401739442

PHILIPS BCP382 36LED 30K 24V 40 L100 DMX 911401739452

PHILIPS BCP382 36LED 40K 24V A2 L100 911401739462

PHILIPS BCP382 36LED 40K 24V A2 L100 DMX 911401739472

PHILIPS BCP382 36LED 40K 24V 17 L100 911401739482

PHILIPS BCP382 36LED 40K 24V 17 L100 DMX 911401739492

PHILIPS BCP382 36LED 40K 24V 40 L100 911401739502

PHILIPS BCP382 36LED 40K 24V 40 L100 DMX 911401739512

PHILIPS BCP382 6LED RGB 24V A2 L30 DMX 911401739522

PHILIPS BCP382 6LED RGB 24V 40 L30 DMX 911401739532

PHILIPS BCP382 6LED RGBNW 24V A4 L30 DMX 911401739542

PHILIPS BCP382 6LED RGBNW 24V 30 L30 DMX 911401739552

PHILIPS BCP382 9LED 27K 24V A2 L30 911401739562

PHILIPS BCP382 9LED 27K 24V A2 L30 DMX 911401739572

PHILIPS BCP382 9LED 27K 24V 17 L30 911401739582

PHILIPS BCP382 9LED 27K 24V 17 L30 DMX 911401739592

PHILIPS BCP382 9LED 27K 24V 40 L30 911401739602

PHILIPS BCP382 9LED 27K 24V 40 L30 DMX 911401739612

PHILIPS BCP382 9LED 30K 24V A2 L30 911401739622

PHILIPS BCP382 9LED 30K 24V A2 L30 DMX 911401739632

PHILIPS BCP382 9LED 30K 24V 17 L30 911401739642

PHILIPS BCP382 9LED 30K 24V 17 L30 DMX 911401739652

PHILIPS BCP382 9LED 30K 24V 40 L30 911401739662

PHILIPS BCP382 9LED 30K 24V 40 L30 DMX 911401739672

PHILIPS BCP382 9LED 40K 24V A2 L30 911401739682

PHILIPS BCP382 9LED 40K 24V A2 L30 DMX 911401739692

PHILIPS BCP382 9LED 40K 24V 17 L30 911401739702

PHILIPS BCP382 9LED 40K 24V 17 L30 DMX 911401739712

PHILIPS BCP382 9LED 40K 24V 40 L30 911401739722

PHILIPS BCP382 9LED 40K 24V 40 L30 DMX 911401739732
